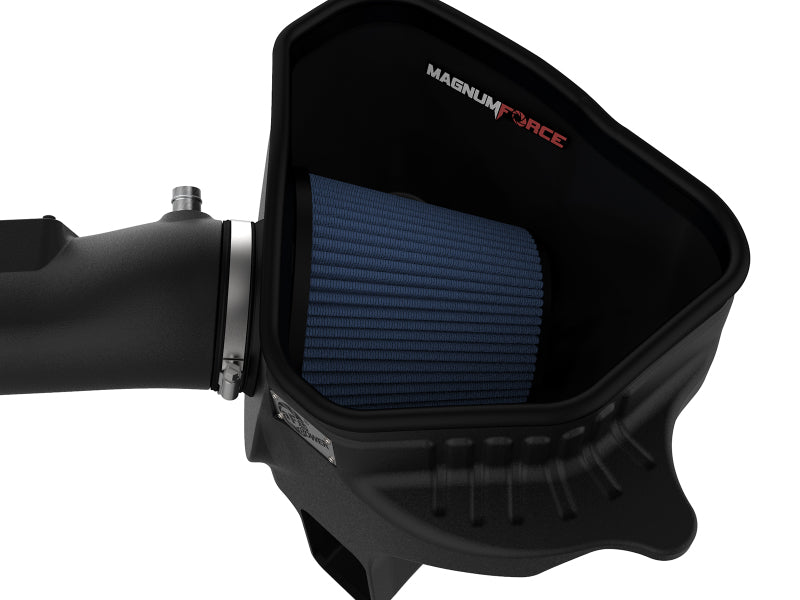

aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, black intake with blue filter and airbox, angled view

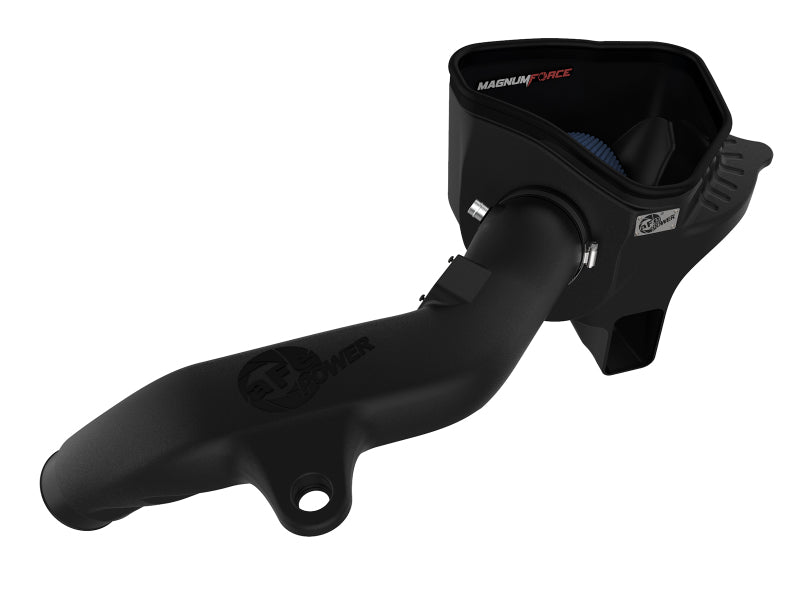

aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, black intake with blue filter and airbox, angled view, alternate shot

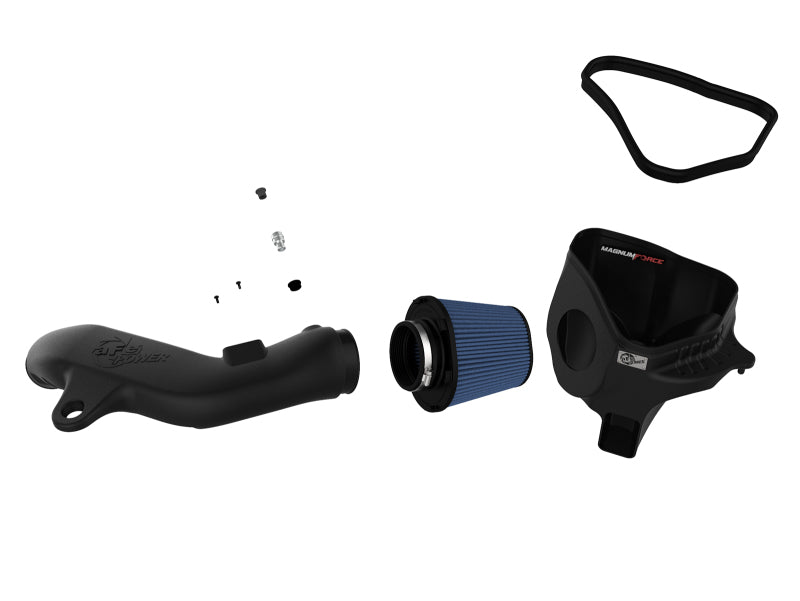

aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, black intake pieces, filter and gasket laid out

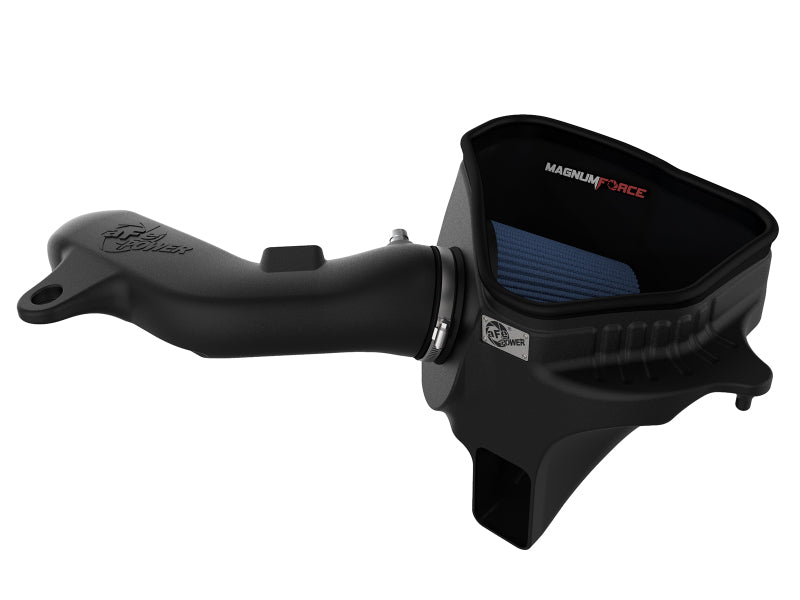

aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, black airbox with blue filter, angled view

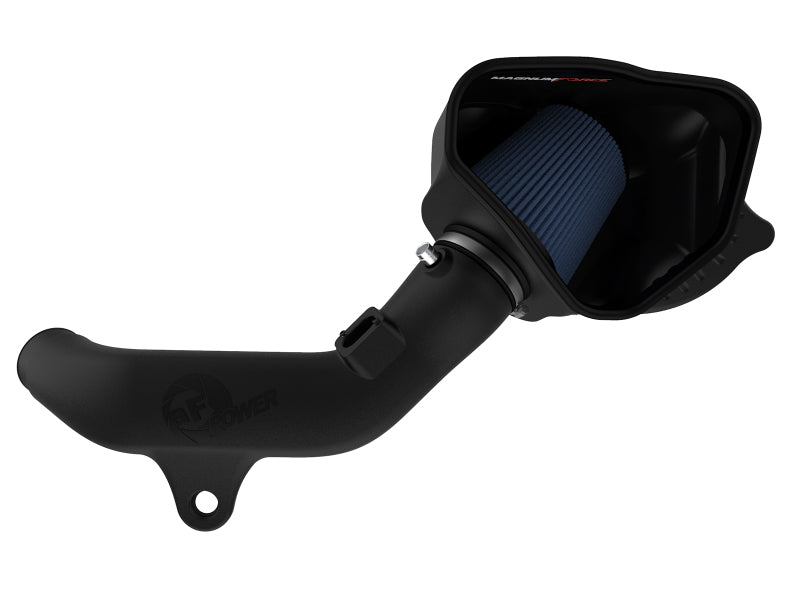

aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, black intake with blue filter and airbox, additional catalog shot

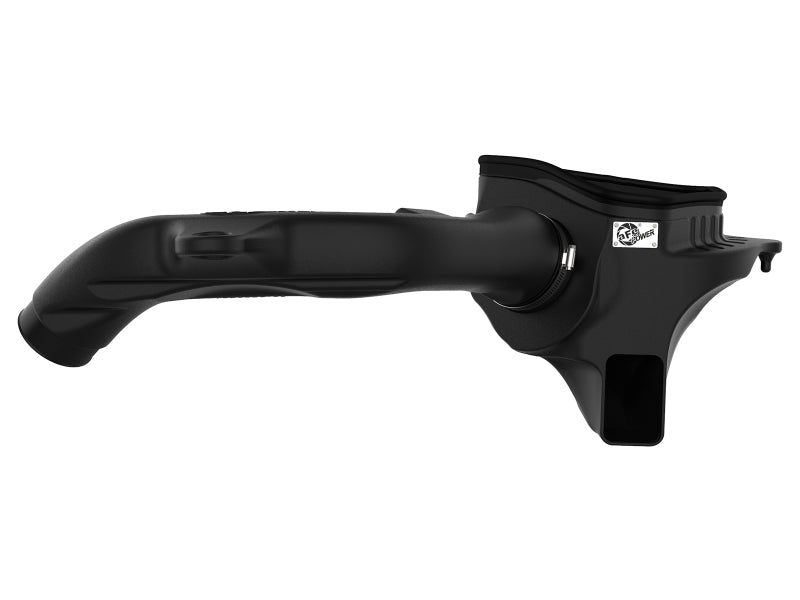

aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, black intake tube with airbox, angled view
aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, black intake with blue filter and airbox, angled view
aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, black intake with blue filter and airbox, angled view, alternate shot
aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, black intake pieces, filter and gasket laid out
aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, black airbox with blue filter, angled view
aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, black intake with blue filter and airbox, additional catalog shot
aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, black intake tube with airbox, angled view

aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System - BMW 335i / 435i / M235i / M2 2012-2018

aFe SKU: AFE54-13033R
Price
29% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandaFe
SKUAFE54-13033R
GTIN / UPC802959545454
Manufacturer Part Number54-13033R

Product Information

aFe Magnum FORCE Stage-2 intake system with an open-element XLPE housing that pulls in air from the front of the car and keeps warm engine air away from the filter. The 7 in tall 360 degree radial flow filter has a 4 in flange and pre-oiled Pro 5R media with five layers of progressively finer cotton gauze, connected through a dyno-tuned, heat soak resistant XLPE intake tube. It flows 650 CFM at 7 in H2O, 44% more than the factory intake, and is rated at up to 11 hp and 21 lb-ft over stock. It installs at the factory mounting points with no cutting or modifications.

Specifications

Type Cold Air Intake System
Series Magnum FORCE Stage-2
Filter Media Pro 5R, five-layer oiled cotton gauze, washable and reusable
Housing Open-element one-piece XLPE housing drawing air from the front of the car
Filter 7 in tall 360 degree radial flow, 4 in flange
Gains +11 hp, +21 lb-ft; 650 CFM @ 7 in H2O, 44% more airflow than the factory intake
What's in the Box
  • Pro 5R filter
  • Housing
  • Intake tube
  • Vacuum line fitting and cap
  • Grommet
  • Trim seal
  • Torx screws and a T20 bit
Install Direct fit at the factory mounting points, no cutting or modifications
Replacement Filter 24-90113 (Pro 5R)
Engine L6-3.0L (t) N55 Engine
Filter Color Blue
Hardware Included Yes
Air Flow Gain 44 Percent
Air Box Type Open
Heat Shield Included Yes
Tune Required No
Warranty 2 years on components (original owner)
Part Number 54-13033R

This part fits:

Year Make Model Submodel
2012-2015 BMW 335i Base
2013-2015 BMW 335i xDrive Base
2014-2016 BMW 435i Base
2015-2016 BMW 435i Gran Coupe Base
2014-2016 BMW 435i xDrive Base
2015-2016 BMW 435i xDrive Gran Coupe Base
2016-2018 BMW M2 Base
2014-2016 BMW M235i Base
2015-2016 BMW M235i xDrive Base

Documents: Installation Instructions (PDF) | Airflow Chart | Dyno Chart | Filter Cleaning Instructions

Which cars does it fit?

  • The N55 3.0L turbo 2012-2015 335i, 2014-2016 435i and M235i and 2016-2018 M2, including the xDrive and Gran Coupe versions listed above.

What comes in the box?

  • The Pro 5R filter, the housing and intake tube, a vacuum line fitting and cap, a grommet, trim seal, Torx screws and a T20 bit.

How do I service the filter?

  • The Pro 5R filter is washable and reusable and is re-oiled after cleaning; cleaning instructions are linked under Documents. The replacement filter is part number 24-90113.

Is there an oil-free version?

  • Yes. The same kit with a Pro DRY S filter is part number 54-13033D.
