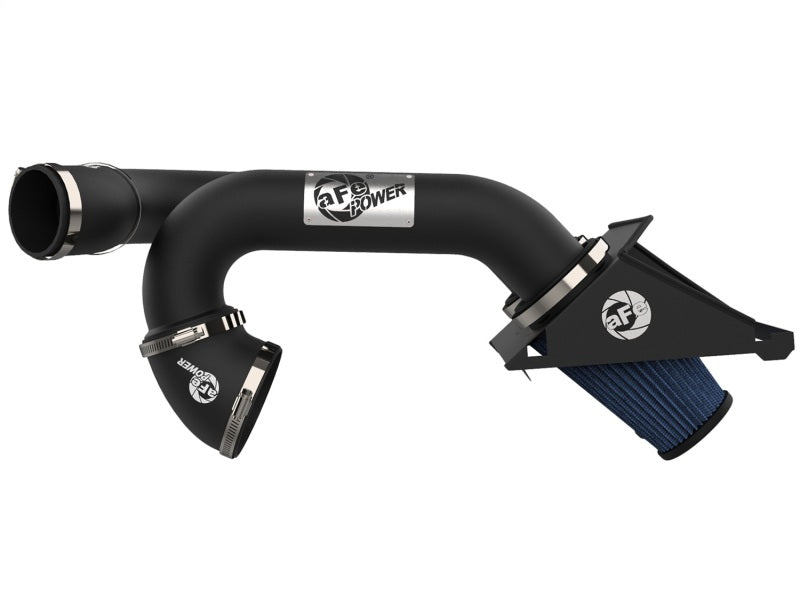

aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, dual tubes with two blue filters

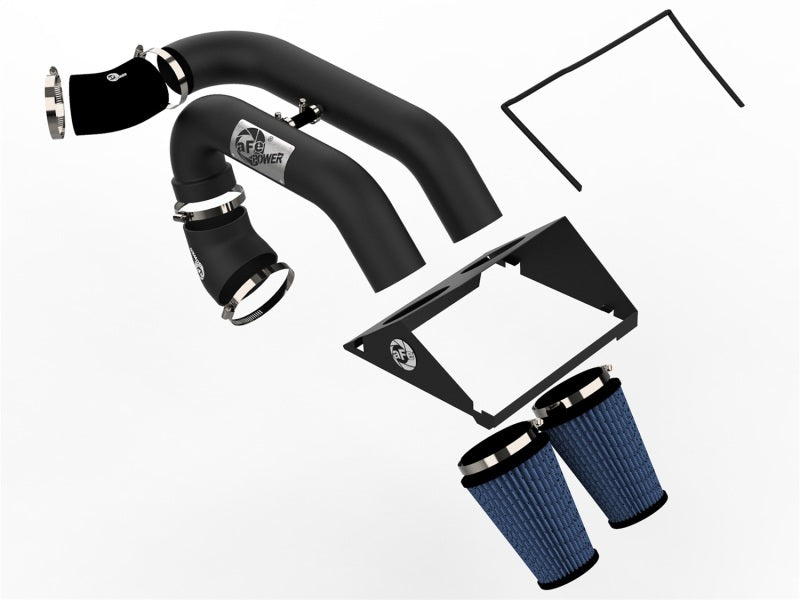

aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, dual tubes, filters and bracket, exploded view

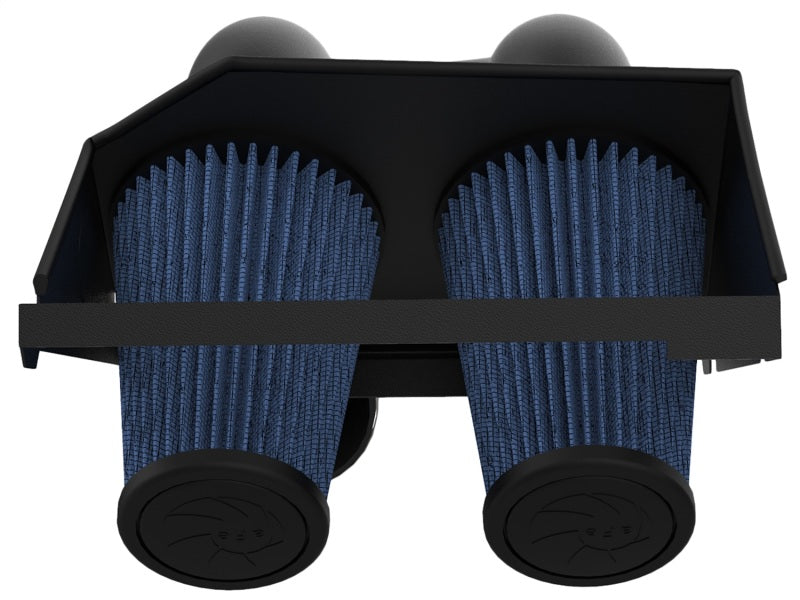

aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, two blue filters in tray, top view

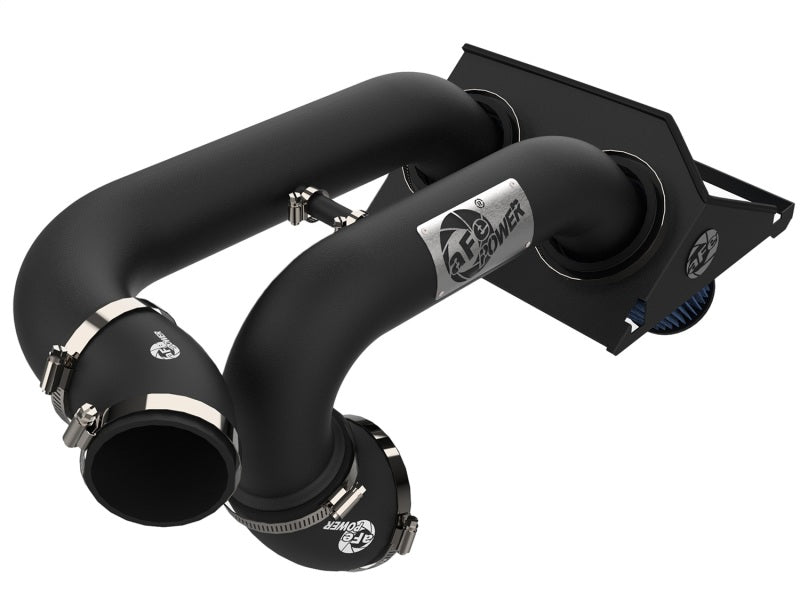

aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, dual tubes and airbox, angled view

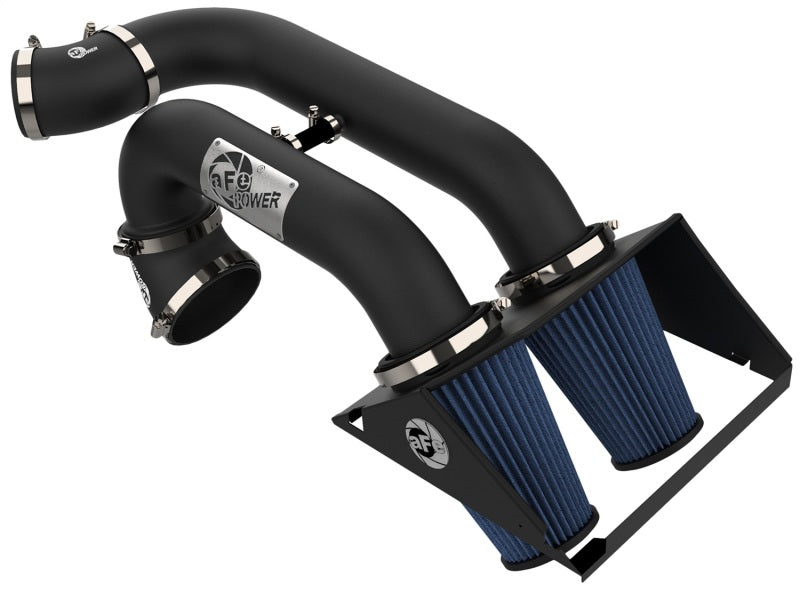

aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, dual tubes, angled view

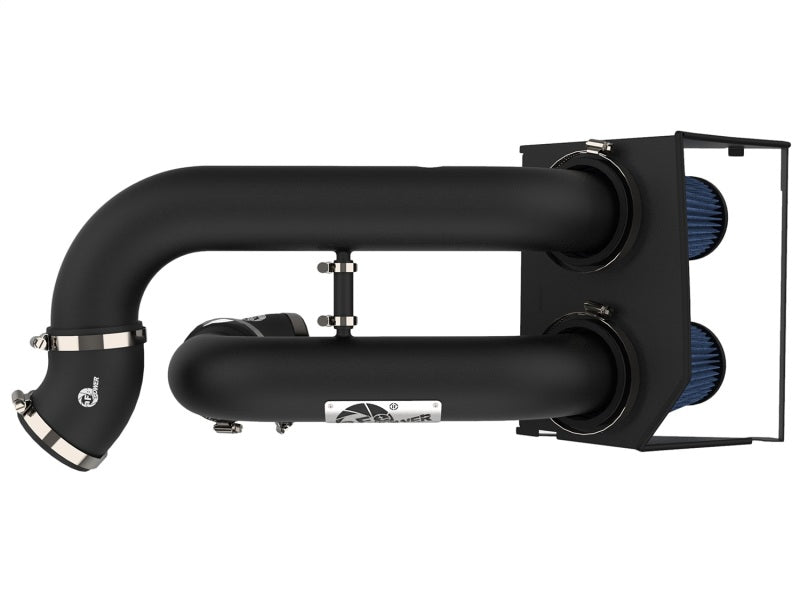

aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, dual tubes and filter housing, side view
aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, dual tubes with two blue filters
aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, dual tubes, filters and bracket, exploded view
aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, two blue filters in tray, top view
aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, dual tubes and airbox, angled view
aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, dual tubes, angled view
aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, dual tubes and filter housing, side view

aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System - Ford F-150 2.7L / 3.5L EcoBoost 2015-2026

aFe SKU: AFE54-22642-B
Price
29% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandaFe
SKUAFE54-22642-B
GTIN / UPC802959506899
Manufacturer Part Number54-22642-B

Product Information

The aFe Magnum FORCE Stage-2 intake replaces the factory intake tubes on the EcoBoost F-150 with dual 3 in mandrel-bent, wrinkle black powder-coated aluminum tubes. A powder-coated one-piece 18 gauge steel housing uses the stock mounting locations and holds two 7 in tall radial flow Pro 5R filters with five layers of oiled cotton gauze that can be washed and reused. The system flows 900 CFM at 7 in H2O, 71% more than the factory intake, and is rated at up to +5 hp and +6 lb-ft. It is a direct bolt-on with no cutting or drilling of factory parts.

Specifications

Type Cold Air Intake System
Series Magnum FORCE Stage-2
Filter Media Pro 5R, five-layer oiled cotton gauze, washable and reusable
Filter Two 7 in tall radial flow filters
Intake Tube Dual 3 in mandrel-bent aluminum, wrinkle black powder coat
Housing Powder-coated one-piece 18 gauge steel, stock mounting locations
Gains +5 hp, +6 lb-ft; 900 CFM @ 7 in H2O, 71% more than the factory intake
Fitment Notes 2.7L twin-turbo EcoBoost 2015-2024 and 3.5L twin-turbo EcoBoost 2015-2016 only; the vent insert is used on the 3.5L only; 2025-2026 rows not confirmed
What's in the Box
  • Two Pro 5R filters (24-30003)
  • Two intake tubes
  • Housing
  • Two silicone elbow couplings
  • Clamps
  • Vent insert
  • Fuel hose
  • Trim seal
Install Direct bolt-on, no cutting or drilling of factory parts
Replacement Filter 24-30003 (Pro 5R)
Engine V6-2.7L (tt) EcoBoost
Hardware Included Yes
Air Flow Gain 71 Percent
Pre-Filter 28-10213
Air Box Type Open
Heat Shield Included Yes
Tune Required No
Warranty 2 years on components (original owner)
Part Number 54-22642-B

This part fits:

Year Make Model Submodel
2015-2016 Ford F-150 King Ranch
2015-2023 Ford F-150 Lariat
2016 Ford F-150 Limited
2015-2016 Ford F-150 Platinum
2016 Ford F-150 SSV
2024-2026 Ford F-150 STX
2015-2026 Ford F-150 XL
2015-2026 Ford F-150 XLT

Documents: Installation Instructions (PDF)

Which F-150 engines does this intake fit?

  • The 2.7L twin-turbo EcoBoost V6 from 2015 to 2024 and the 3.5L twin-turbo EcoBoost V6 in 2015-2016.

Does it fit the 5.0L or 3.3L F-150?

  • No. It is built for the EcoBoost engines listed above only.

How much does it flow?

  • 900 CFM at 7 in H2O, 71% more than the factory intake, with gains of up to +5 hp and +6 lb-ft.

What replacement filters does it use?

  • The kit uses two Pro 5R filters, part number 24-30003.
