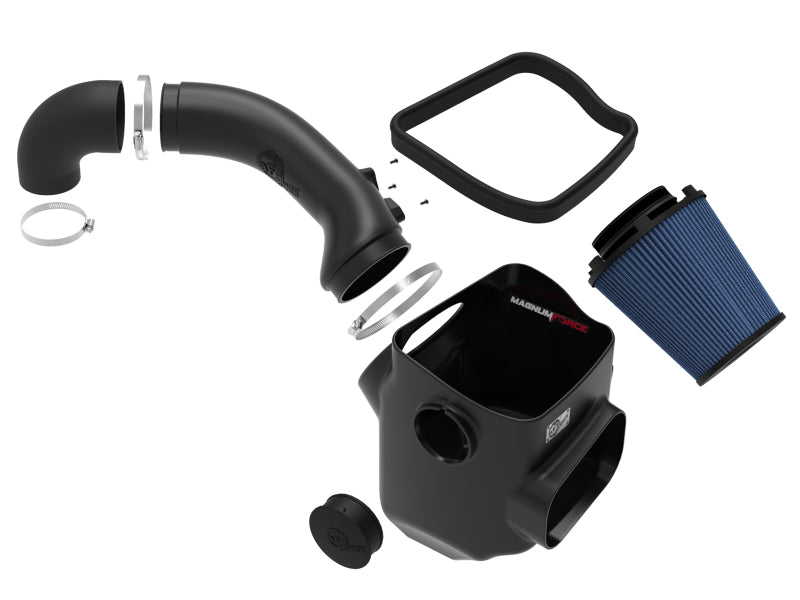

aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, parts laid out, with blue filter

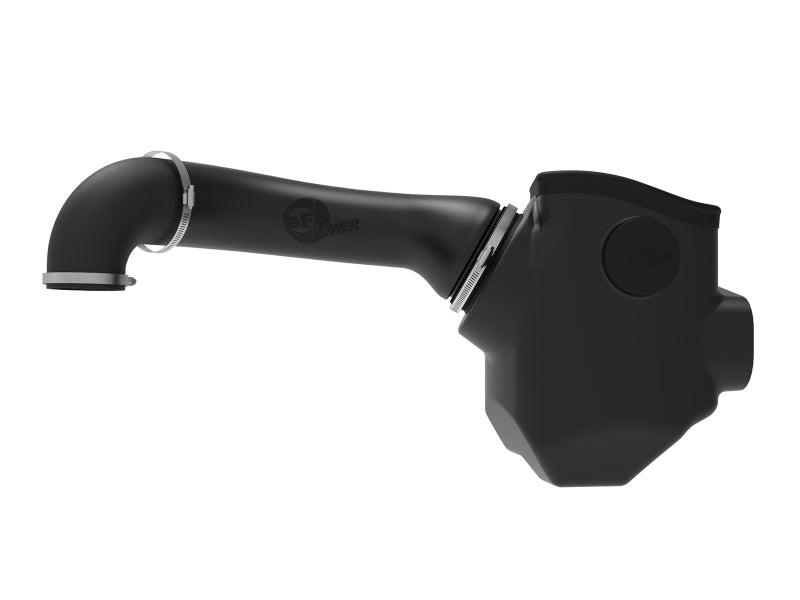

aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, airbox with tube, side view
aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, airbox with tube, side view, alternate shot
aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, parts, filter and instructions laid out

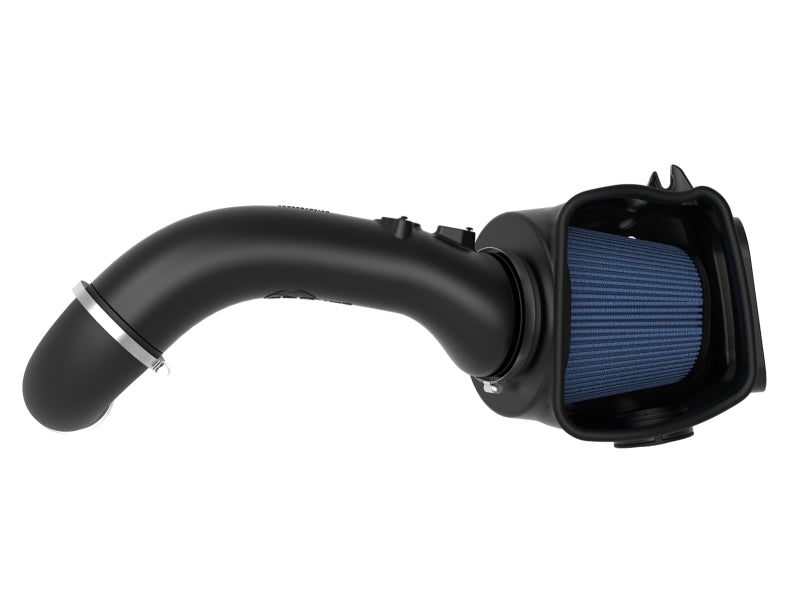

aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, airbox with tube, angled view
aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, black airbox with red filter, angled view
aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, parts laid out, with blue filter
aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, airbox with tube, side view
aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, airbox with tube, side view, alternate shot
aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, parts, filter and instructions laid out
aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System, airbox with tube, angled view

aFe Magnum FORCE Stage-2 Pro 5R Cold Air Intake System - Nissan Titan XD 5.0L 2016-2019

aFe SKU: AFE54-13026R
Price
29% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandaFe
SKUAFE54-13026R
GTIN / UPC802959545164
Manufacturer Part Number54-13026R

Product Information

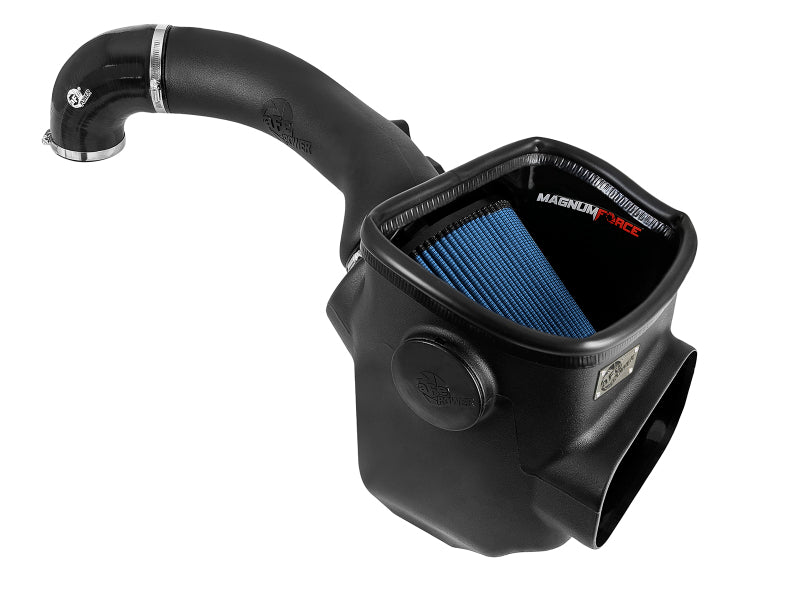

aFe Magnum FORCE Stage-2 intake system with an open-element XLPE housing that uses the factory air inlet and lets the turbo whistle through under power; an auxiliary inlet takes the optional Dynamic Air Scoop or closes with the included urethane plug. The 9 in tall 360 degree radial flow filter has an inverted top and pre-oiled Pro 5R media with five layers of progressively finer cotton gauze, joined by a dyno-tuned XLPE intake tube and a silicone elbow reducer. It flows 710 CFM at 7 in H2O, 45% more than the factory intake, and is rated at 25 hp and 63 lb-ft over stock.

Specifications

Type Cold Air Intake System
Series Magnum FORCE Stage-2
Filter Media Pro 5R, five-layer oiled cotton gauze, washable and reusable

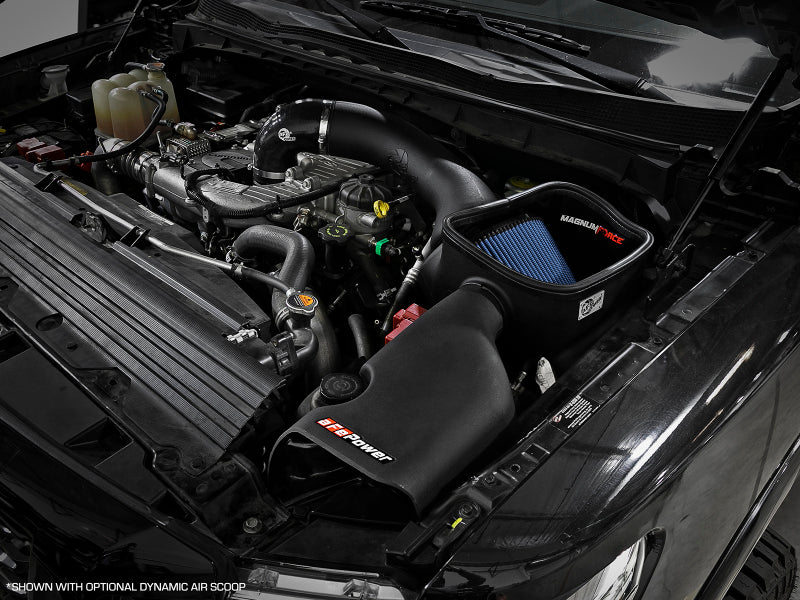

Housing Open-element one-piece XLPE housing using the factory air inlet; auxiliary inlet for the optional Dynamic Air Scoop (54-76105-S) or the included plug
Filter 9 in tall 360 degree radial flow, inverted top
Gains +25 hp, +63 lb-ft; 710 CFM @ 7 in H2O, 45% more airflow than the factory intake

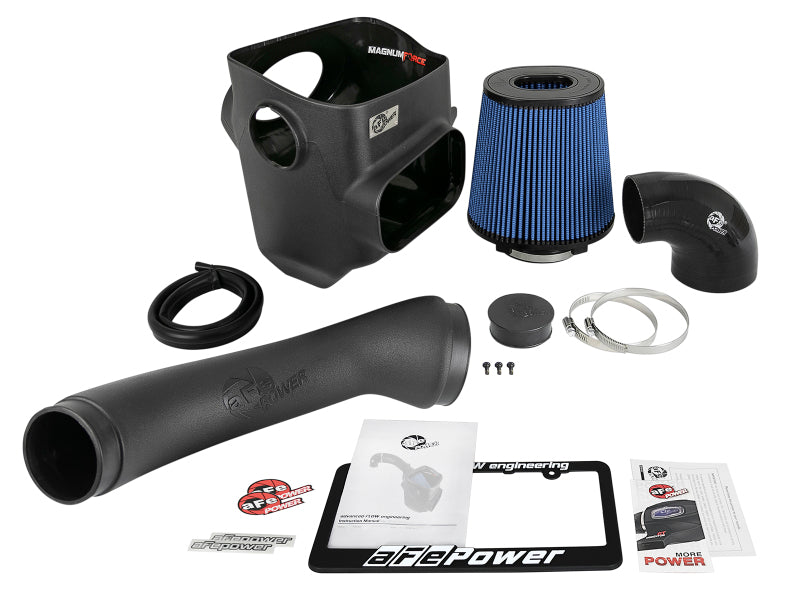

What's in the Box
  • Pro 5R filter
  • Housing
  • Intake tube
  • Silicone elbow reducer coupling
  • Two clamps
  • Urethane plug
  • Trim seal and Torx screws
Fitment Notes For the Titan XD with the 5.0L Cummins V8 turbo-diesel only
Install Direct fit at the factory mounting points, no cutting; about 15 minutes
Replacement Filter 24-91120 (Pro 5R)
Engine V8-5.0L (td) Cummins
Filter Color Blue
Hardware Included Yes
Air Flow Gain 45 Percent
Pre-Filter 28-10033
Air Box Type Open
Heat Shield Included Yes
Tune Required No
Warranty 2 years on components (original owner)
Part Number 54-13026R

This part fits:

Year Make Model Submodel
2016-2019 Nissan TITAN XD PRO-4X
2016-2019 Nissan TITAN XD Platinum Reserve
2016-2019 Nissan TITAN XD S
2016-2019 Nissan TITAN XD SL
2016-2019 Nissan TITAN XD SV

Documents: Installation Instructions (PDF) | Airflow Chart | Dyno Chart | Filter Cleaning Instructions

Will it fit my Titan XD with the 5.6L gas V8?

  • No. It is made for the 2016-2019 Titan XD with the 5.0L Cummins V8 turbo-diesel only.

What comes in the box?

  • The Pro 5R filter, the housing and intake tube, a silicone elbow reducer coupling, two clamps, a urethane plug, trim seal and Torx screws. The Dynamic Air Scoop 54-76105-S is sold separately.

How long does it take to install?

  • About 15 minutes. It mounts at the factory points with no cutting.

How do I service the filter?

  • The Pro 5R filter is washable and reusable and is re-oiled after cleaning; cleaning instructions are linked under Documents. The replacement filter is part number 24-91120.
