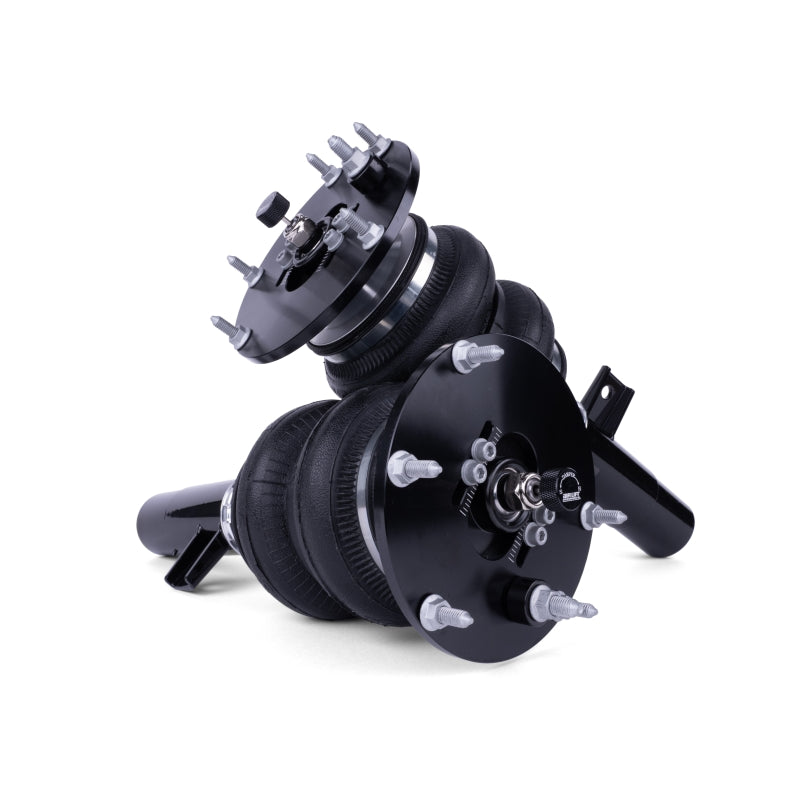

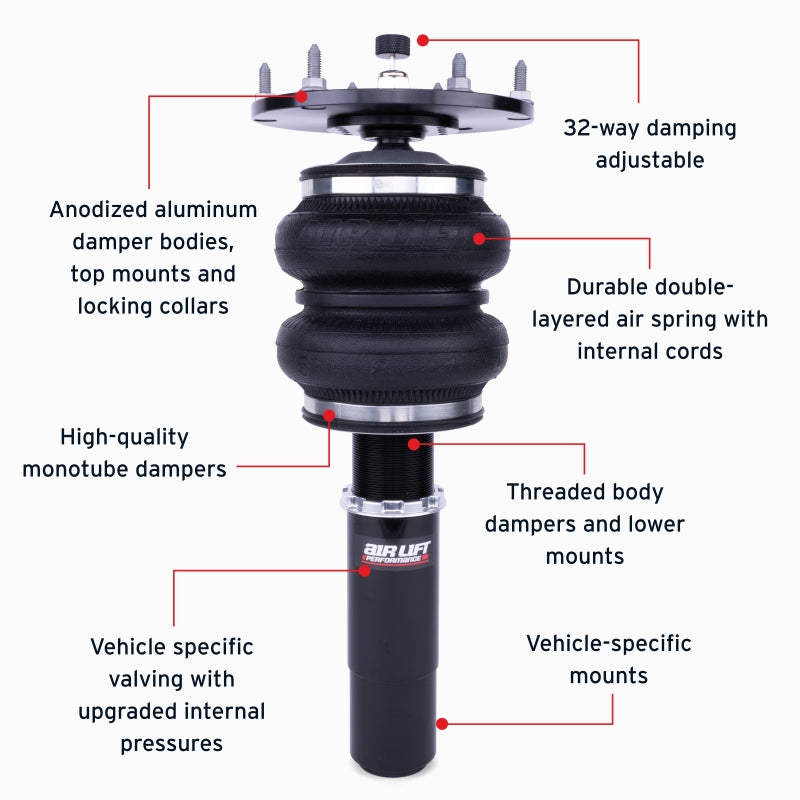

The Air Lift Performance front kit replaces the factory struts with monotube air struts carrying double bellows progressive rate air springs, dropping the car up to 3.7 inches below stock while keeping it fully drivable. Damping is 32 level adjustable for compression and rebound together, set with a 3 mm hex or the supplied adjuster, and Air Lift suggests starting 16 clicks from full soft. Threaded adjustable lower mounts set the static height and the spherical bearing upper mounts include adjustable camber plates. Suggested driving pressure is 35 to 50 psi with a 125 psi maximum. An air management system is not included, and Air Lift states that one is highly recommended for this product.
| Type | Performance air suspension kit |
| Position | Front |
| Struts | Monotube with double bellows progressive rate air springs |
| Damping | 32 levels, compression and rebound |
| Drop | Up to 3.7 in (93 mm) below stock |
| Lower Mounts | Threaded, adjustable |
| Upper Mounts | Spherical bearing with adjustable camber plates |
| Pressure | 35 to 50 psi suggested driving, 125 psi maximum |

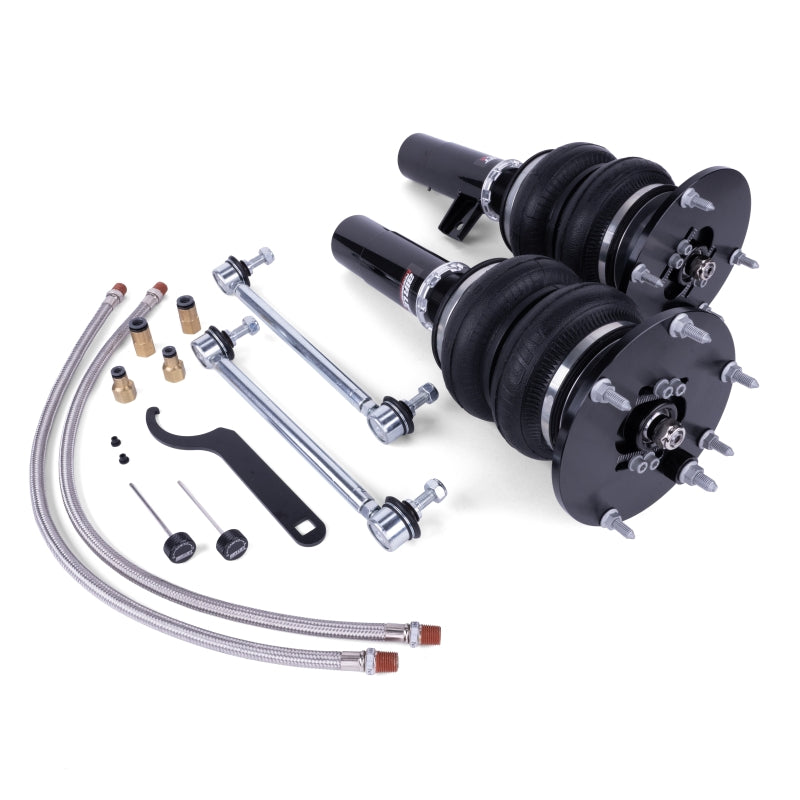

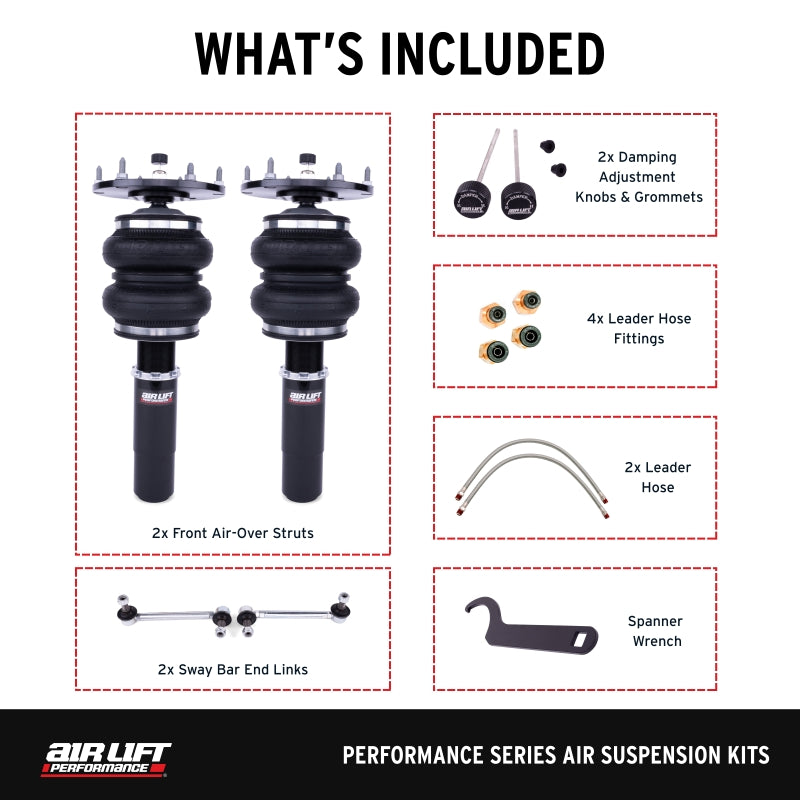

| Kit Contents | 2 front dampers with air springs, spanner wrench, 2 damping adjustment knobs, 2 knob grommets, 2 stainless leader lines, 2 sway bar end links, 2 x 1/4 in FNPT to 1/4 in PTC fittings, 2 x 1/4 in FNPT to 3/8 in PTC fittings |
| Air Management | Not included; Air Lift highly recommends an Air Lift Performance management system |
| Application Note | Fits 5 bolt front upper mount vehicles only |
| Quantity | 1 kit |
| Part Number | 76021 |
This part fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2012-2018 | BMW | 1 Series | F20 / F21 |
| 2015-2021 | BMW | 2 Series | F22 / F23 |
| 2015-2019 | BMW | 3 Series | F30 |
| 2015-2019 | BMW | 3 Series | F31 |
| 2015-2020 | BMW | 4 Series | F32 / F33 / F36 |
