AMS Performance High Mount Intercooler - Ford F-150 2.7L / 3.5L EcoBoost & Raptor 3.5L 2017+ - Silver without Logo

AMS SKU: AMSAMS.55.09.0002-2
Price
Only 1 Left – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

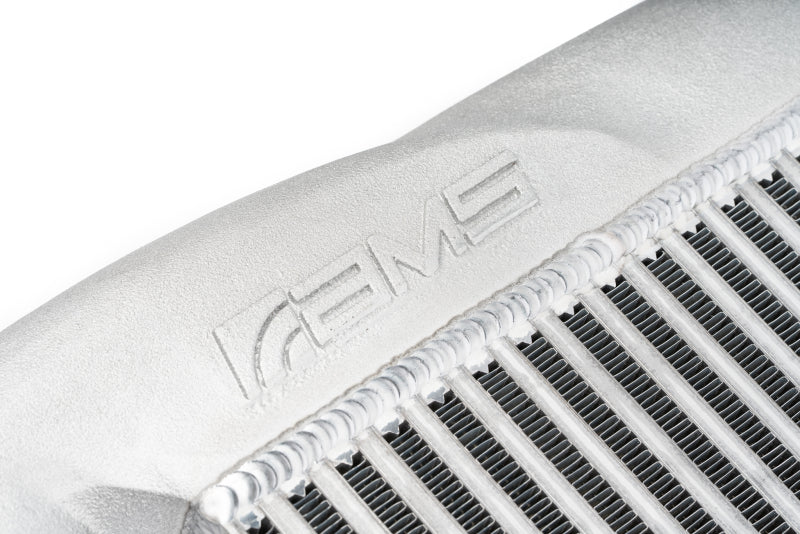

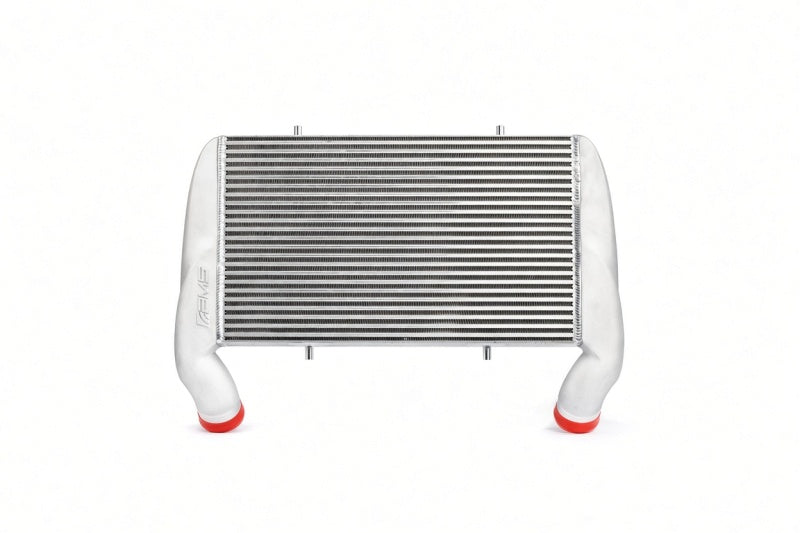

The AMS Performance high mount intercooler replaces the factory F-150 and Raptor EcoBoost intercooler with a 24 x 14 x 3.5 in bar and plate core of 1,176 cubic inches, against 552 cubic inches for the factory unit. Cast aluminum end tanks carry 3 in inlet and outlet ports, the cast outlet tube has an integrated mount for the factory blow-off valve or a Turbosmart VeePort, and a drain plug sits at the low point of the system. It mounts on a gusseted 1 in 304 stainless lower support bar and a 304 stainless upper bracket, connects to the factory intercooler piping, and this version is finished in silver (uncoated) with no logo.

Specifications

Type High mount intercooler
Core 24 x 14 x 3.5 in bar and plate, 1,176 cu in (factory: 552 cu in)

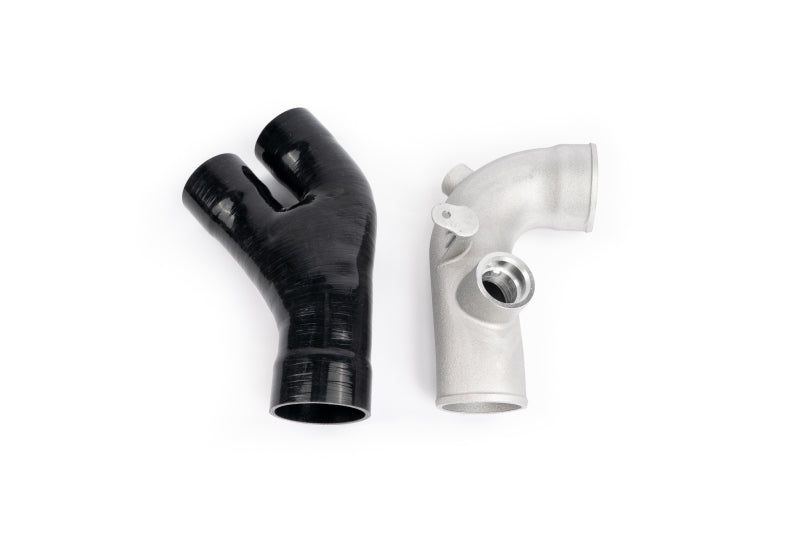

End Tanks Cast aluminum, 3 in inlet and outlet
Blow-Off Valve Integrated mount on the cast outlet tube for the OEM valve or Turbosmart VeePort

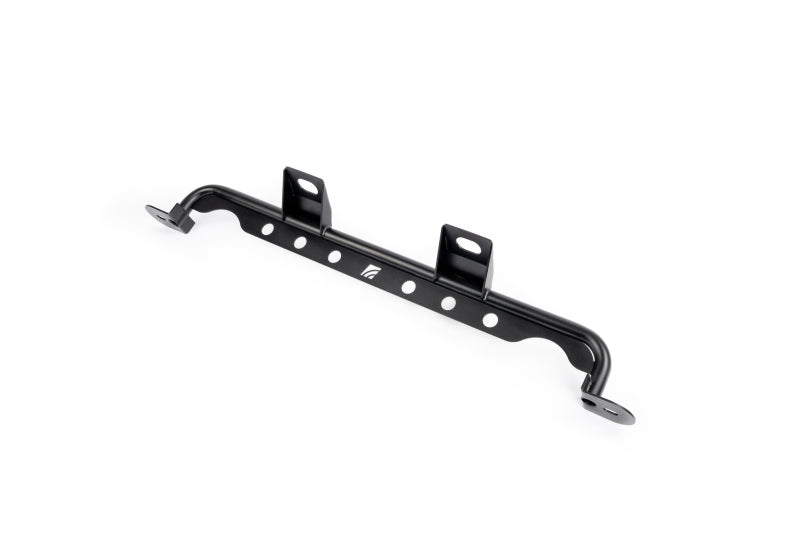

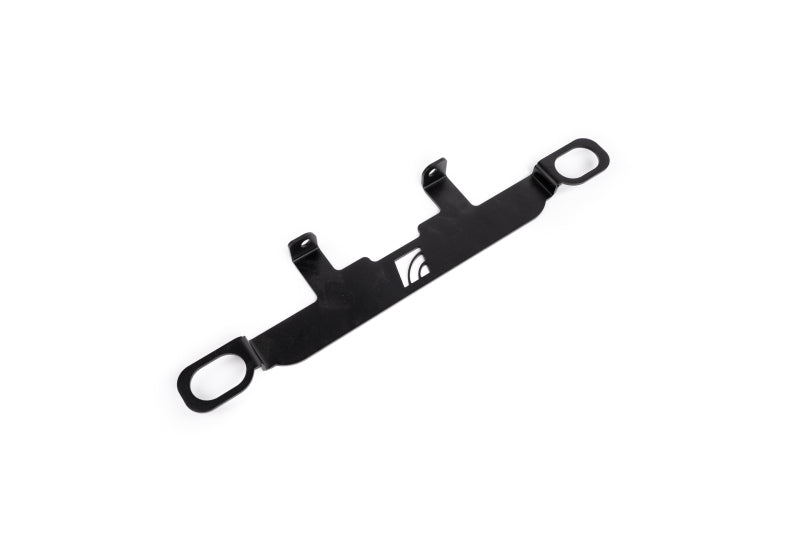

Mounting 1 in 304 stainless gusseted lower support bar, 304 stainless upper bracket
Piping Connects to the factory intercooler piping; not compatible with AMS or other aftermarket intercooler pipes
Finish Silver (uncoated), no logo

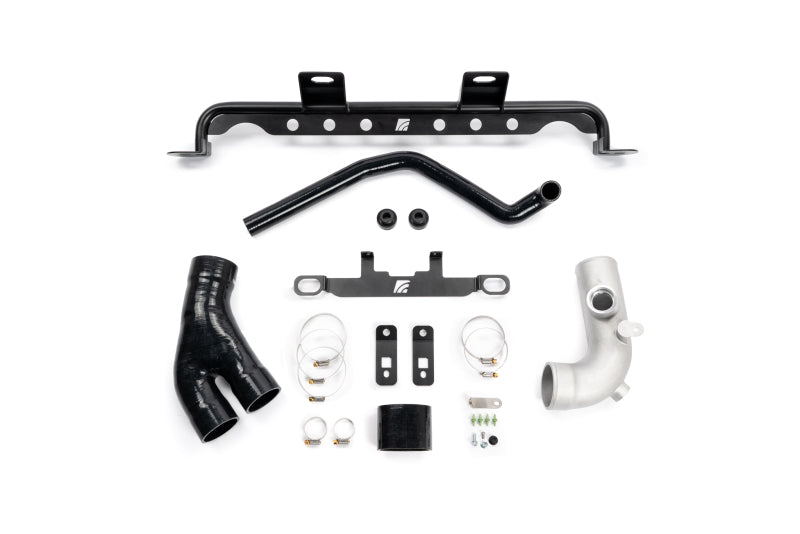

Included Intercooler core, stainless support bar, upper bracket, couplers, outlet tube and hardware
Fitment Notes 2017 and later Ford F-150 2.7L EcoBoost and 3.5L EcoBoost (all sub-models) and 2017 and later F-150 Raptor 3.5L EcoBoost; fit with aftermarket bumpers is not guaranteed and may need bumper modification or piping fabrication
Install Requires removing the upper front grille shutters and trimming the surrounding duct material
Weight 25 lb
Quantity 1
Part Number AMS.55.09.0002-2

Documents: Installation Instructions (PDF)

Which trucks does it fit?

  • 2017 and later Ford F-150 with the 2.7L or 3.5L EcoBoost, all sub-models, and the 2017 and later F-150 Raptor 3.5L EcoBoost.

Can I use it with aftermarket intercooler pipes?

  • No. It connects to the factory intercooler piping and is not compatible with AMS or other aftermarket intercooler pipes.

Does it work with an aftermarket bumper?

  • Fit with aftermarket bumpers is not guaranteed and may require bumper modification or piping fabrication.

What does installation involve?

  • The upper front grille shutters come off and the surrounding duct material is trimmed. The kit includes the core, stainless support bar, upper bracket, couplers, outlet tube and hardware.
