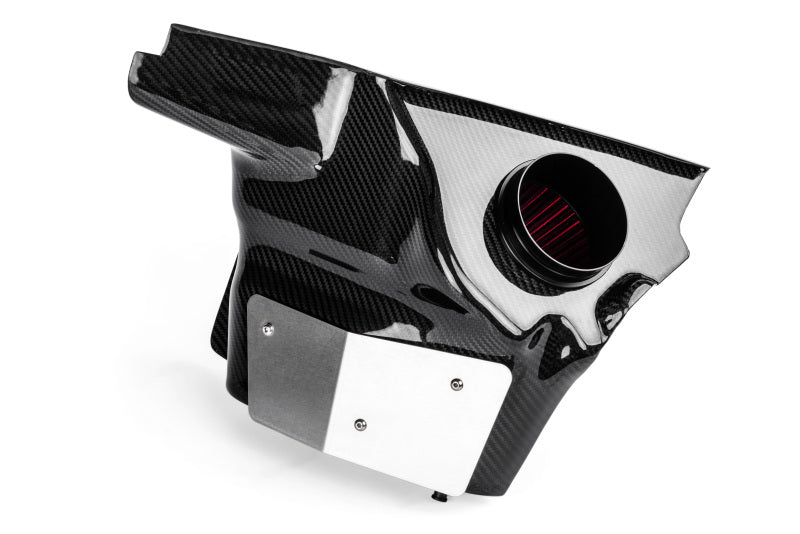

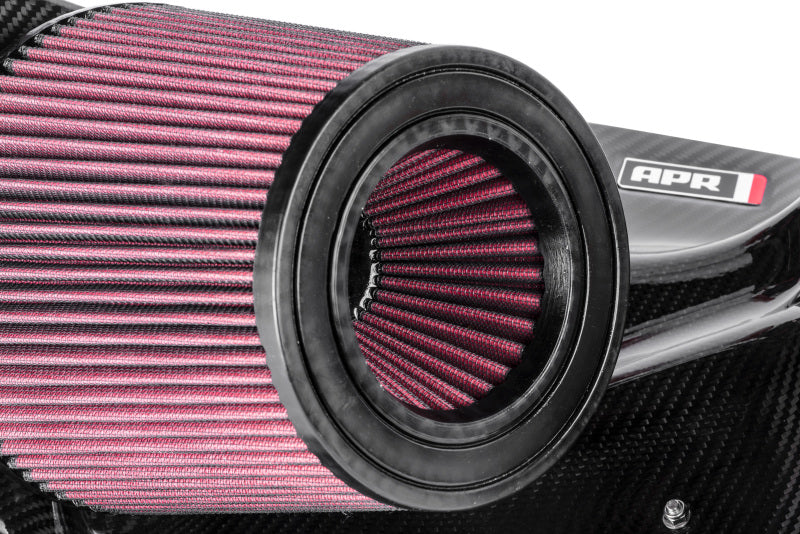

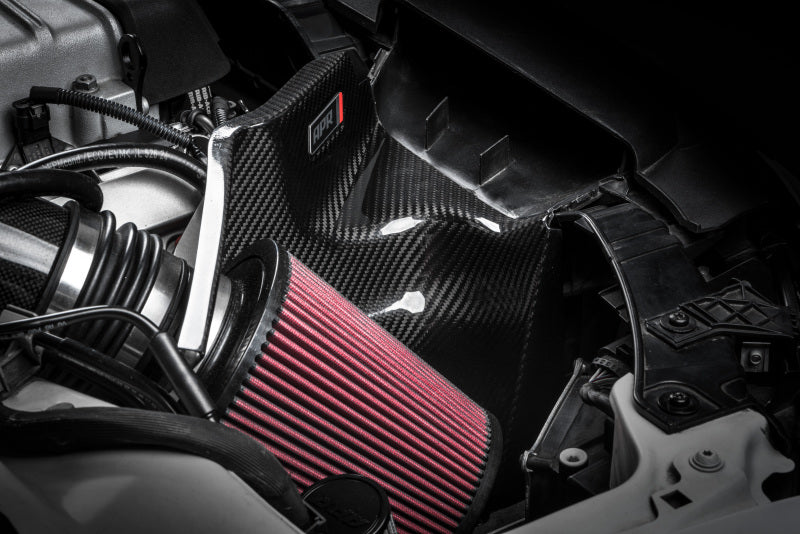

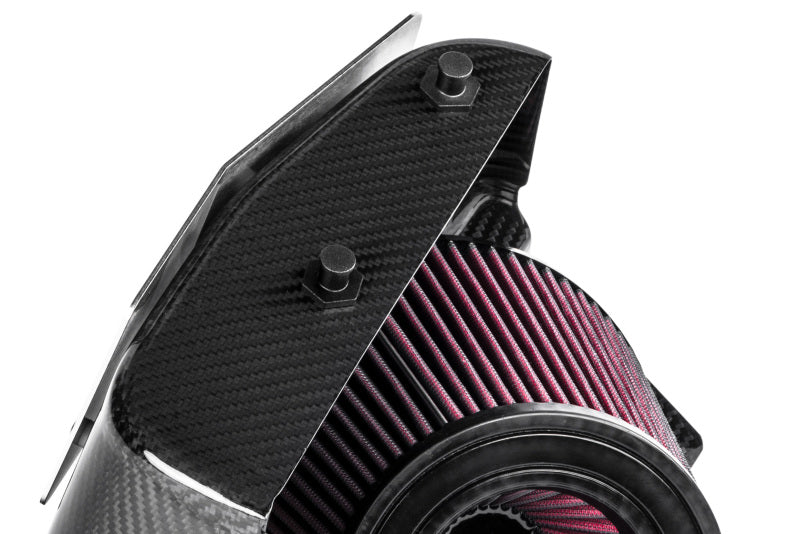

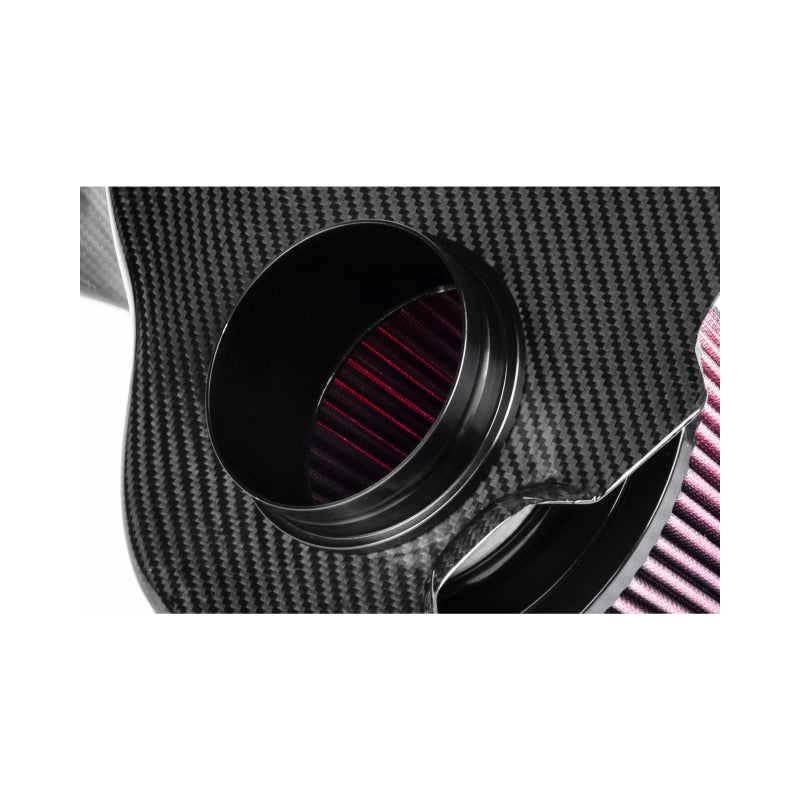

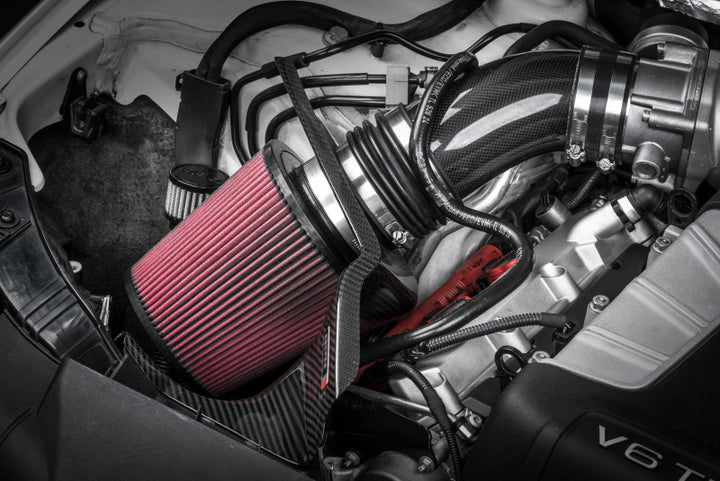

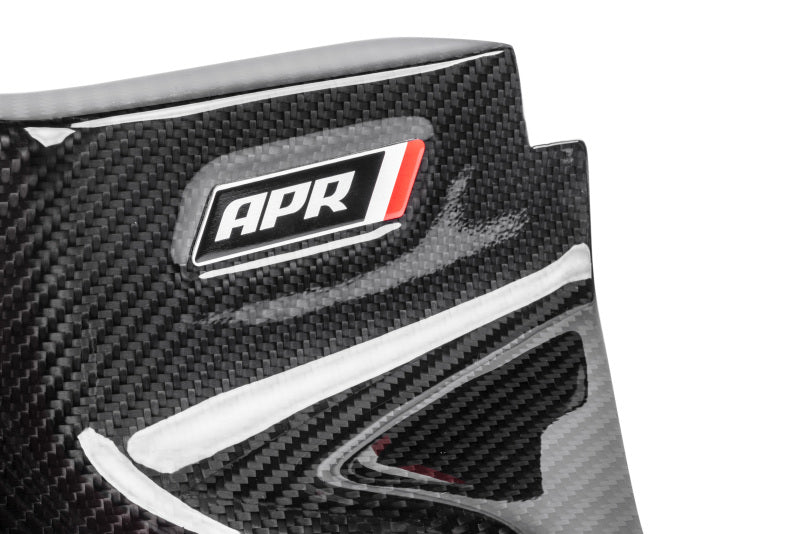

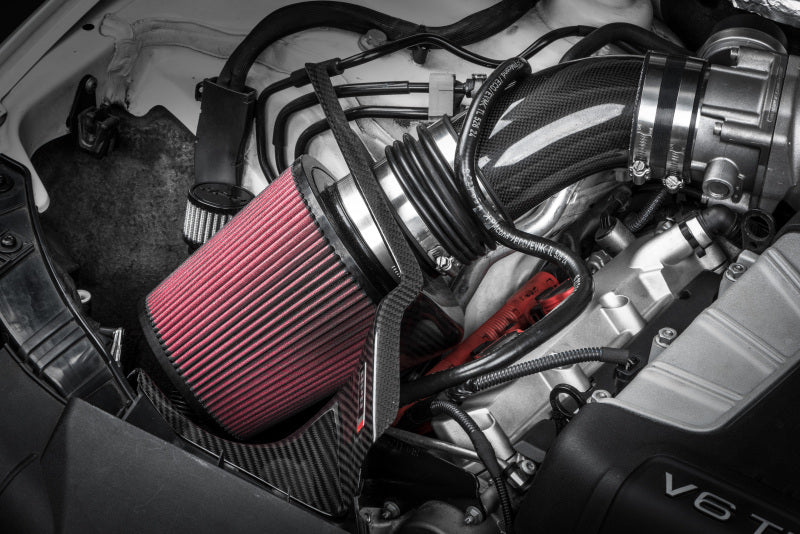

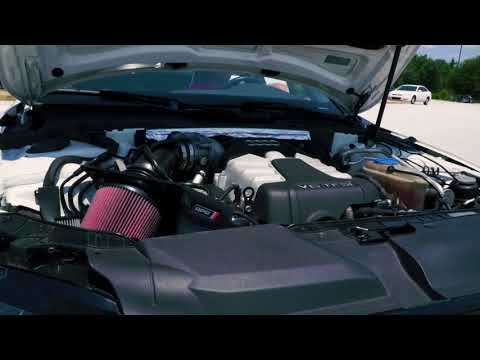

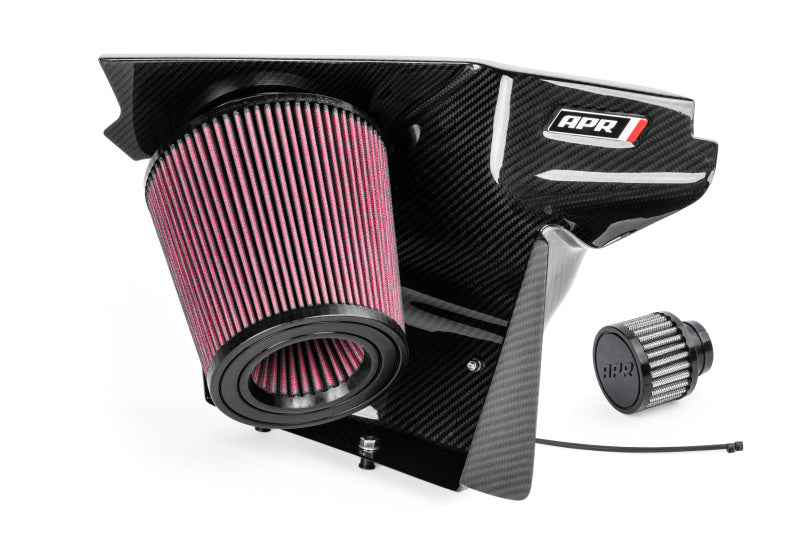

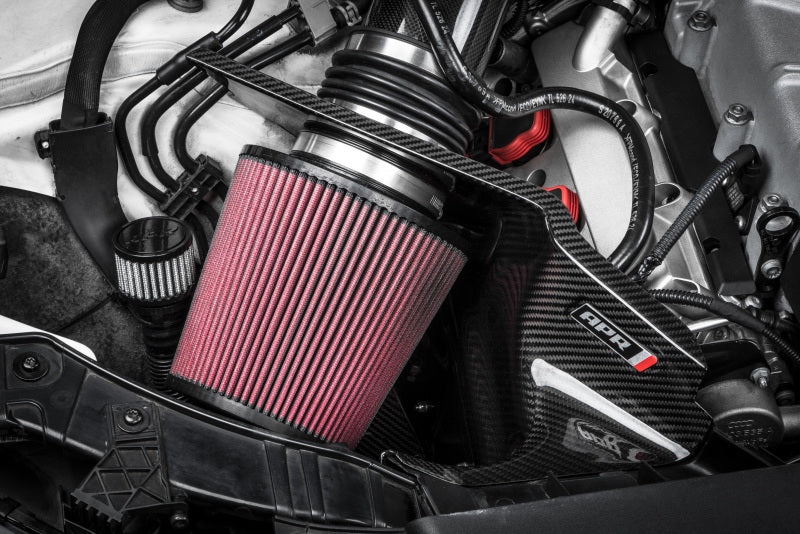

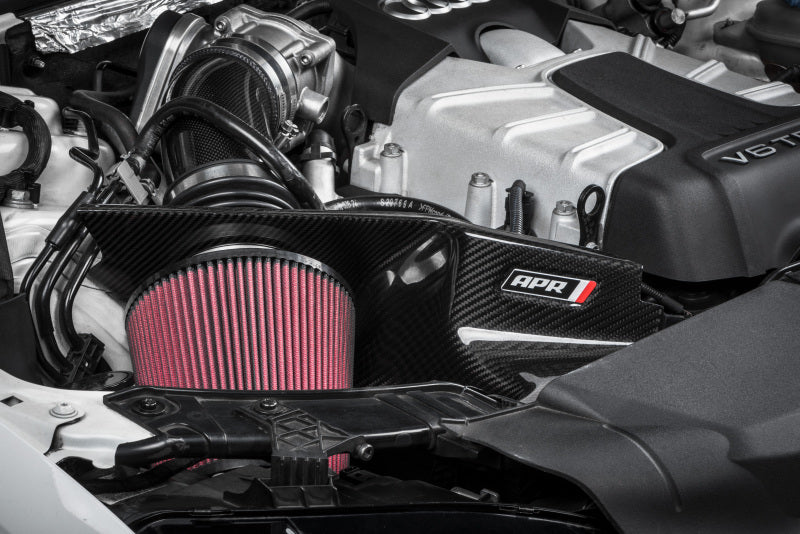

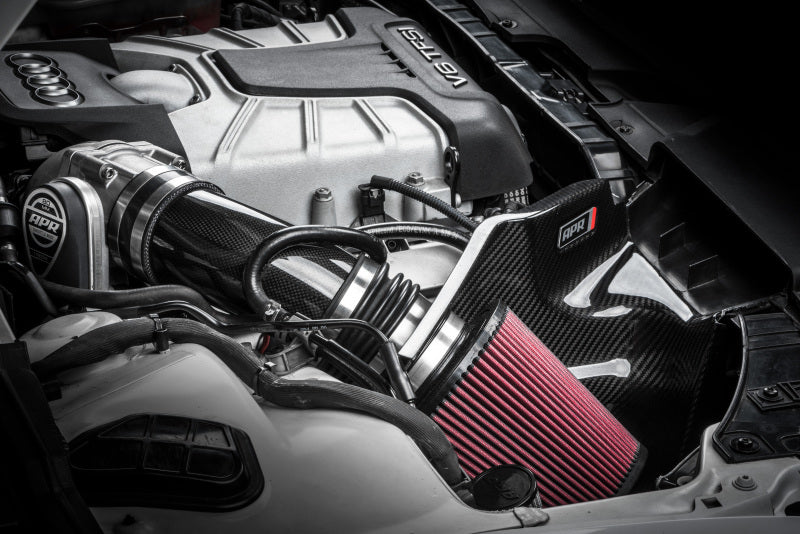

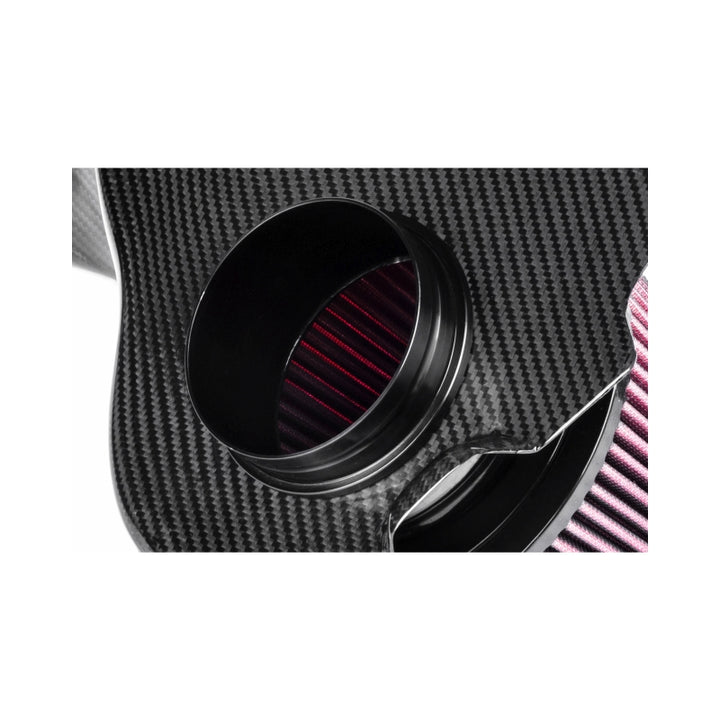

The APR Open Carbon Fiber Intake System replaces the undersized factory airbox on the B8 3.0 TFSI supercharged V6 with a drop-in open design. A carbon fiber air-dam directs air into an oversized 7 inch cotton gauze filter with frontal inlet, backed by a T304 stainless steel heat shield and air buffer gap that reject engine bay heat. A billet aluminum 4 inch flange adapter mates to the factory inlet or the APR Ultracharger system. Flow bench testing measured up to 268 CFM more than stock (770 CFM with the APR Ultracharger versus 502 CFM stock at 28 inches of H2O), yielding an average of 17 AWHP. A SAI breather filter is included.
| Type | Open Carbon Fiber Intake System |
| Material | Carbon fiber air-dam, T304 stainless steel heat shield, billet aluminum flange |
| Media | Pleated cotton gauze (7" filter, frontal inlet) |
| Airflow | 770 CFM at 28" H2O (APR with Ultracharger); 502 CFM stock |
| Quantity | 1 |
| Part Number | CI100037 |
Documents: Installation Instructions (PDF) | Installation Instructions (PDF)
This part fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2013-2017 | Audi | Q5 | Premium Plus |
| 2013-2017 | Audi | Q5 | Prestige |
| 2014-2016 | Audi | Q5 | TDI Premium Plus |
| 2016 | Audi | Q5 | TDI Premium Plus S-Line |
| 2014-2016 | Audi | Q5 | TDI Prestige |
| 2016 | Audi | Q5 | TDI Prestige S-Line |
| 2010-2013 | Audi | S4 | Base |
| 2014-2016 | Audi | S4 | Premium Plus |
| 2014-2016 | Audi | S4 | Prestige |
| 2013,2017 | Audi | S5 | Base |
| 2010-2013 | Audi | S5 | Cabriolet |
| 2014-2016 | Audi | S5 | Premium Plus |
| 2014-2016 | Audi | S5 | Prestige |
| 2014-2017 | Audi | SQ5 | Premium Plus |
| 2014-2017 | Audi | SQ5 | Prestige |
