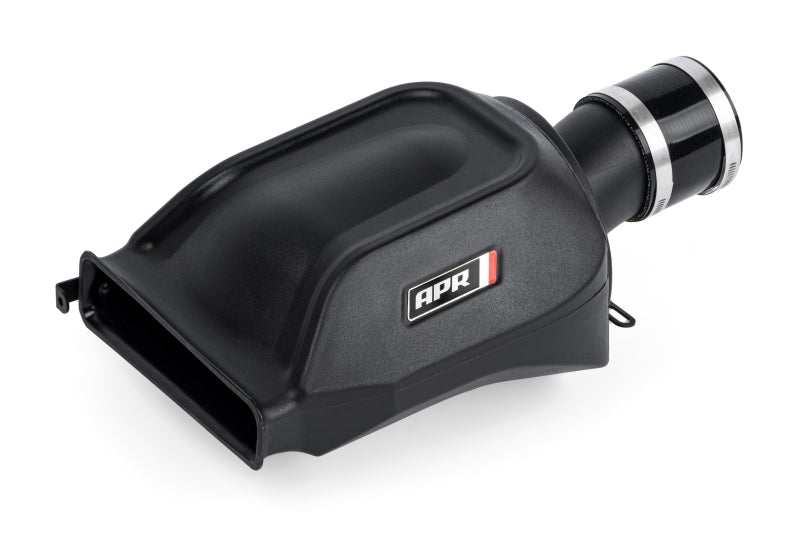

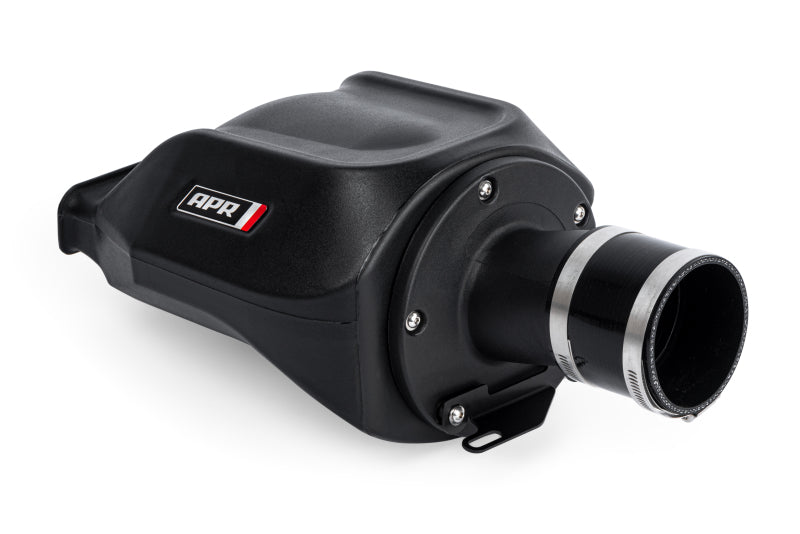

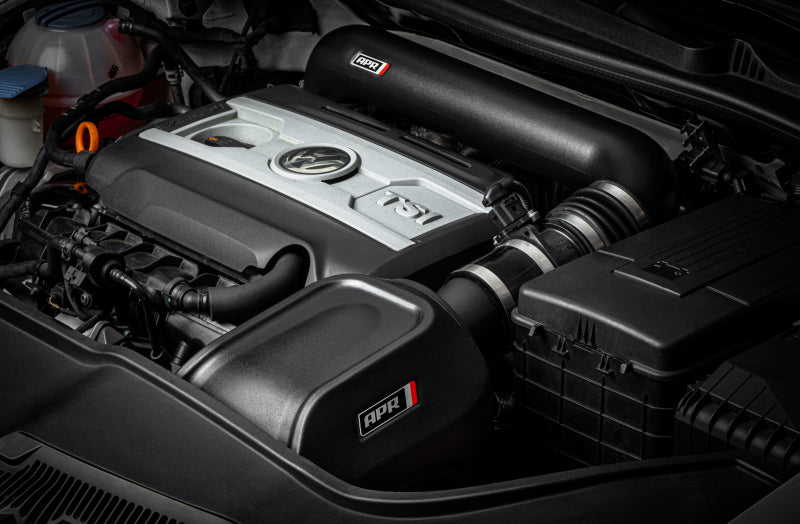

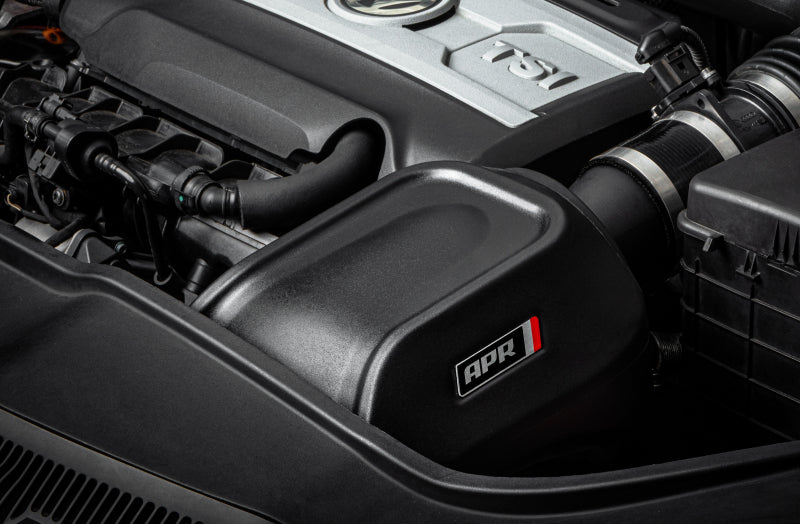

APR's PEX intake swaps the factory airbox for a closed housing moulded from PEX, a high heat deflection material chosen to keep engine bay heat out of the charge while the inlet draws cold air from outside the bay. On the flow bench the airbox measured a 31% CFM increase over the factory airbox and 24% over the complete factory system, which shows up as sharper throttle response, less strain on the turbocharger and a fuller induction note. A high flow pleated cotton gauze filter does the filtration without the restriction of the paper OE element and can be cleaned and reused. The system is modular: it bolts to the factory turbo inlet piping as supplied and accepts the separate APR turbo inlet pipe to complete the induction path. It carries CARB EO D-782-8 and all mounting hardware is included.
Specifications
| Type | Closed airbox cold air intake system (APR PEX) |
| Material | PEX |
| Filter Media | Pleated cotton gauze, reusable |
| Filter Color | Red |
| Style | Closed airbox |
| Airflow | 31% CFM increase over the factory airbox, 24% over the complete system |

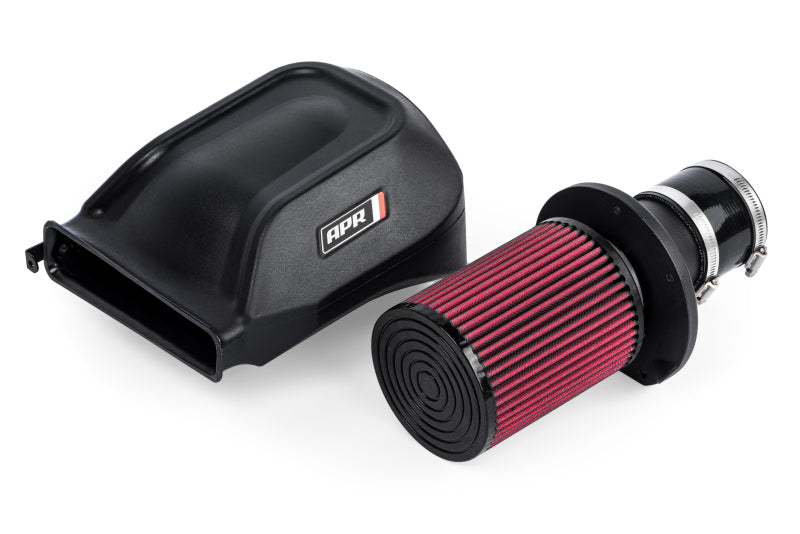

| Included | Airbox, air filter, mounting hardware |
| CARB EO Number | D-782-8 |
| Pairs With | APR PEX Intake System Turbo Inlet Pipe (CI100039-B) |
| Quantity | 1 |
| Part Number | CI100039 |
Documents: Installation Instructions (PDF) | Installation Instructions (PDF)
This part fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2008-2009 | Audi | TT | Base |
| 2009-2011,2014-2015 | Audi | TT Quattro | Base |
| 2012-2013 | Audi | TT Quattro | Premium Plus |
| 2012-2013 | Audi | TT Quattro | Prestige |
| 2017 | Volkswagen | Beetle | #PinkBeetle |
| 2014-2015 | Volkswagen | Beetle | Base |
| 2015,2017 | Volkswagen | Beetle | Classic |
| 2016 | Volkswagen | Beetle | Denim |
| 2016-2017 | Volkswagen | Beetle | Dune |
| 2015-2016 | Volkswagen | Beetle | Fleet Edition |
| 2014 | Volkswagen | Beetle | GSR |
| 2013-2015 | Volkswagen | Beetle | R-Line |
| 2016 | Volkswagen | Beetle | R-Line S |
| 2016 | Volkswagen | Beetle | R-Line SE |
| 2016-2017 | Volkswagen | Beetle | R-Line SEL |
| 2016-2017 | Volkswagen | Beetle | S |
| 2016-2017 | Volkswagen | Beetle | SE |
| 2016-2017 | Volkswagen | Beetle | SEL |
| 2013-2015 | Volkswagen | Beetle | TDI |
| 2012-2013 | Volkswagen | Beetle | Turbo |
| 2016 | Volkswagen | Beetle | Wolfsburg Edition |
| 2014-2015 | Volkswagen | CC | Executive |
| 2012-2013 | Volkswagen | CC | Lux |
| 2012 | Volkswagen | CC | Lux Limited |
| 2012 | Volkswagen | CC | Lux Plus |
| 2009-2011 | Volkswagen | CC | Luxury |
| 2011-2016 | Volkswagen | CC | R-Line |
| 2016-2017 | Volkswagen | CC | R-Line Executive |
| 2009-2017 | Volkswagen | CC | Sport |
| 2013 | Volkswagen | CC | Sport Plus |
| 2016 | Volkswagen | CC | Trend |
| 2012-2015 | Volkswagen | Eos | Executive |
| 2015 | Volkswagen | Eos | Final Edition |
| 2008-2016 | Volkswagen | Eos | Komfort |
| 2008-2013 | Volkswagen | Eos | Lux |
| 2013-2014 | Volkswagen | Eos | Sport |
| 2008 | Volkswagen | Eos | Turbo |
| 2008-2013 | Volkswagen | GTI | Base |
| 2014 | Volkswagen | GTI | Driver's Edition |
| 2014 | Volkswagen | GTI | Wolfsburg Edition |
| 2011,2015 | Volkswagen | Jetta | Base |
| 2008-2009,2012-2014,2017 | Volkswagen | Jetta | GLI |
| 2015-2016 | Volkswagen | Jetta | GLI SE |
| 2015-2016 | Volkswagen | Jetta | GLI SEL |
| 2011-2015 | Volkswagen | Jetta | S |
| 2014-2015 | Volkswagen | Jetta | SE |
| 2018 | Volkswagen | Jetta | SE Sport |
| 2009,2014-2018 | Volkswagen | Jetta | SEL |
| 2016 | Volkswagen | Jetta | SEL Premium |
| 2015-2018 | Volkswagen | Jetta | Sport |
| 2009-2014 | Volkswagen | Jetta | TDI |
| 2010 | Volkswagen | Jetta | TDI Cup Edition |
| 2012-2014 | Volkswagen | Jetta | TDI Premium |
| 2015 | Volkswagen | Jetta | TDI S |
| 2015 | Volkswagen | Jetta | TDI SE |
| 2015 | Volkswagen | Jetta | TDI SEL |
| 2008-2010 | Volkswagen | Jetta | Wolfsburg Edition |
| 2008-2010 | Volkswagen | Passat | Komfort |
| 2015 | Volkswagen | Passat | Limited Edition |
| 2008 | Volkswagen | Passat | Lux |
| 2016-2017 | Volkswagen | Passat | R-Line |
| 2014-2017 | Volkswagen | Passat | S |
| 2014-2017 | Volkswagen | Passat | SE |
| 2016 | Volkswagen | Passat | SEL |
| 2014-2017 | Volkswagen | Passat | SEL Premium |
| 2015 | Volkswagen | Passat | Sport |
| 2008 | Volkswagen | Passat | Turbo |
| 2014-2015 | Volkswagen | Passat | Wolfsburg Edition |
| 2014-2016 | Volkswagen | Tiguan | R-Line |
| 2009-2017 | Volkswagen | Tiguan | S |
| 2009-2016 | Volkswagen | Tiguan | SE |
| 2009-2017 | Volkswagen | Tiguan | SEL |
| 2017 | Volkswagen | Tiguan | Sport |
| 2010,2017 | Volkswagen | Tiguan | Wolfsburg Edition |
| 2017-2018 | Volkswagen | Tiguan Limited | Base |
