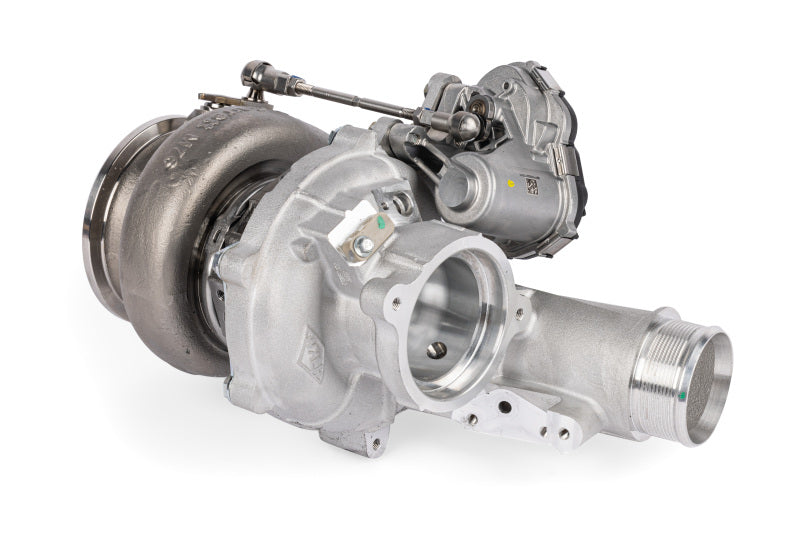

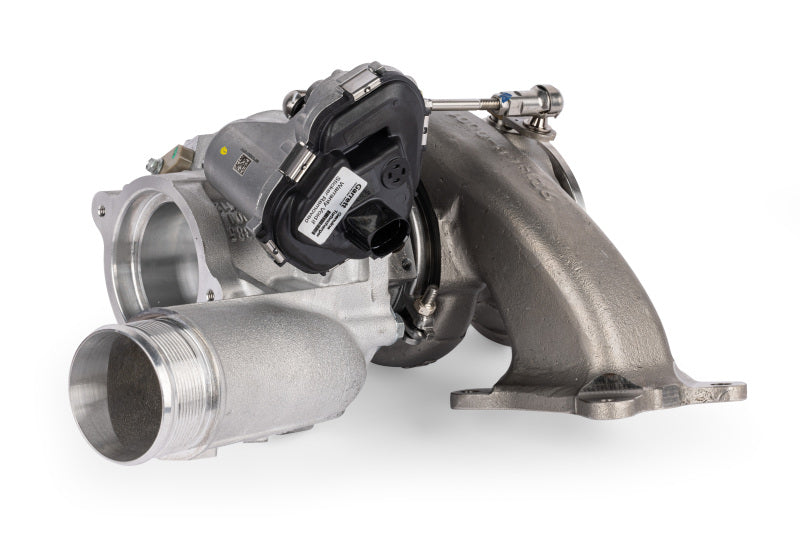

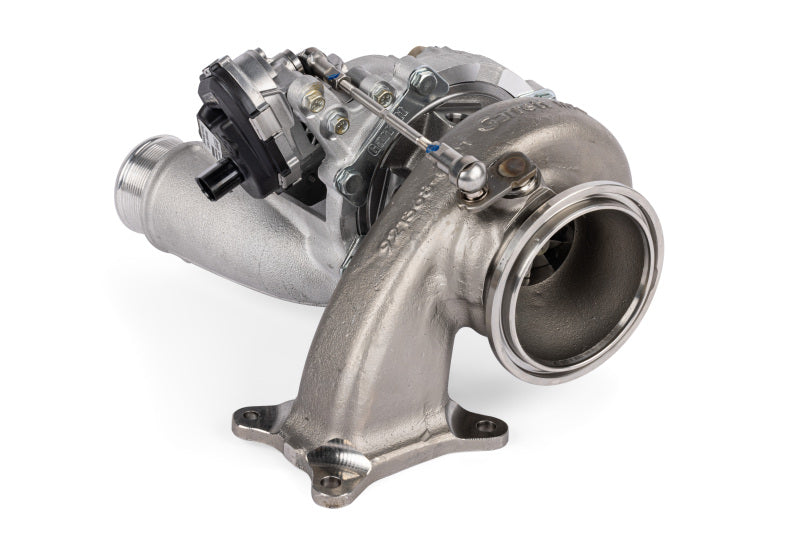

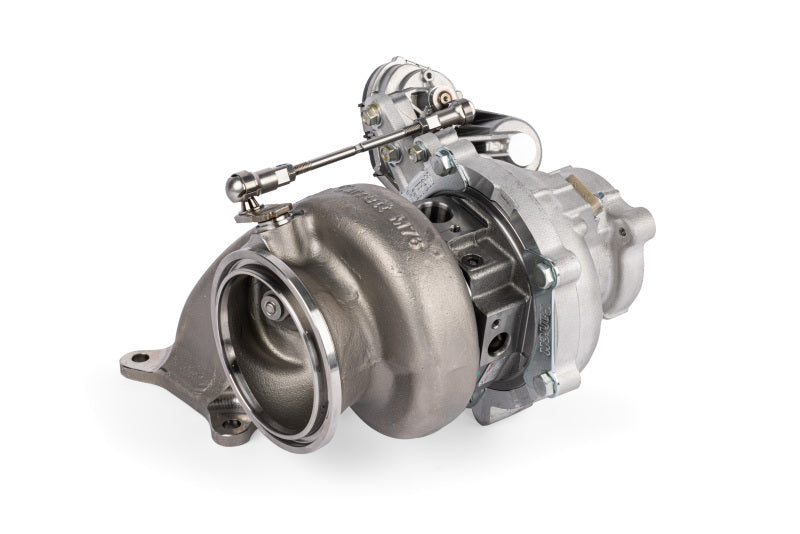

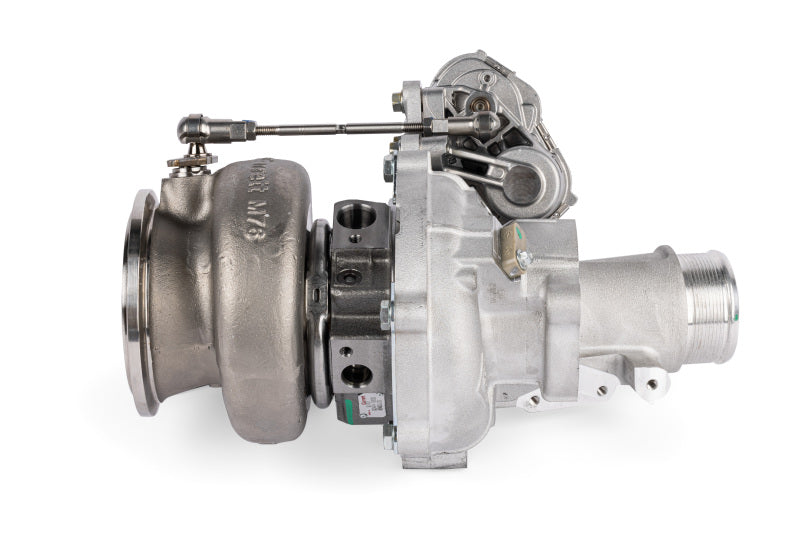

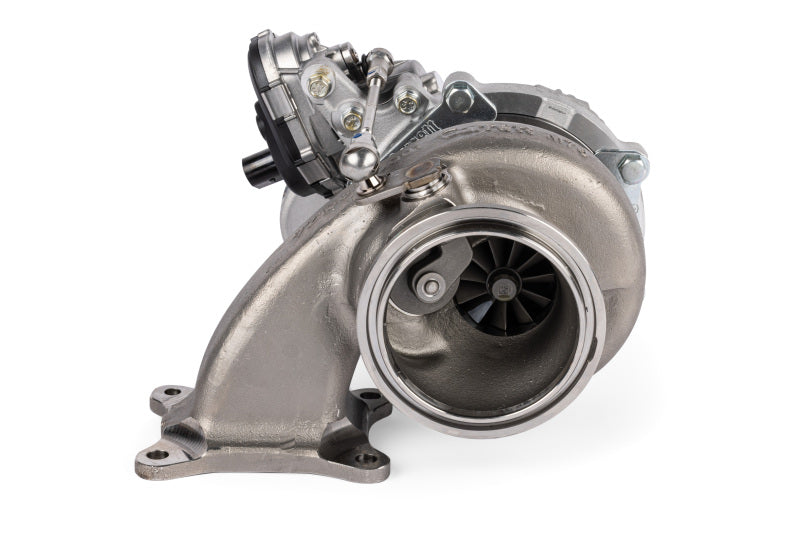

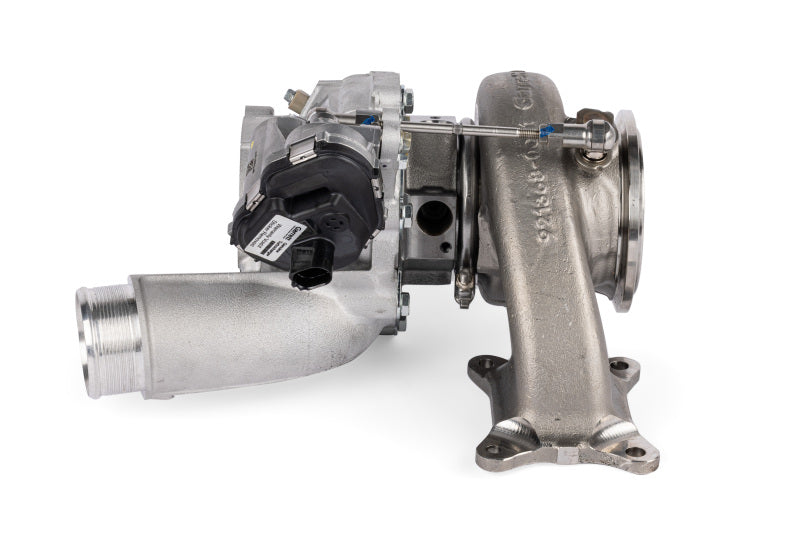

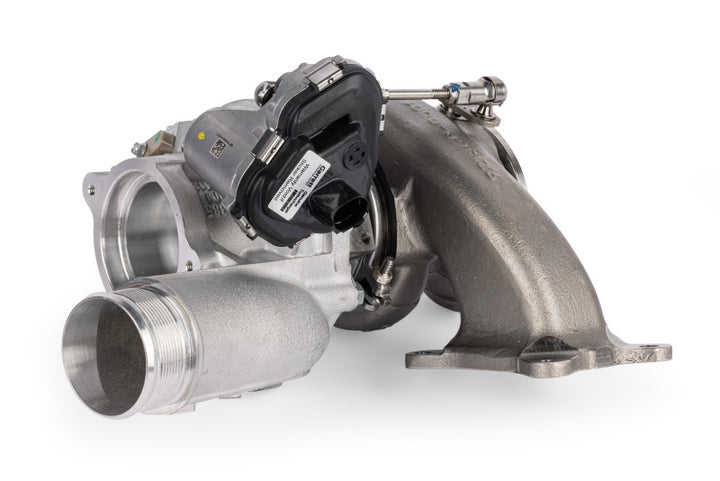

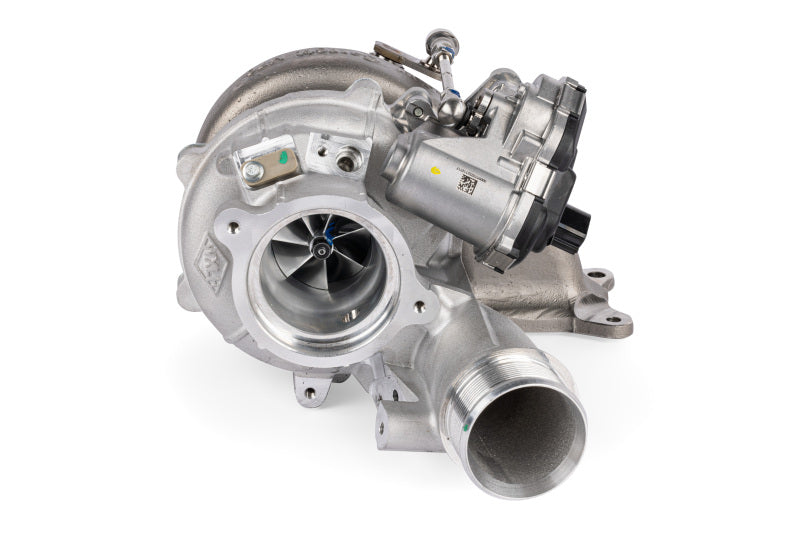

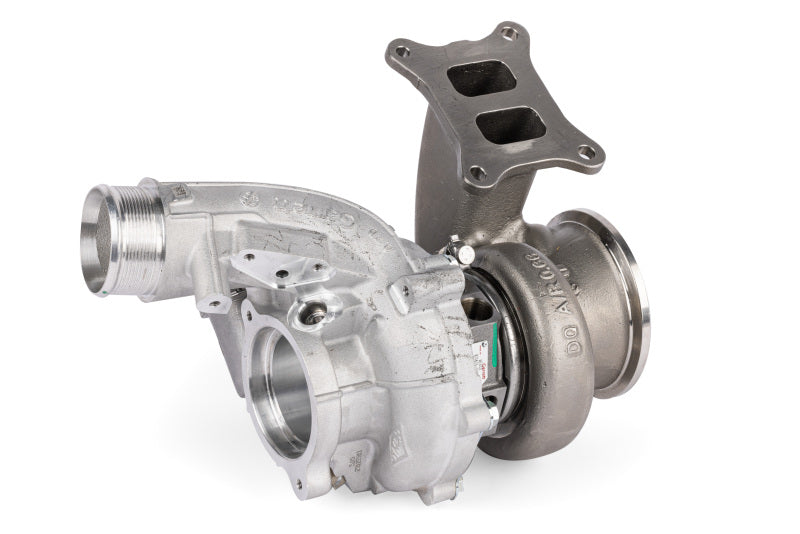

The APR Stage 3 PowerMax Turbocharger System is a direct bolt-on upgrade for the 2.0T EA888.4 (MQB/MQB Evo) engine, pairing a Garrett PowerMax GT2563S turbocharger with an installation hardware kit and a free APR Stage 3 ECU and TCU software upgrade from a lower stage. The GT2563S flows 20% more through the compressor and 37% more through the turbine than the factory Continental unit, using a Mar-M alloy turbine wheel and stainless steel turbine housing rated to 1050°C. It delivers 478-543 HP and 409-435 ft-lbs of torque depending on octane, reaching those figures on the stock exhaust and fueling with only an APR intake and intercooler.
| Type | Stage 3 Turbocharger System (Garrett PowerMax GT2563S) |

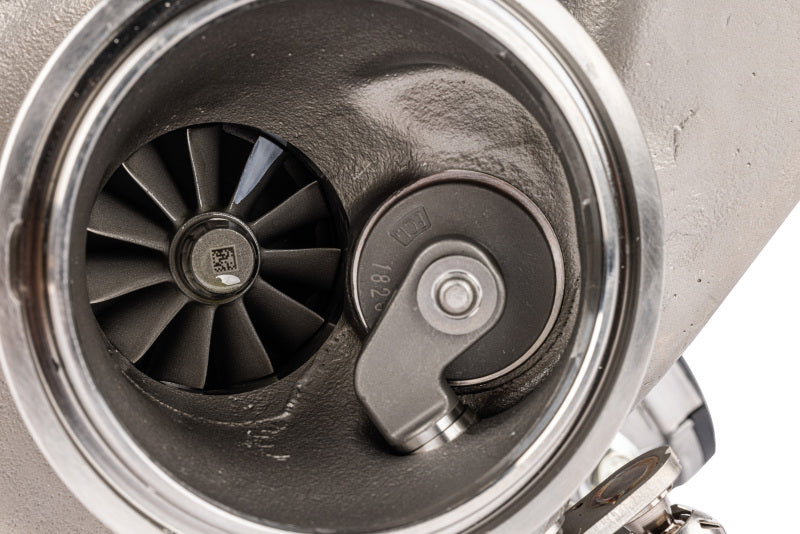

| Turbine | Mar-M alloy wheel, stainless steel housing (rated 1050°C) |
| Output | 478-543 HP / 409-435 ft-lbs (octane dependent) |

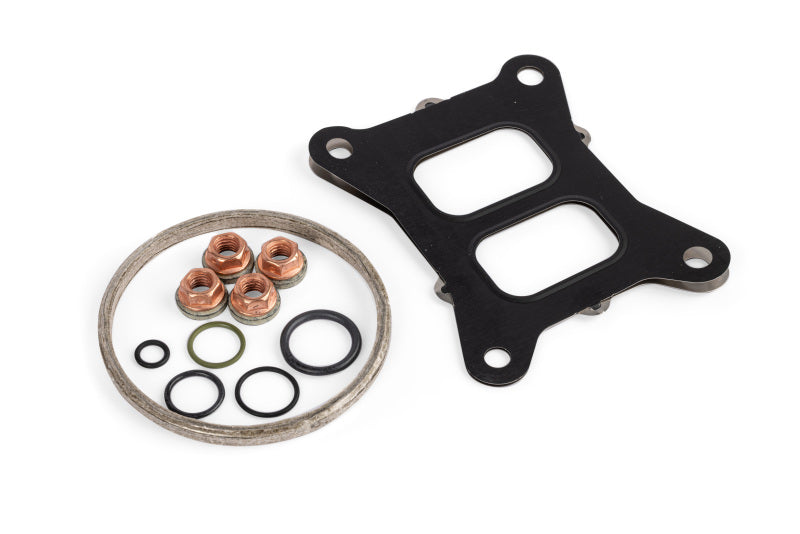

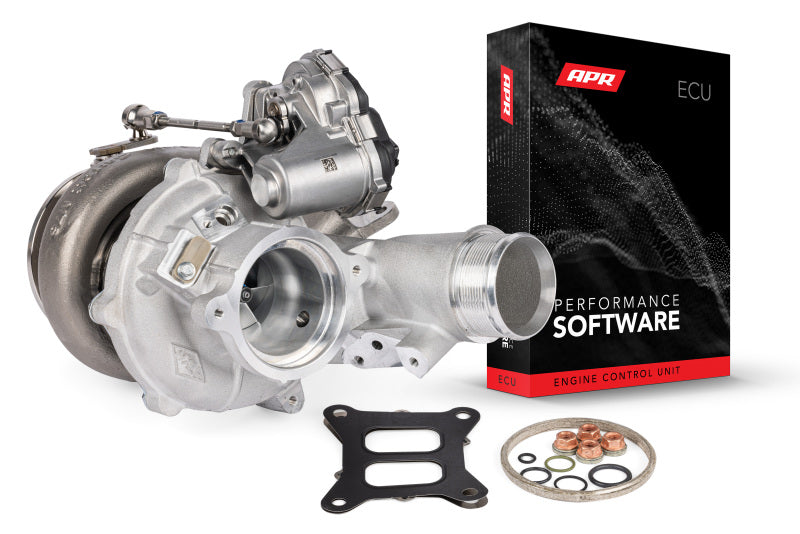

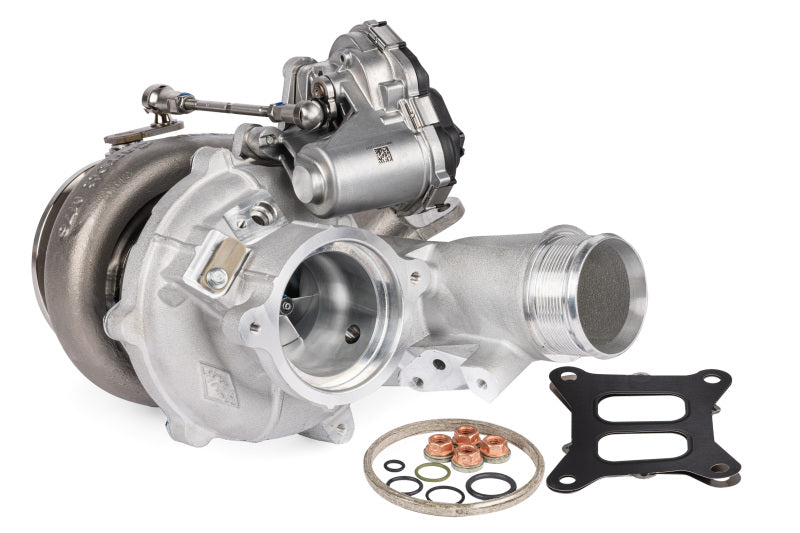

| Included | Turbocharger, install hardware kit, APR Stage 3 ECU/TCU software upgrade |
| Part Number | T4100010 |
Documents: Installation Instructions (PDF)
This part fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2022-2024 | Audi | S3 | Premium |
| 2022-2024 | Audi | S3 | Premium Plus |
| 2022-2024 | Audi | S3 | Prestige |
| 2022-2023 | Volkswagen | Arteon | SE R-Line |
| 2022-2023 | Volkswagen | Arteon | SEL Premium R-Line |
| 2022-2023 | Volkswagen | Arteon | SEL R-Line |
| 2023 | Volkswagen | Golf R | 20th Anniversary Edition |
| 2022-2024 | Volkswagen | Golf R | Base |
