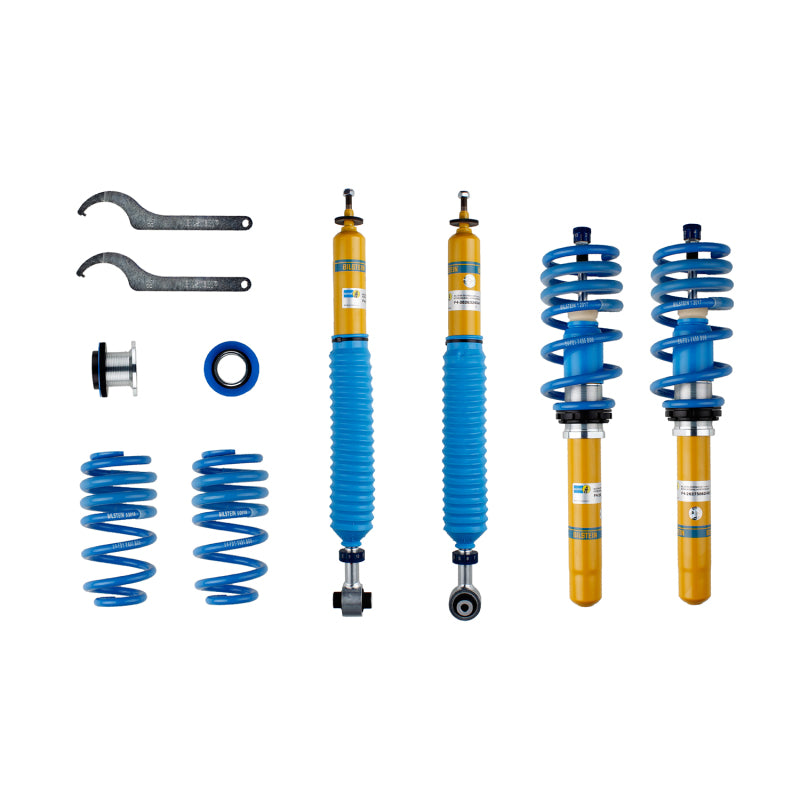

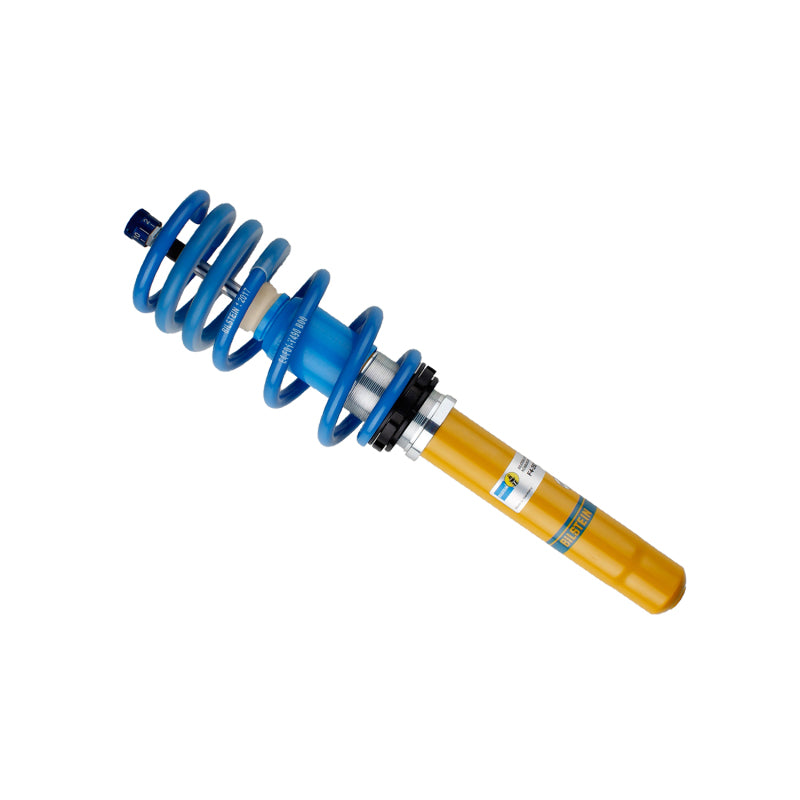

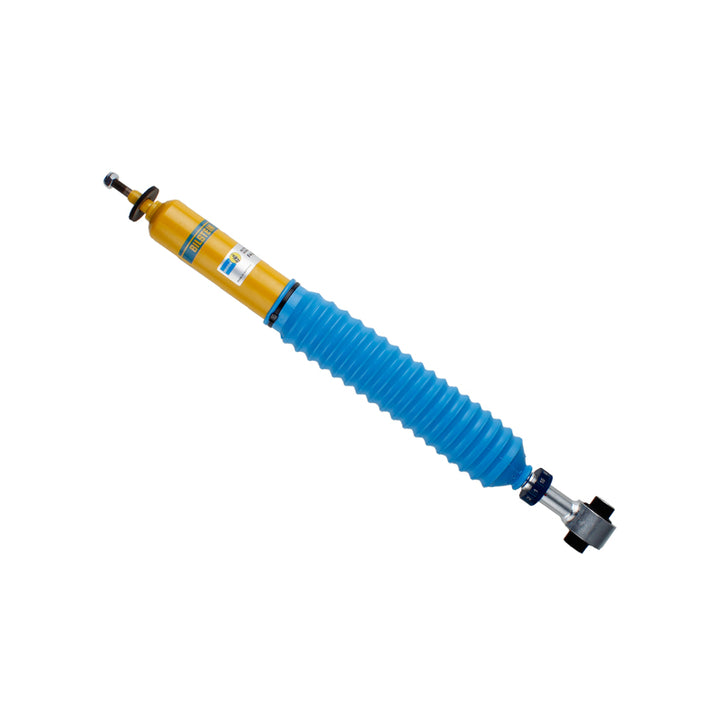

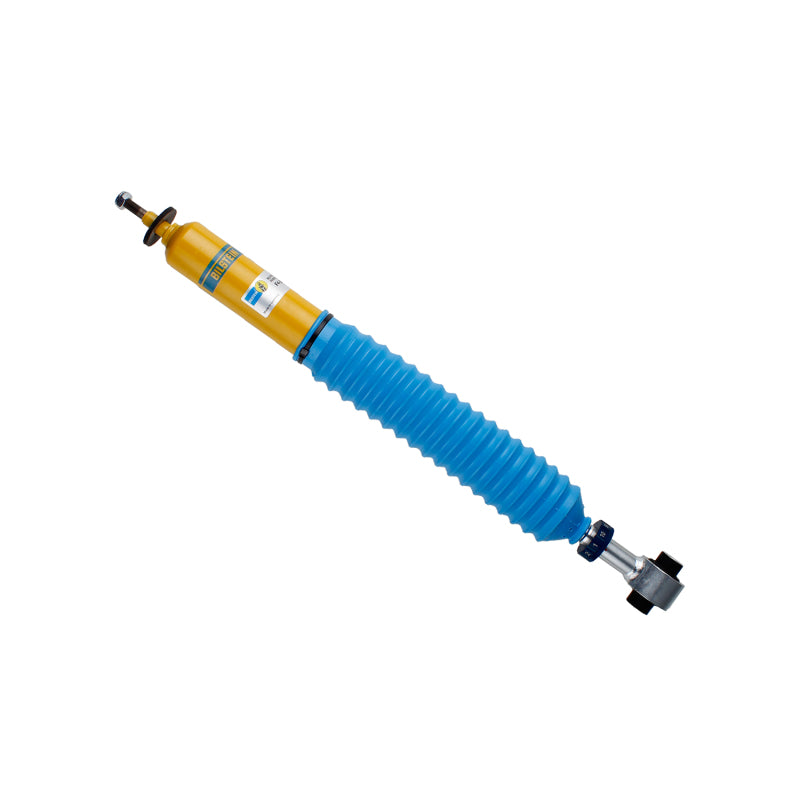

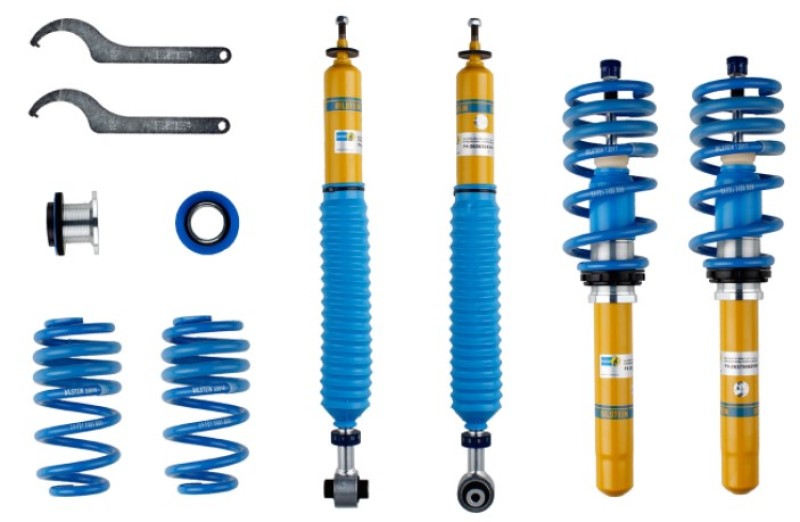

The Bilstein B16 PSS10 is a full coilover kit with both threaded ride height adjustment and 10 stage manually adjustable damping, each click moving rebound and compression together so one dial covers the whole damper rather than forcing separate settings. The dampers are monotube and made in Germany, with zinc coated threaded body units at the front and blue rear dampers. The kit ships with matched progressive springs rated at 486 lb/in front and 543 lb/in rear, plus the E4-XS1-Z001A00 spanner wrench set for setting ride height. Total kit weight is 52.03 lb, and Bilstein rates the B16 line for lowering of up to 50 mm.
| Type | Coilover kit, ride height and damping adjustable (Bilstein B16 PSS10) |
| Position | Front and rear, full kit |
| Damping | 10 stages, manually adjustable, rebound and compression together |
| Damper Construction | Monotube |
| Spring Rate, Front | 486 lb/in, progressive |
| Spring Rate, Rear | 543 lb/in, progressive |
| Ride Height | Threaded body adjustment; B16 line rated for lowering up to 50 mm |
| Finish | Zinc coated front threaded bodies, blue rear dampers and springs |

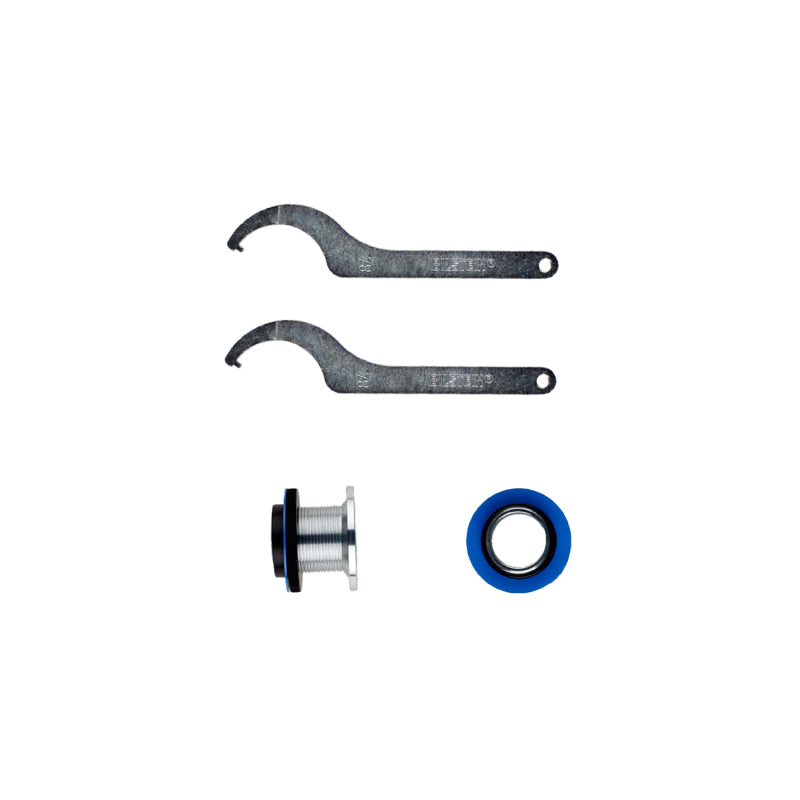

| Included | Spanner wrench set E4-XS1-Z001A00 |
| Weight | 52.03 lb |
| Origin | Made in Germany |
| Quantity | 1 kit |
| Part Number | 48-275071 |
This part fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2017-2020 | Audi | A4 | All |
| 2017-2020 | Audi | A4 Quattro | All |
| 2018-2021 | Audi | A5 Quattro | All |
| 2018-2019 | Audi | A5 Sportback | All |
| 2018-2019 | Audi | S4 | All |
| 2018-2019 | Audi | S5 | All |
| 2018-2019 | Audi | S5 Sportback | All |
