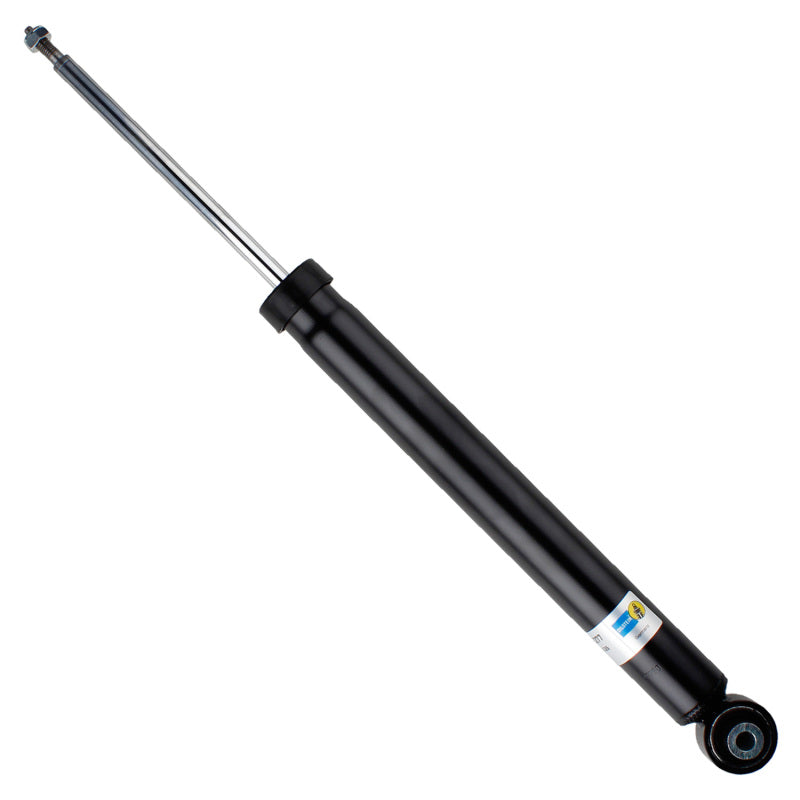

Bilstein B4 OE Replacement Shock Absorber Volkswagen e-Golf 2015-2019, black body, side view

Bilstein B4 OE Replacement Shock Absorber Volkswagen e-Golf 2015-2019 - Rear

Bilstein SKU: BIL19-275277
Price
47% OFF
Special Order – Contact Us for Lead Time
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandBilstein
SKUBIL19-275277
GTIN / UPC651860809069
Manufacturer Part Number19-275277

Product Information

Bilstein 19-275277 is a B4 OE Replacement rear damper for the 2015-2019 Volkswagen e-Golf. B4 is Bilstein's original-equipment replacement line: the valving is matched to the factory damping curve rather than firmed up, so the car returns to the ride height, ride quality and body control it left the factory with. It is the correct choice when a worn shock needs replacing and the goal is stock behaviour, not a handling change.

This is a twin-tube gas-pressure design with a 12.2 mm eye at the lower mount and a stem at the top, measuring 420 mm collapsed and 625 mm extended. It is a bare damper: no coil spring, no spring seat and no dust boot are supplied, so the existing spring and hardware carry over. It cross-references Volkswagen part numbers 5Q0 513 029 HG and 5Q0 513 029 JP. Bilstein specifies two per vehicle for the rear axle and each unit is sold individually, so order two to replace the axle as a pair. No other parts are required, it is a direct OE replacement. B4 OE Replacement line, valving matched to the factory damping curve, retains stock ride height. Twin-tube gas-pressure damper, black painted body. Collapsed length 420 mm (16.54 in.), extended length 625 mm (24.61 in.). Lower mount 12.2 mm eye, upper mount stem. No coil spring, spring seat or dust boot supplied, reuses the factory spring and hardware. Bilstein Limited Lifetime Warranty; manufactured in Romania.

Specifications

Line/Series B4 OE Replacement
Type Suspension shock absorber (bare damper)
Position Rear
Damper Design Twin-tube, gas pressure
Adjustable No
Spring Included No
Spring Seat Included No
Boot Included No
Sold As Sold individually (2 per vehicle)
Collapsed Length 420 mm (16.54 in.)
Extended Length 625 mm (24.61 in.)
Lower Mount Eye, 12.2 mm
Upper Mount Stem
Finish Black paint
Country of Origin Romania
Series B4 OE Replacement
Design Twintube
Quantity per Vehicle 1
Warranty Bilstein Limited Lifetime Warranty
Part Number 19-275277

Documents: Installation Instructions (PDF)  |  Material Safety Data Sheet (PDF)

This part fits:

Year Make Model Submodel
2015, 2017 Volkswagen e-Golf Limited Edition
2016-2019 Volkswagen e-Golf SE
2015-2019 Volkswagen e-Golf SEL Premium
