Details
BrandBilstein
SKUBIL24-302302
GTIN / UPC651860883908
Manufacturer Part Number24-302302
Product Information

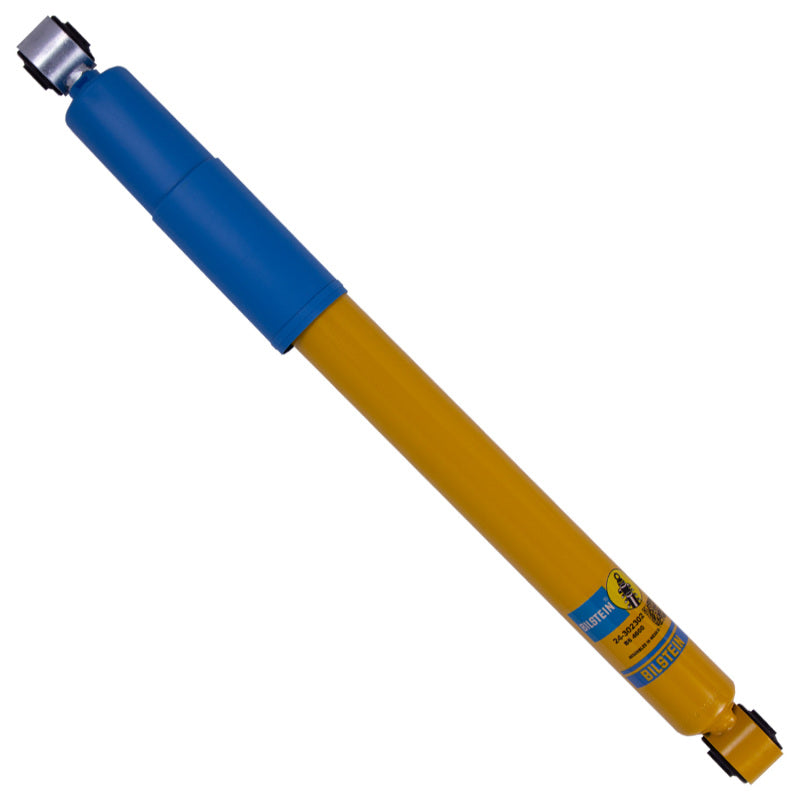

Bilstein 24-302302 is a B6 4600 rear shock absorber for the Ram 3500 with rear air suspension, built as a direct replacement for the factory shock using the OE mounting hardware. It is a 46mm monotube design with a 2.0 in body and a velocity-sensitive digressive piston tuned for this application. It measures 19.37 in collapsed and 25.59 in extended for 6.22 in of travel, with 14.4mm eye mounts at both ends.
Specifications
| Series |
B6 4600 |
| Type |
Monotube shock absorber |
| Position |
Rear |
| Piston Diameter |
46mm |
| Body Diameter |
2.0 in |
| Collapsed Length |
19.37 in (492.0 mm) |
| Extended Length |
25.59 in (650.0 mm) |
| Stroke |
6.22 in |
| Upper Mount |
Eye, 14.4mm |
| Lower Mount |
Eye, 14.4mm |
| Reservoir |
No |
| Fitment Notes |
Ram 3500 with rear air suspension |
| Design |
Monotube |
| Finish |
Yellow Paint |
| Boot Included |
Blue Straight |
| Spring Seat Included |
No - Reuse OEM |
| Country of Origin |
Mexico |
| Quantity per Vehicle |
1 |
| Quantity |
1 |
| Warranty |
Limited lifetime |
| Part Number |
24-302302 |
This part fits:
| Year |
Make |
Model |
Submodel |
| 2019-2026 |
Ram |
3500 |
With rear air suspension |
Documents: Installation Instructions (PDF) | Warranty (PDF)
