Details
BrandBilstein
SKUBIL24-333047
GTIN / UPC651860911908
Manufacturer Part Number24-333047
Product Information

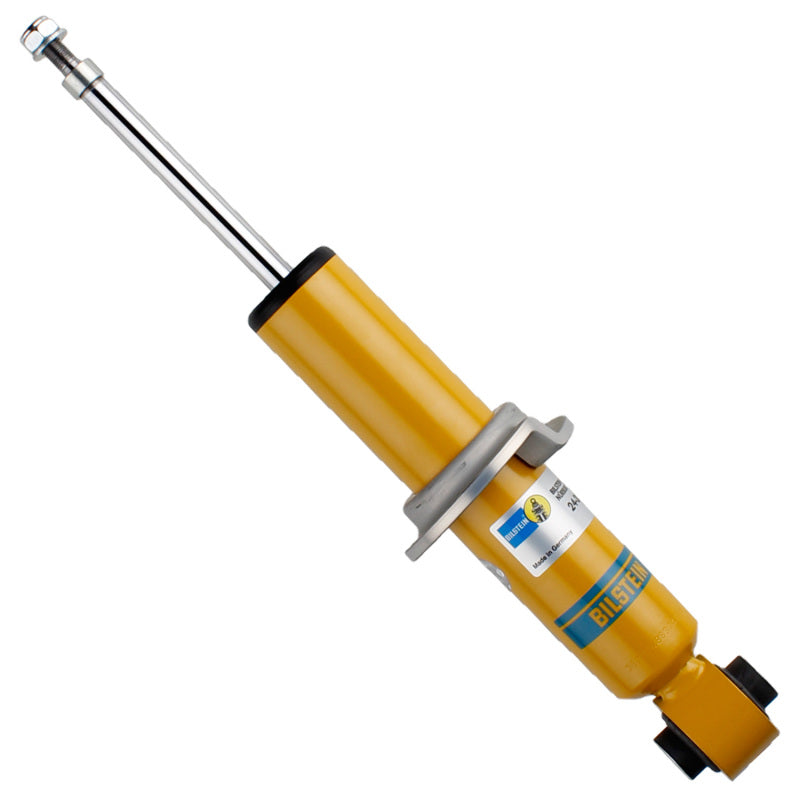

Bilstein 24-333047 is a B6 Performance rear damper for the 2022-2026 Toyota GR86 and Subaru BRZ, designed to work with the factory springs. Its monotube gas-pressure design uses valving specific to these cars for sharper handling and lane stability than the OE damper. It measures 10.71 in collapsed and 15.45 in extended, with a stem upper mount, an eye lower mount and an integrated spring seat.
Specifications
| Series |
B6 Performance |
| Type |
Monotube shock absorber |
| Position |
Rear |
| Collapsed Length |
10.71 in (272.0 mm) |
| Extended Length |
15.45 in (392.5 mm) |
| Upper Mount |
Stem |
| Lower Mount |
Eye |
| What's in the Box |
- 1 shock absorber with spring seat
- Boot not included
- Uses the factory spring
|
| Design |
Monotube |
| Finish |
Yellow Paint |
| Boot Included |
No |
| Spring Seat Included |
Yes |
| Country of Origin |
Germany |
| Quantity per Vehicle |
1 |
| Quantity |
1 |
| Warranty |
Limited lifetime |
| Part Number |
24-333047 |
This part fits:
| Year |
Make |
Model |
Submodel |
| 2022-2026 |
Subaru |
BRZ |
Limited |
| 2022-2025 |
Subaru |
BRZ |
Premium |
| 2026 |
Subaru |
BRZ |
Series.Yellow |
| 2024-2026 |
Subaru |
BRZ |
TS |
| 2023 |
Toyota |
GR86 |
10th Anniversary Special Edition |
| 2022-2026 |
Toyota |
GR86 |
Base |
| 2025 |
Toyota |
GR86 |
Hakone Edition |
| 2022-2026 |
Toyota |
GR86 |
Premium |
| 2024 |
Toyota |
GR86 |
TRUENO Edition |
| 2026 |
Toyota |
GR86 |
Yuzu Edition |
Documents: Installation Instructions (PDF) | Warranty (PDF)
