Details
BrandBilstein
SKUBIL41-326251
GTIN / UPC651860956237
Manufacturer Part Number41-326251
Product Information

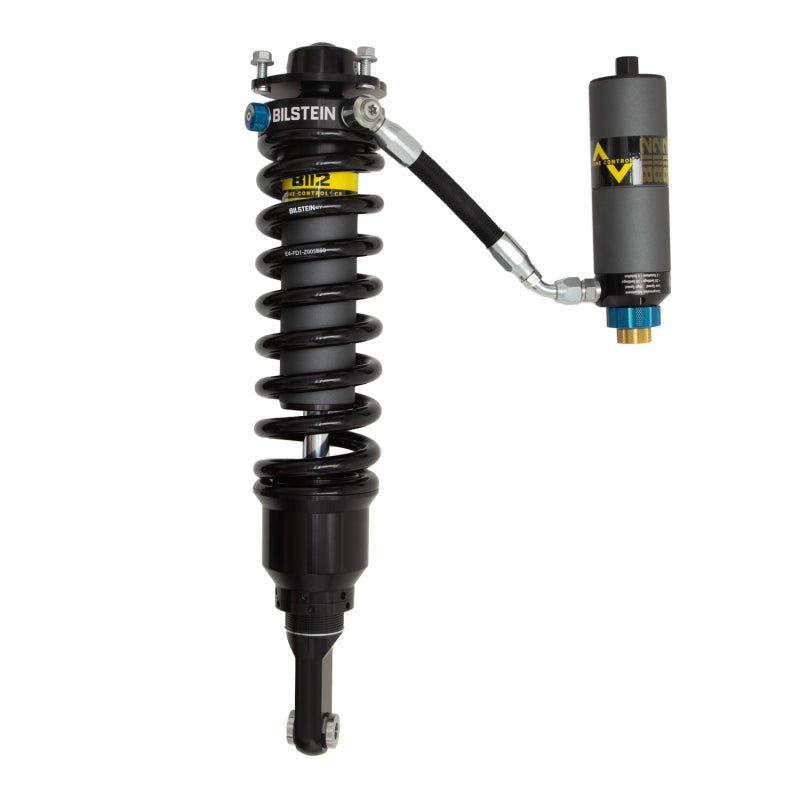

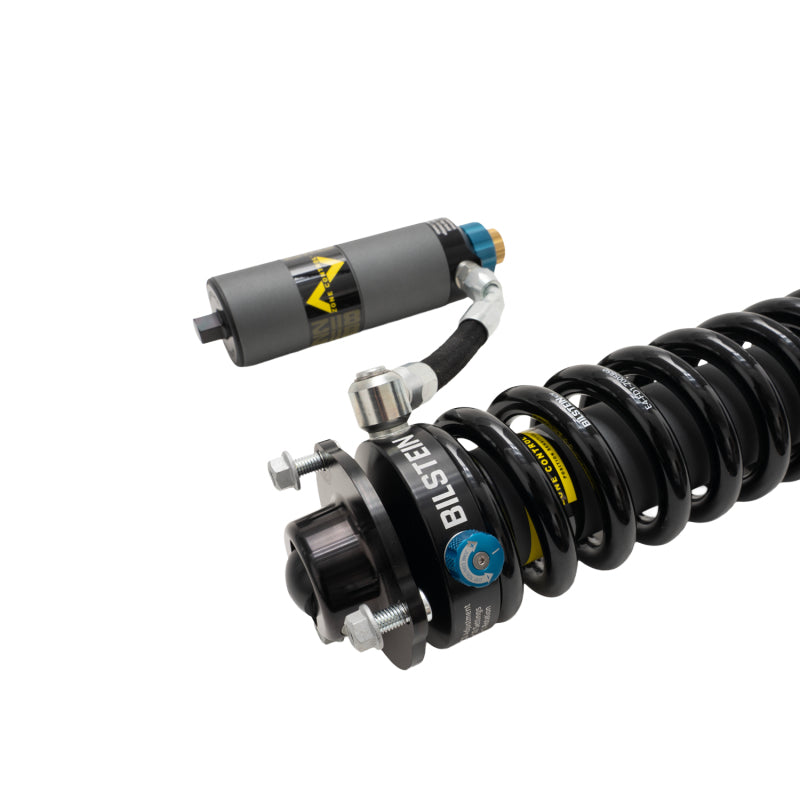

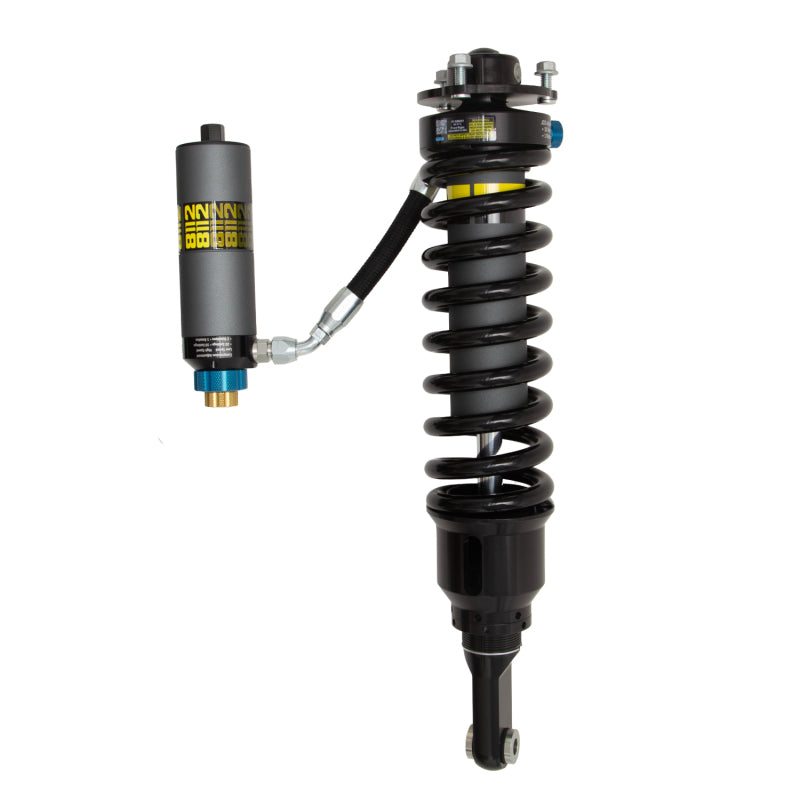

Bilstein 41-326251 is a B8 8112 (ZoneControl CR DSA+) front right corner module for the 2010-2024 Toyota 4Runner and 2010-2023 Lexus GX460. Unlike the bare dampers elsewhere in the B8 range, this is a complete corner: a 2.65 in. smooth-body monotube coilover with a remote reservoir, supplied with its 600 lbs/in. main spring already on a threaded seat. It is side-specific, this part is the front RIGHT corner only. ZoneControl CR is position-sensitive damping. Three independent pistons give three stages of compression and two stages of rebound, so the damper is soft over small inputs and progressively firmer deeper in the stroke. On top of that, external click adjusters set low-speed and high-speed compression independently, and the internal hydraulic bump stop (JCO) is adjustable too. The threaded spring seat gives 0-3 in. of ride height adjustment depending on application, and the 60 mm remote reservoir adds oil volume and cooling, it ships with a bolt-on anodised chassis mount for the reservoir. Bilstein specifies one per vehicle for this corner and it is sold individually. To do both front corners you also need the matching front left module; this listing does not include it, and no rear dampers are included. B8 8112 (ZoneControl CR DSA+), direct-fit position-sensitive adjustable coilover Front RIGHT corner only, side-specific; the front left is a separate part number Coil spring INCLUDED: 600 lbs/in. main spring on a threaded seat Ride height adjustable 0-3 in. via the threaded spring seat (application dependent) Triple-piston design: 3 stages of compression valving, 2 stages of rebound valving Click adjusters for independent low-speed and high-speed compression, plus adjustable internal hydraulic bump stop (JCO) 60 mm remote reservoir with bolt-on anodised chassis mount included Monotube, 2.65 in. smooth coilover body, 60 mm piston, 22.0 mm shaft, steel body Collapsed length 442.6 mm (17.43 in.), extended length 564.8 mm (22.24 in.) Lower mount 14.1 mm eye; sold individually, 1 per vehicle for this corner Bilstein Limited 2-Year Warranty; assembled in the United States
Specifications
| Line/Series |
B8 8112 (ZoneControl CR DSA+) |
| Type |
Front corner module - shock absorber and coil spring assembly |
| Position |
Front Right |
| Damper Design |
Monotube with remote reservoir |
| Body Design |
Smooth body coilover, 2.65 in. outside diameter, steel |
| Piston Diameter |
60 mm |
| Shaft Diameter |
22.0 mm |
| Adjustable |
Yes - click adjusters for low- and high-speed compression, plus adjustable internal bump stop (JCO) |
| Adjustment Range |
Ride height 0-3 in. via threaded spring seat (application dependent) |
| Spring Included |
Yes - 600 lbs/in. main spring |
| Reservoir |
Yes - 60 mm remote reservoir with bolt-on anodised chassis mount |
| Sold As |
Sold individually - one front right corner module (1 per vehicle) |
| Collapsed Length |
442.6 mm (17.43 in.) |
| Extended Length |
564.8 mm (22.24 in.) |
| Lower Mount |
Eye, 14.1 mm |
| Upper Mount |
Special |
| Finish |
Dampers EVO Grey / springs black |
| Country of Origin |
United States |
| Series |
B8 8112 (ZoneControl CR DSA+) |
| Design |
Monotube |
| Boot Included |
No |
| Spring Seat Included |
Yes |
| Quantity per Vehicle |
1 |
| Warranty |
Bilstein Limited 2-Year Warranty |
| Part Number |
41-326251 |
Documents: Installation Instructions (PDF) | Product Specifications Sheet (PDF) | Material Safety Data Sheet (PDF)
This part fits:
| Year |
Make |
Model |
Submodel |
| 2010-2023 |
Lexus |
GX460 |
Base |
| 2023 |
Lexus |
GX460 |
Black Line Edition |
| 2023 |
Lexus |
GX460 |
Luxury |
| 2010-2023 |
Lexus |
GX460 |
Premium |
| 2017-2024 |
Toyota |
4Runner |
TRD Off-Road |
| 2018-2024 |
Toyota |
4Runner |
TRD Off-Road Premium |
| 2010-2016 |
Toyota |
4Runner |
Trail |
| 2020-2021 |
Toyota |
4Runner |
Venture |
