BorgWarner EFR 6258 Turbocharger - V-Band 0.64 A/R IWG

BorgWarner EFR 6258 Turbocharger - T25 0.64 A/R, Internal Wastegate

BorgWarner SKU: BWA179150
Price
21% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

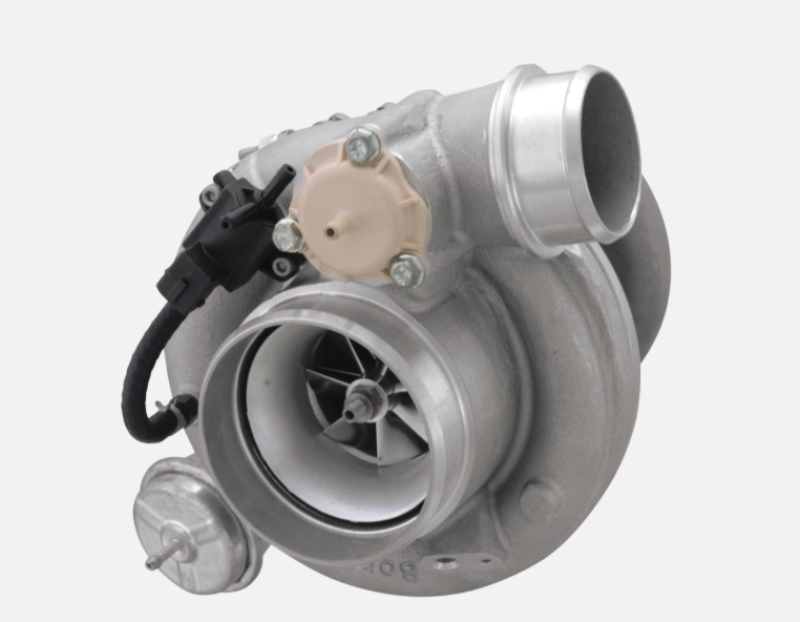

The EFR 6258-A is a complete BorgWarner EFR turbocharger on the B1 frame, rated for 225-450 hp. It pairs a 62mm forged milled compressor wheel (49mm inducer) with a 58mm Gamma-Ti turbine wheel spinning on dual ceramic ball bearings, in a 0.64 A/R T25 inlet, single scroll turbine housing with a V-band outlet and internal wastegate with actuator assembled. The compressor recirculation valve, boost control solenoid valve and oil inlet fitting come installed from the factory.

Specifications

Type Complete turbocharger
Series EFR 6258-A
Frame B1
Power Range 225-450 hp
Compressor Wheel Forged milled (FMW), 49mm inducer, 62mm outer diameter
Turbine Wheel Gamma-Ti, 51mm exducer, 58mm outer diameter
Turbine Housing 0.64 A/R, T25 inlet, single scroll, V-band outlet
Wastegate Internal, actuator assembled
Bearing Dual ceramic ball bearing with metal cage
Bearing Housing Cast iron
Super Core 179140
What's in the Box
  • Turbocharger with wastegate actuator
  • Oil inlet fitting
  • Compressor recirculation valve (CRV) and boost control solenoid valve (BCSV) assembled
Quantity 1
Part Number 179150

Documents: EFR 6258 Spec Sheet (PDF) | EFR Quick Reference Guide (PDF)

What power range is the EFR 6258 rated for?

  • The EFR 6258 is rated for 225-450 hp on the B1 frame.

What comes assembled on the turbo?

  • The turbo comes assembled with the wastegate actuator, oil inlet fitting, compressor recirculation valve and boost control solenoid valve.

What turbine housing does it use?

  • A 0.64 A/R single scroll housing with a T25 inlet and a V-band outlet, with an internal wastegate.

Does the compressor cover accept a speed sensor?

  • Yes. The compressor cover has a speed sensor provision; the EFR Speed Sensor Kit 179430 is sold separately.
