BorgWarner EFR 7163 Turbocharger - V-Band 0.85 A/R VOF Wastegate

BorgWarner EFR 7163 Turbocharger - V-Band 0.85 A/R, Internal Wastegate

BorgWarner SKU: BWA11639880006
Price
20% OFF
Only 5 Left – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

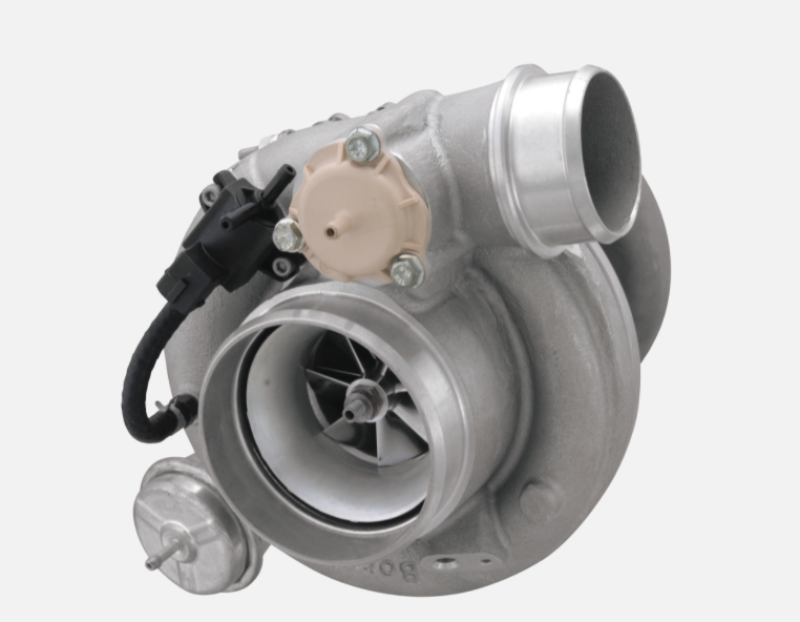

The EFR 7163-F(v) is a complete BorgWarner EFR turbocharger on the B1 frame, rated for 300-550 hp. It pairs a 71mm forged milled compressor wheel (57mm inducer) with a 63mm Gamma-Ti turbine wheel spinning on dual ceramic ball bearings, in a 0.85 A/R V-band inlet, single scroll turbine housing with a V-band outlet and internal wastegate with actuator assembled. The compressor recirculation valve, boost control solenoid valve and oil inlet fitting come installed from the factory.

Specifications

Type Complete turbocharger
Series EFR 7163-F(v)
Frame B1
Power Range 300-550 hp
Compressor Wheel Forged milled (FMW), 57mm inducer, 71mm outer diameter
Turbine Wheel Gamma-Ti, 56mm exducer, 63mm outer diameter
Turbine Housing 0.85 A/R, V-band inlet, single scroll, V-band outlet
Wastegate Internal, actuator assembled
Bearing Dual ceramic ball bearing with metal cage
Bearing Housing Aluminum (requires water cooling)
Super Core 11637105000
Optional Compressor Cover SX-E style with 90 degree outlet, 11711013004
What's in the Box
  • Turbocharger with wastegate actuator
  • Oil inlet fitting
  • Compressor recirculation valve (CRV) and boost control solenoid valve (BCSV) assembled
Quantity 1
Part Number 11639880006

Documents: EFR 7163 Spec Sheet (PDF) | EFR Quick Reference Guide (PDF)

What power range is the EFR 7163 rated for?

  • The EFR 7163 is rated for 300-550 hp on the B1 frame.

What comes assembled on the turbo?

  • The turbo comes assembled with the wastegate actuator, oil inlet fitting, compressor recirculation valve and boost control solenoid valve.

What turbine housing does it use?

  • A 0.85 A/R single scroll housing with a V-band inlet and a V-band outlet, with an internal wastegate.

Does the compressor cover accept a speed sensor?

  • Yes. The compressor cover has a speed sensor provision; the EFR Speed Sensor Kit 179430 is sold separately.
