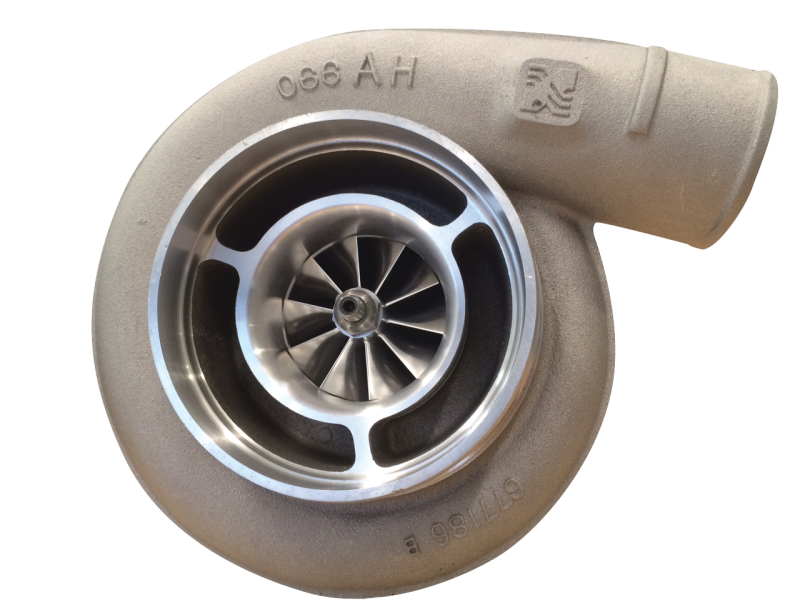

BorgWarner S400SX3 Turbocharger 74.56mm - T4 1.10 A/R

BorgWarner AirWerks S400SX3 Turbocharger - 74.6mm Inducer, 83mm Turbine, T4 1.10 A/R

BorgWarner SKU: BWA177101
Price
21% OFF
Only 2 Left – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

The AirWerks S400SX3 is a complete BorgWarner journal bearing turbocharger, with the S400SX3 line rated for 500-1050 hp. This version pairs a 100.17mm extended tip compressor wheel (74.56mm inducer) with an 83.47mm turbine wheel (74.29mm exducer) in a 1.10 A/R T4 inlet turbine housing. It runs on twin hydrodynamic journal bearings, and the compressor and turbine housings can be clocked to suit the installation.

Specifications

Type Complete turbocharger
Series AirWerks S400SX3
Power Range 500-1050 hp (S400SX3 line)
Compressor Wheel Extended tip, 74.56mm inducer, 100.17mm outer diameter
Turbine Wheel 74.29mm exducer, 83.47mm outer diameter
Turbine Housing 1.10 A/R, T4 inlet
Bearing Twin hydrodynamic journal bearings
Cartridge 176807
Service Kit 318396 (standard) or 14007110000 (360 degree thrust bearing)
Quantity 1
Part Number 177101

Documents: S400SX3 Spec Sheet (PDF)

What power range is the S400SX3 line rated for?

  • The AirWerks S400SX3 line is rated for 500-1050 hp; the right size for a build depends on the engine and boost target.

What turbine housing does it come with?

  • A 1.10 A/R housing with a T4 inlet.

What bearings does it use?

  • Twin hydrodynamic journal bearings, serviceable with the listed service kit.
