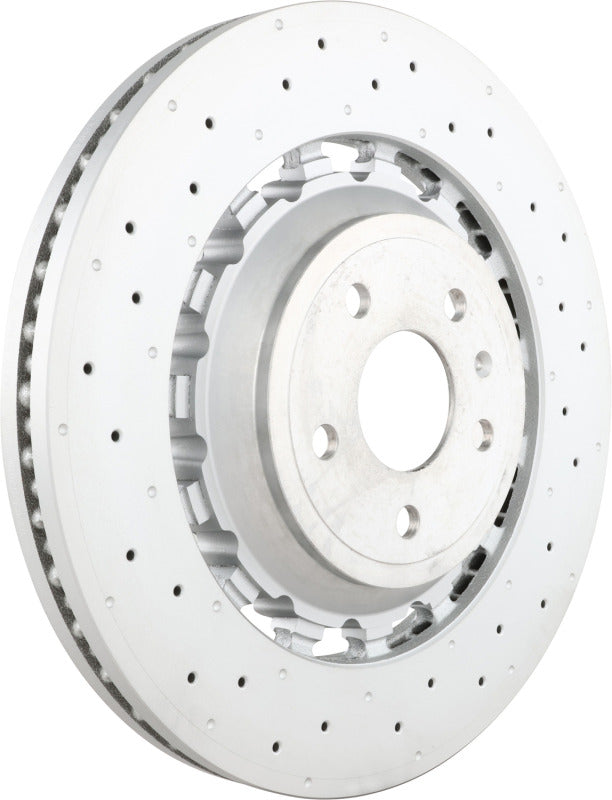

Brembo Prime Dual Cast Front Brake Rotor, 53 mm height, cross drilled face, angled view
Brembo Prime Dual Cast Front Brake Rotor, 53 mm height, front view, drilled face, hat
Brembo Prime Dual Cast Front Brake Rotor, 53 mm height, angled view, drilled face
Brembo Prime Dual Cast Front Brake Rotor, 53 mm height, front view, drilled face, large
Brembo Prime Dual Cast Front Brake Rotor, 53 mm height, side view, vented edge
Brembo Prime Dual Cast Front Brake Rotor, 53 mm height, side view, vented edge, narrow
Brembo Prime Dual Cast Front Brake Rotor, 53 mm height, cross drilled face, angled view
Brembo Prime Dual Cast Front Brake Rotor, 53 mm height, front view, drilled face, hat
Brembo Prime Dual Cast Front Brake Rotor, 53 mm height, angled view, drilled face
Brembo Prime Dual Cast Front Brake Rotor, 53 mm height, front view, drilled face, large
Brembo Prime Dual Cast Front Brake Rotor, 53 mm height, side view, vented edge
Brembo Prime Dual Cast Front Brake Rotor, 53 mm height, side view, vented edge, narrow

Brembo Prime Dual Cast Front Brake Rotor - Audi RS3 2017-2020 - 53 mm Height

Brembo OE SKU: BRE09.D174.53
Price
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandBrembo OE
SKUBRE09.D174.53
GTIN / UPC8020584316399
Manufacturer Part Number09.D174.53

Product Information

This Brembo Prime Line Dual Cast front brake disc joins a high carbon cast iron braking ring to an aluminium hat, lowering weight and thermal deformation against a one piece casting. The ventilated disc measures 370 mm across and 34 mm thick, with a 32.4 mm minimum thickness, a 53 mm height and a 65 mm centering bore on a 5 hole hub. It is UV painted against corrosion, carries ECE R90 type approval and ships one disc per box.

Specifications

Line Prime
Position Front
Construction Ventilated, Dual Cast (cast iron braking ring on aluminium hat)
Diameter 370 mm
Thickness / Min Thickness 34 mm / 32.4 mm
Height 53 mm
Centering Bore 65 mm
Bolt Holes 5
Coating UV painted
ECE R90 Certified
Quantity 1 (sold individually)
Warranty 24 months from delivery against defects in materials and workmanship
Part Number 09.D174.53

This part fits:

Year Make Model Submodel
2017-2020 Audi RS3 Base

Documents: Technical Specifications | Assembly Instructions

Is this sold as a pair?

  • No. Each box holds one disc, so order two to replace both sides of the front axle.

What is a Dual Cast disc?

  • The cast iron braking ring is joined to an aluminium hat, which lowers weight and reduces thermal deformation.

How do I tell the 370 mm Audi discs apart?

  • They share the 370 x 34 mm ring and differ in hat height; this one measures 53 mm.

What warranty does it carry?

  • 24 months from delivery against defects in materials and workmanship.
