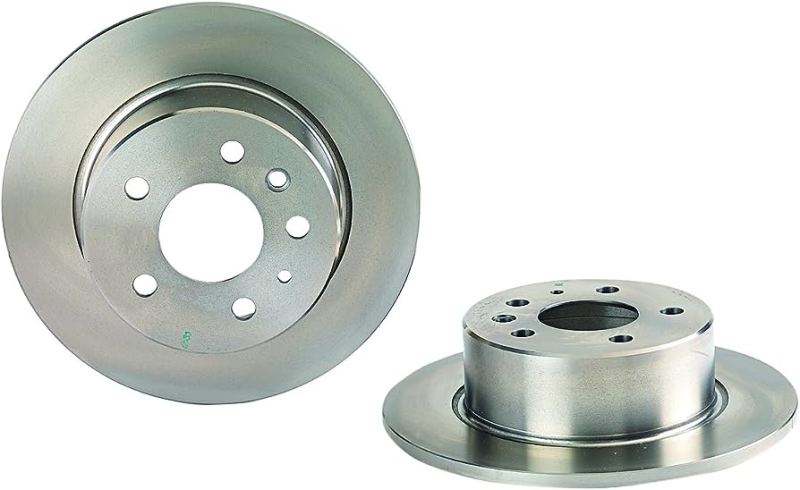

Brembo Prime Front Brake Rotor - Toyota Prius / Lexus CT200h 2010-2017 - UV Coated

Brembo OE SKU: BRE09.B494.11
Price
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandBrembo OE
SKUBRE09.B494.11
GTIN / UPC8020584217184
Manufacturer Part Number09.B494.11

Product Information

This Brembo Prime Line front brake disc is a UV painted ventilated rotor measuring 255 mm across and 25 mm thick, with a 22 mm minimum thickness, a 49 mm height and a 55 mm centering bore on a 5-hole hub, tightened to 103 Nm. The braking surface is high-carbon cast iron and the UV paint guards against corrosion. It carries ECE R90 homologation and ships one rotor per box.

Specifications

Line Prime
Position Front
Construction Ventilated
Diameter 255 mm
Thickness / Min Thickness 25 mm / 22 mm
Height 49 mm
Centering Bore 55 mm
Bolt Holes 5
Tightening Torque 103 Nm
Material High-carbon cast iron braking surface
Coating UV painted
ECE R90 Certified
Quantity 1 (sold individually)
Warranty 24 months from delivery against defects in materials and workmanship
Part Number 09.B494.11

This part fits:

Year Make Model Submodel
2011-2017 Lexus CT200h Base
2014-2017 Lexus CT200h F Sport
2010-2011 Toyota Prius Base
2012-2015 Toyota Prius Five
2012-2015 Toyota Prius Four
2015 Toyota Prius One
2015 Toyota Prius Persona Series
2012-2015 Toyota Prius Three
2012-2015 Toyota Prius Two
2012-2015 Toyota Prius Plug-In Base

Documents: Technical Specifications | Assembly Instructions

Is this sold as a pair?

  • No. Each box holds one rotor, so order two to do both sides of the axle.

When does the rotor need replacing?

  • A new rotor is 25 mm thick; replace it once it wears to the 22 mm minimum thickness.

What warranty does it carry?

  • 24 months from delivery against defects in materials and workmanship, for the original purchaser.
