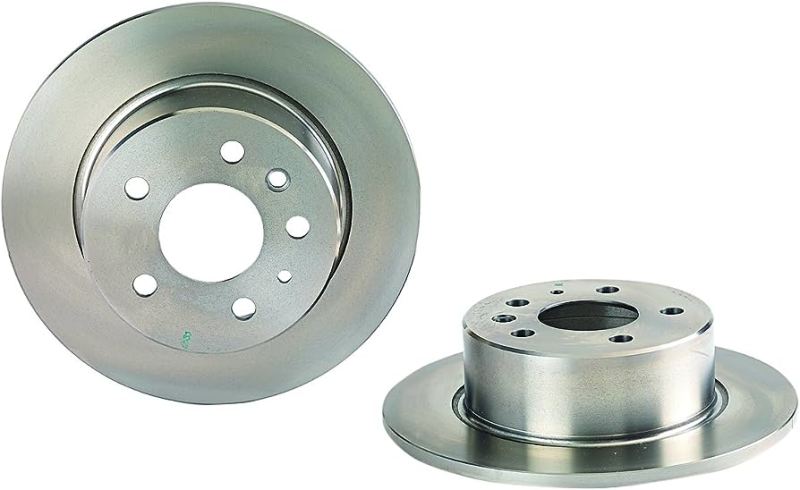

Brembo Prime Front Brake Rotor - Volkswagen Jetta / Golf / Beetle 2010-2019 - UV Coated

Brembo OE SKU: BRE09.9167.11
Price
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandBrembo OE
SKUBRE09.9167.11
GTIN / UPC8020584022849
Manufacturer Part Number09.9167.11

Product Information

This Brembo Prime Line front brake disc is a UV painted ventilated rotor measuring 280 mm across and 22 mm thick, with a 19 mm minimum thickness, a 50 mm height and a 65 mm centering bore on a 5-hole hub, tightened to 120 Nm. The braking surface is high-carbon cast iron and the UV paint guards against corrosion. It carries ECE R90 homologation, ships one rotor per box and comes with fastening screws.

Specifications

Line Prime
Position Front
Construction Ventilated
Diameter 280 mm
Thickness / Min Thickness 22 mm / 19 mm
Height 50 mm
Centering Bore 65 mm
Bolt Holes 5
Tightening Torque 120 Nm
Material High-carbon cast iron braking surface
Coating UV painted
ECE R90 Certified
Quantity 1 (sold individually)
Warranty 24 months from delivery against defects in materials and workmanship
Part Number 09.9167.11

This part fits:

Year Make Model Submodel
2017 Volkswagen Beetle #PinkBeetle
2012-2015 Volkswagen Beetle Base
2015, 2017 Volkswagen Beetle Classic
2018 Volkswagen Beetle Coast
2016 Volkswagen Beetle Denim
2016-2018 Volkswagen Beetle Dune
2019 Volkswagen Beetle Final Edition SE
2019 Volkswagen Beetle Final Edition SEL
2015-2016 Volkswagen Beetle Fleet Edition
2016-2019 Volkswagen Beetle S
2016-2019 Volkswagen Beetle SE
2016-2017 Volkswagen Beetle SEL
2013-2015 Volkswagen Beetle TDI
2016 Volkswagen Beetle Wolfsburg Edition
2010-2013 Volkswagen Golf Base
2010-2013 Volkswagen Golf TDI
2011, 2015 Volkswagen Jetta Base
2013-2014 Volkswagen Jetta Hybrid
2013-2014 Volkswagen Jetta Hybrid SE
2013-2014 Volkswagen Jetta Hybrid SEL
2014-2016 Volkswagen Jetta Hybrid SEL Premium
2019 Volkswagen Jetta R-Line
2011-2019 Volkswagen Jetta S
2011-2019 Volkswagen Jetta SE
2018 Volkswagen Jetta SE Sport
2011-2019 Volkswagen Jetta SEL
2016, 2019 Volkswagen Jetta SEL Premium
2015-2018 Volkswagen Jetta Sport
2011-2014 Volkswagen Jetta TDI
2012-2014 Volkswagen Jetta TDI Premium
2015 Volkswagen Jetta TDI S
2015 Volkswagen Jetta TDI SE
2015 Volkswagen Jetta TDI SEL
2018 Volkswagen Jetta Wolfsburg Edition

Documents: Technical Specifications | Assembly Instructions

Is this sold as a pair?

  • No. Each box holds one rotor, so order two to do both sides of the axle.

When does the rotor need replacing?

  • A new rotor is 22 mm thick; replace it once it wears to the 19 mm minimum thickness.

Are fastening screws included?

  • Yes, fastening screws come with the rotor.

What warranty does it carry?

  • 24 months from delivery against defects in materials and workmanship, for the original purchaser.
