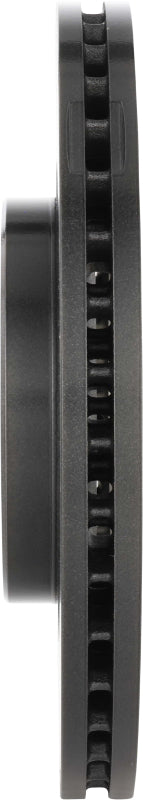

Brembo Prime UV Coated Front Brake Rotor, disc edge, side view
Brembo Prime UV Coated Front Brake Rotor, front view, plain face
Brembo Prime UV Coated Front Brake Rotor, angled view, vented edge, plain face
Brembo Prime UV Coated Front Brake Rotor, front view, plain face, alternate shot
Brembo Prime UV Coated Front Brake Rotor, side view, vented edge
Brembo Prime UV Coated Front Brake Rotor, disc edge, side view
Brembo Prime UV Coated Front Brake Rotor, front view, plain face
Brembo Prime UV Coated Front Brake Rotor, angled view, vented edge, plain face
Brembo Prime UV Coated Front Brake Rotor, front view, plain face, alternate shot
Brembo Prime UV Coated Front Brake Rotor, side view, vented edge

Brembo Prime UV Coated Front Brake Rotor - Mercedes-Benz G550 2019-2025

Brembo OE SKU: BRE09.D761.11
Price
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandBrembo OE
SKUBRE09.D761.11
GTIN / UPC8020584313121
Manufacturer Part Number09.D761.11

Product Information

This Brembo Prime front brake disc is a ventilated OE-equivalent replacement rotor measuring 355 mm across and 32 mm thick, with a 29.4 mm minimum thickness, a 56.7 mm height and an 85 mm centering bore on a 5-hole hub. It is cast in high-carbon iron and UV painted on the outer edges and hub with a water-based, solvent-free coating for corrosion resistance. It carries ECE R90 homologation. Each box holds one rotor. The matching rear disc is 09.D764.11.

Specifications

Line Prime
Position Front
Construction Ventilated
Diameter 355 mm
Thickness / Min Thickness 32 mm / 29.4 mm
Height 56.7 mm
Centering Bore 85 mm
Bolt Holes 5
Material High-carbon cast iron
Coating UV painted outer edges and hub
ECE R90 Certified
Quantity 1 (sold individually)
Warranty 24 months from delivery against defects in materials and workmanship
Part Number 09.D761.11

This part fits:

Year Make Model Submodel
2019-2025 Mercedes-Benz G550 Base

Documents: Technical Specifications | Assembly Instructions

Is this sold as a pair?

  • No. Each box holds one rotor, so order two to replace both sides of the front axle.

When does the rotor need replacing?

  • A new rotor is 32 mm thick; replace it once it wears to the 29.4 mm minimum thickness.

What is the matching rear rotor?

  • 09.D764.11, a 345 x 22 mm ventilated Prime disc for the same G550.

What warranty does it carry?

  • 24 months from delivery against defects in materials and workmanship, for the original purchaser.
