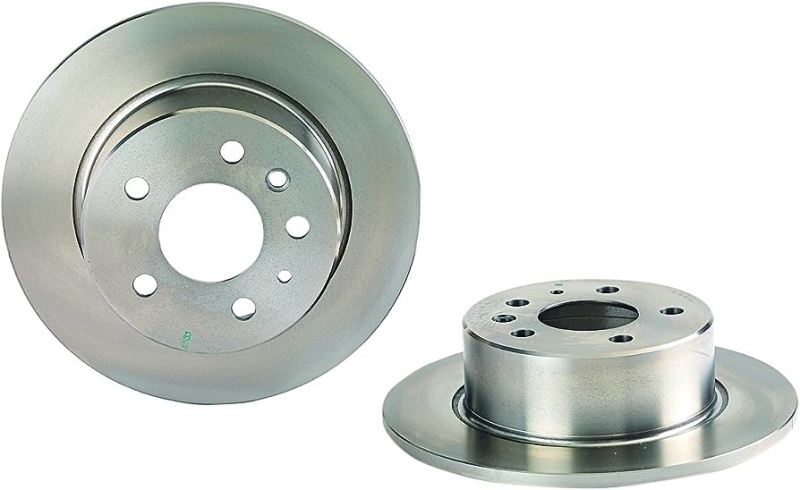

Brembo Prime Rear Brake Rotor, 345 mm, uv coated, face view, hub side
Brembo Prime Rear Brake Rotor, 345 mm, uv coated, pair, angled and side view
Brembo Prime Rear Brake Rotor, 345 mm, uv coated, angled view, hub side
Brembo Prime Rear Brake Rotor, 345 mm, uv coated, face view, hub side, alternate shot
Brembo Prime Rear Brake Rotor, 345 mm, uv coated, side profile, vented edge
Brembo Prime Rear Brake Rotor, 345 mm, uv coated, side profile, vented edge, alternate shot
Brembo Prime Rear Brake Rotor, 345 mm, uv coated, face view, hub side
Brembo Prime Rear Brake Rotor, 345 mm, uv coated, pair, angled and side view
Brembo Prime Rear Brake Rotor, 345 mm, uv coated, angled view, hub side
Brembo Prime Rear Brake Rotor, 345 mm, uv coated, face view, hub side, alternate shot
Brembo Prime Rear Brake Rotor, 345 mm, uv coated, side profile, vented edge
Brembo Prime Rear Brake Rotor, 345 mm, uv coated, side profile, vented edge, alternate shot

Brembo Prime Rear Brake Rotor - BMW X5 / X6 2007-2019 - 345 mm, UV Coated

Brembo OE SKU: BRE09.9924.11
Price
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandBrembo OE
SKUBRE09.9924.11
GTIN / UPC8020584992418
Manufacturer Part Number09.9924.11

Product Information

This Brembo Prime Line rear brake disc is an OE-equivalent UV painted ventilated rotor measuring 345 mm across and 24 mm thick, with a 22.4 mm minimum thickness, a 79 mm height and a 75 mm centering bore on a 5-hole hub (140 Nm tightening torque). The braking surface is high-carbon cast iron. The UV paint protects the outer edge and hub against corrosion. It carries ECE R90 homologation, ships one rotor per box and comes with fastening screws.

Specifications

Line Prime
Position Rear
Construction Ventilated
Diameter 345 mm
Thickness / Min Thickness 24 mm / 22.4 mm
Height 79 mm
Centering Bore 75 mm
Bolt Holes 5
Tightening Torque 140 Nm
Material High-carbon cast iron braking surface
Coating UV painted
ECE R90 Certified
Quantity 1 (sold individually)
Warranty 24 months from delivery against defects in materials and workmanship
Part Number 09.9924.11

This part fits:

Year Make Model Submodel
2007-2008 BMW X5 3.0si
2007-2008 BMW X5 4.8i
2010-2013, 2015, 2018 BMW X5 M
2014-2015, 2018 BMW X5 sDrive35i
2009-2010 BMW X5 xDrive30i
2009-2015, 2018 BMW X5 xDrive35d
2011-2015, 2018 BMW X5 xDrive35i
2018 BMW X5 xDrive40e
2009-2010 BMW X5 xDrive48i
2011-2018 BMW X5 xDrive50i
2010-2011 BMW X6 ActiveHybrid
2010-2018 BMW X6 M
2015-2019 BMW X6 sDrive35i
2008-2019 BMW X6 xDrive35i
2008-2019 BMW X6 xDrive50i

Documents: Technical Specifications | Assembly Instructions

Is this rotor sold individually or as a pair?

  • It is sold individually, one rotor per box. Order two to replace both sides of the rear axle.

What is the minimum thickness?

  • The minimum thickness is 22.4 mm. Replace the rotor once it wears below that figure.

Does it come with hardware?

  • Yes. Fastening screws are included in the box.

Is it a direct replacement for the original rotor?

  • Yes. It is a Prime Line OE-equivalent disc with a 345 mm diameter, 24 mm thickness and 75 mm centering bore.

What warranty does it carry?

  • It is covered for 24 months from delivery against defects in materials and workmanship.
