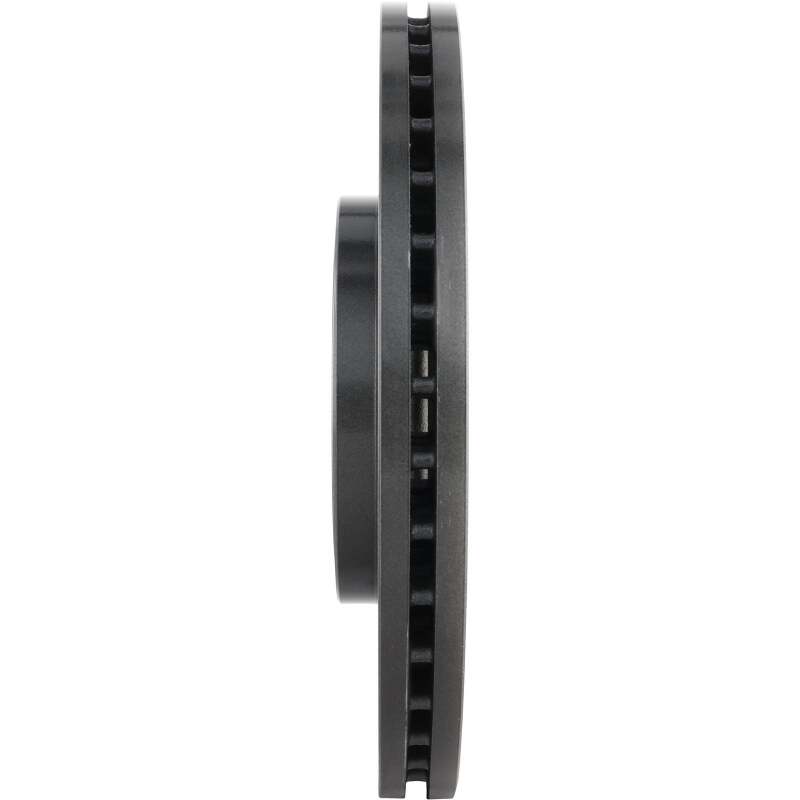

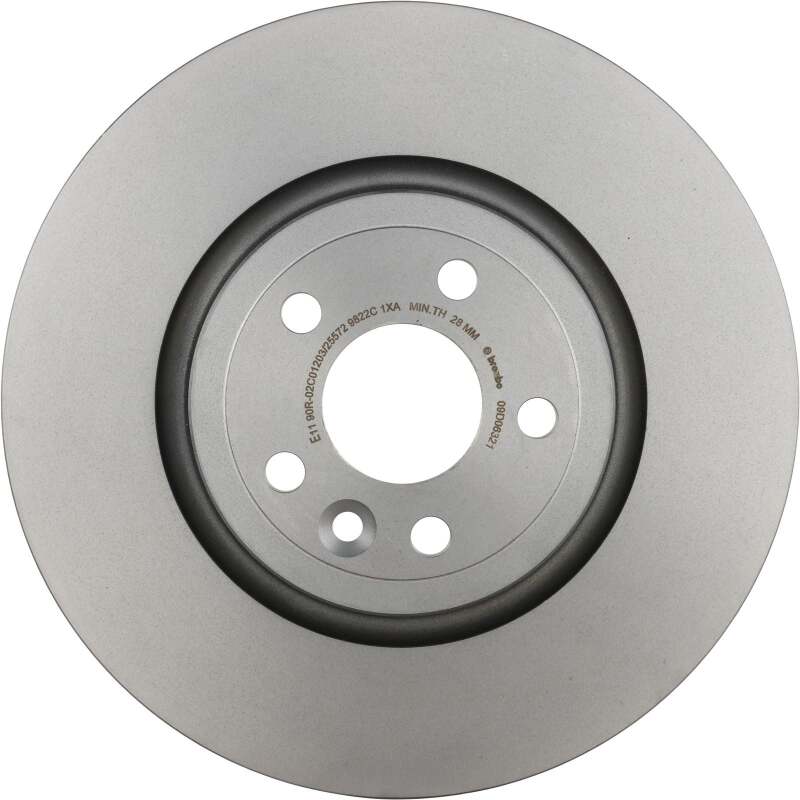

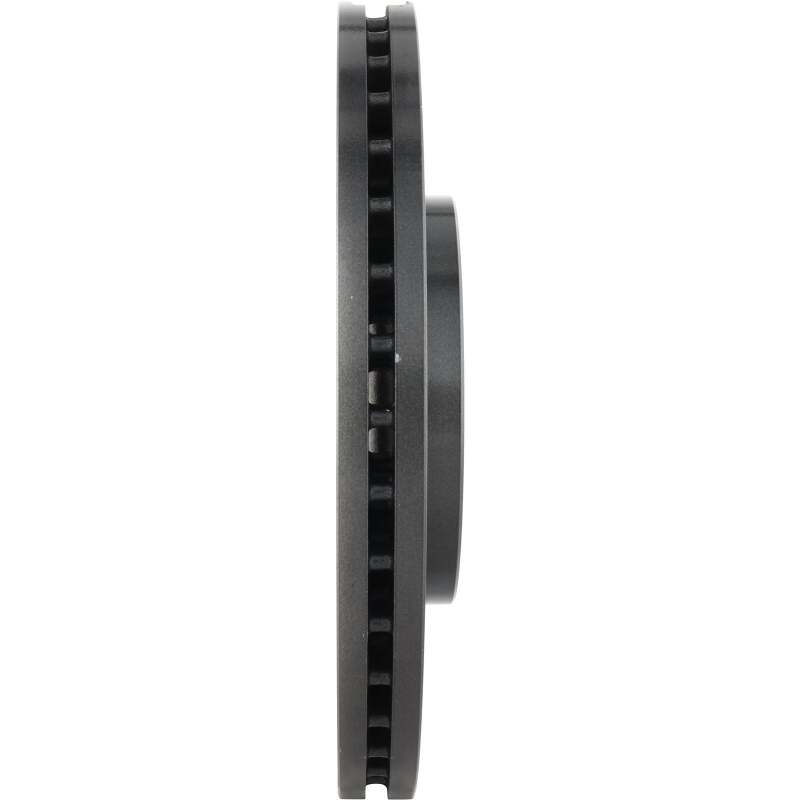

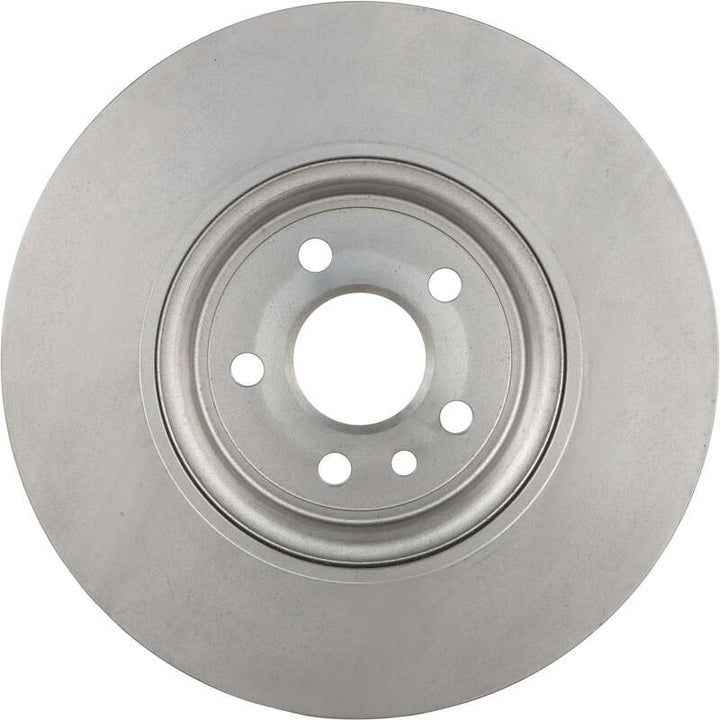

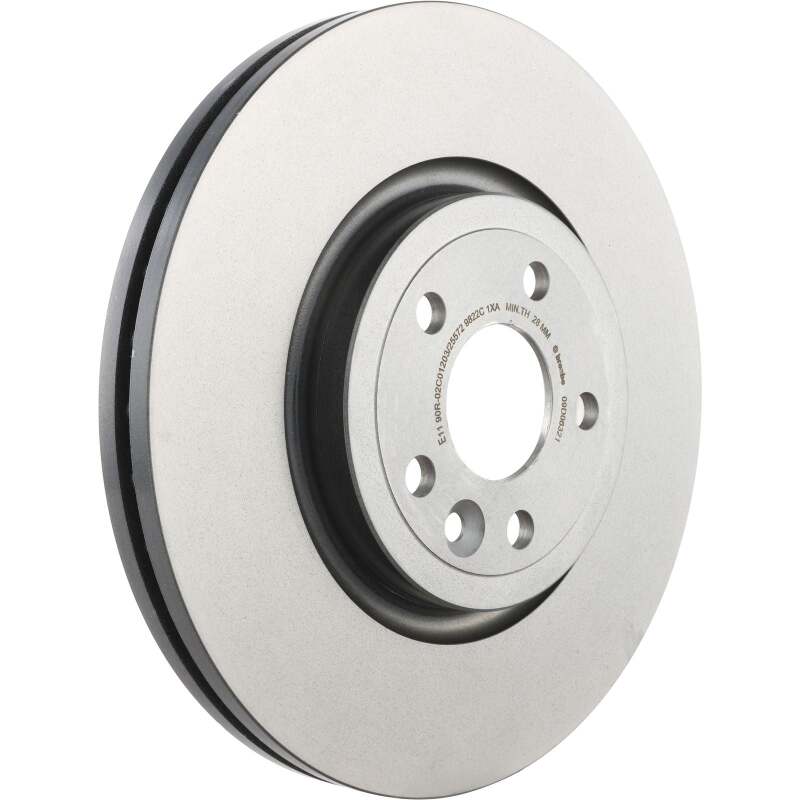

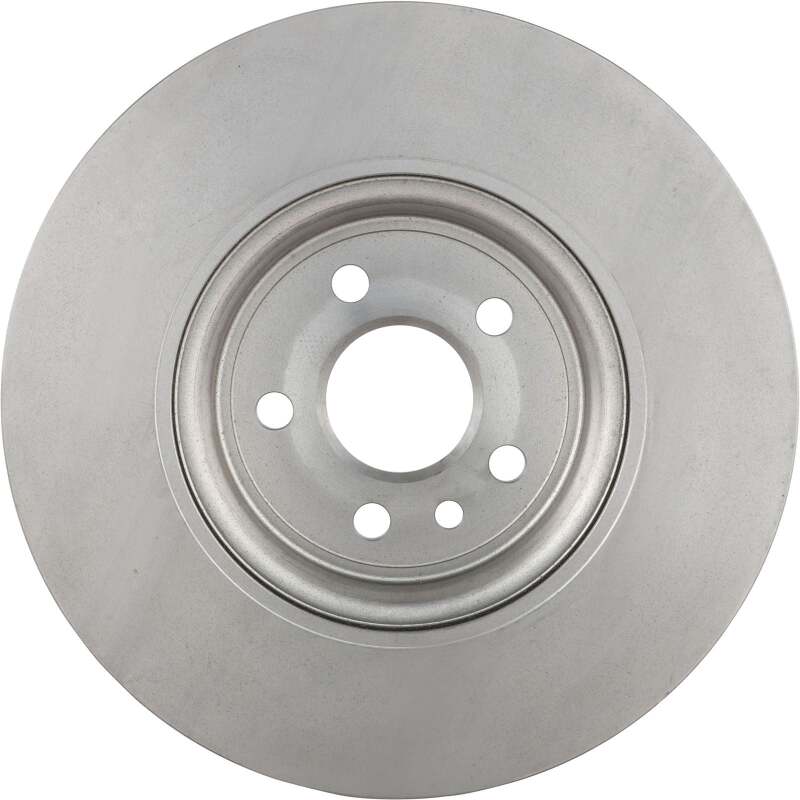

Brembo Prime Front Brake Disc 325x30mm - Jaguar F-Pace / Land Rover Range Rover Velar 2017-2020 - UV Coated
Brembo Prime Front Brake Disc 325x30mm - Jaguar F-Pace / Land Rover Range Rover Velar 2017-2020 - UV Coated, image 2
Brembo Prime Front Brake Disc 325x30mm - Jaguar F-Pace / Land Rover Range Rover Velar 2017-2020 - UV Coated, image 3
Brembo Prime Front Brake Disc 325x30mm - Jaguar F-Pace / Land Rover Range Rover Velar 2017-2020 - UV Coated, image 4
Brembo Prime Front Brake Disc 325x30mm - Jaguar F-Pace / Land Rover Range Rover Velar 2017-2020 - UV Coated, image 5
Brembo Prime Front Brake Disc 325x30mm - Jaguar F-Pace / Land Rover Range Rover Velar 2017-2020 - UV Coated
Brembo Prime Front Brake Disc 325x30mm - Jaguar F-Pace / Land Rover Range Rover Velar 2017-2020 - UV Coated, image 2
Brembo Prime Front Brake Disc 325x30mm - Jaguar F-Pace / Land Rover Range Rover Velar 2017-2020 - UV Coated, image 3
Brembo Prime Front Brake Disc 325x30mm - Jaguar F-Pace / Land Rover Range Rover Velar 2017-2020 - UV Coated, image 4
Brembo Prime Front Brake Disc 325x30mm - Jaguar F-Pace / Land Rover Range Rover Velar 2017-2020 - UV Coated, image 5

Brembo Prime Front Brake Disc 325x30mm - Jaguar F-Pace / Land Rover Range Rover Velar 2017-2020 - UV Coated

Brembo OE SKU: BRE09.D063.21
Price
In Stock – Ready to Ship
Shipping calculated at checkout.
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check

The 09.D063.21 is a Brembo Prime front disc for the Jaguar F-Pace and Land Rover Range Rover Velar: 325 mm diameter, 30 mm thick new, ventilated, 28 mm minimum thickness, cast in high-carbon iron. The higher carbon content raises the damping coefficient of the alloy, it soaks up more of the vibration that turns into squeal, and conducts heat out of the braking surface faster than standard grey iron. It uses Pillar Venting Technology, with pillars rather than straight vanes separating the friction rings. Brembo’s UV paint is a water-based, solvent-free coating cured under ultraviolet light and applied to the hat, the outer edges and the vane openings, every surface the pads never sweep. It is what separates a Prime UV painted disc from a plain uncoated one: the uncoated casting begins surface-rusting within days of fitting, while the coated disc keeps a clean hat and clear vanes for its service life.

Check the part number, not the tape measure. Brembo also builds 09.D063.11, which is dimensionally identical to this disc, same 325 mm diameter and 30 mm thickness, but is a different application (Jaguar XE and XF) built to a different OE reference. The two are not interchangeable despite measuring the same, so confirm against the fitment list below. In Brembo’s numbering the digit before the final one is a design/variant index, not a finish code; both parts end in 1, which is what designates the UV painted finish.

Specifications

Product Line Brembo Prime
Position Front
Construction One-piece high-carbon cast iron
Finish UV painted
Outside Diameter 325 mm
Thickness (New) 30 mm
Minimum Thickness 28 mm
Overall Height 48 mm
Centering Bore 64 mm
Bolt Holes 5
Disc Type Ventilated
Ventilation Pillar Venting Technology (PVT)
Type Approval ECE R90
EAN 8020584235713
Part Number 09.D063.21

This part fits:

Year Make Model Submodel
2017-2020 Jaguar F-Pace Base
2020 Jaguar F-Pace Checkered Flag
2017 Jaguar F-Pace First Edition
2018-2020 Jaguar F-Pace Portfolio
2017-2020 Jaguar F-Pace Premium
2017-2020 Jaguar F-Pace Prestige
2017-2020 Jaguar F-Pace R-Sport
2017-2019 Jaguar F-Pace S
2019 Jaguar F-Pace SVR
2018-2019 Land Rover Range Rover Velar Base
2018 Land Rover Range Rover Velar First Edition
2018-2019 Land Rover Range Rover Velar R-Dynamic HSE
2020 Land Rover Range Rover Velar R-Dynamic S
2018-2019 Land Rover Range Rover Velar R-Dynamic SE
2018-2020 Land Rover Range Rover Velar S
2018 Land Rover Range Rover Velar SE
