Brembo OE SKU: BRE09.B848.33
Price
In Stock – Ready to Ship
Shipping calculated at checkout.
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check

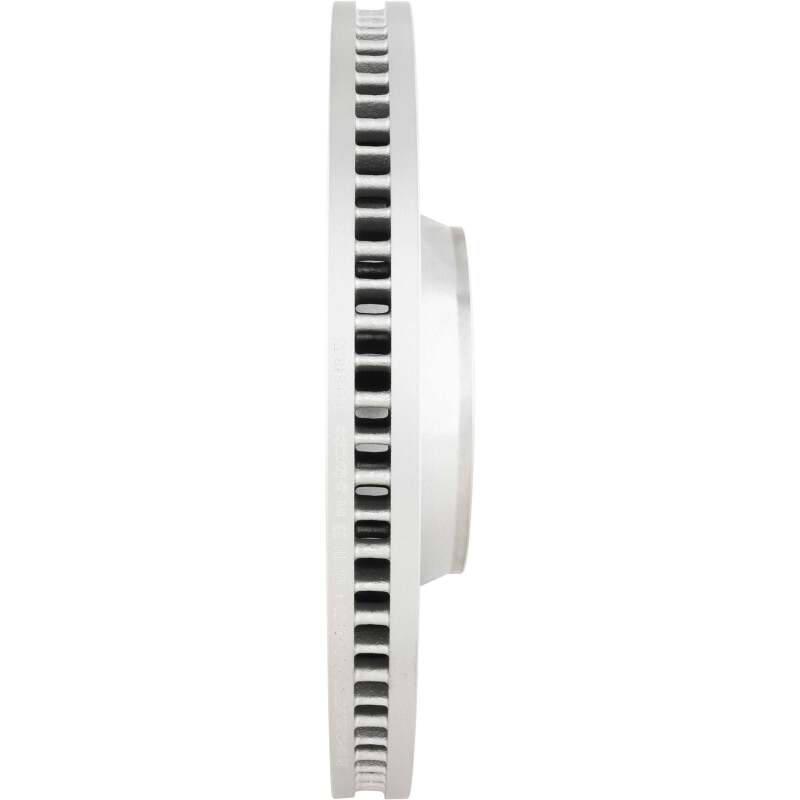

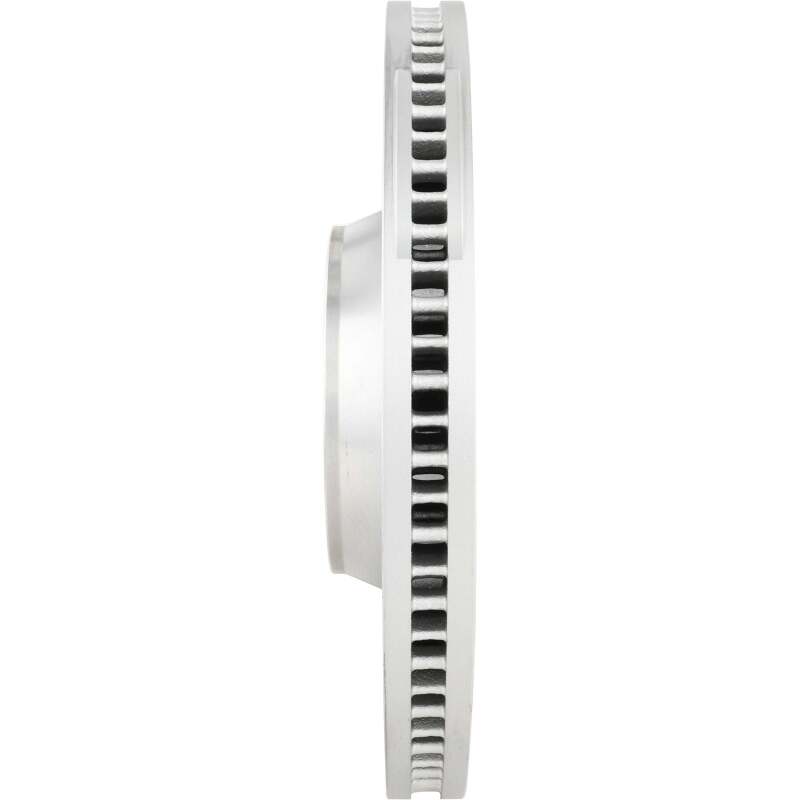

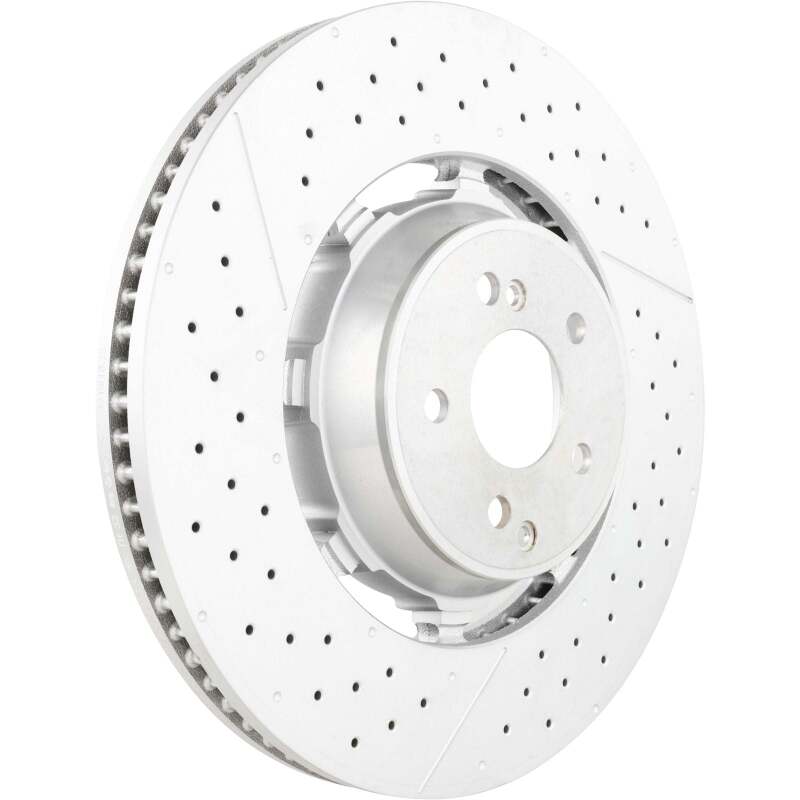

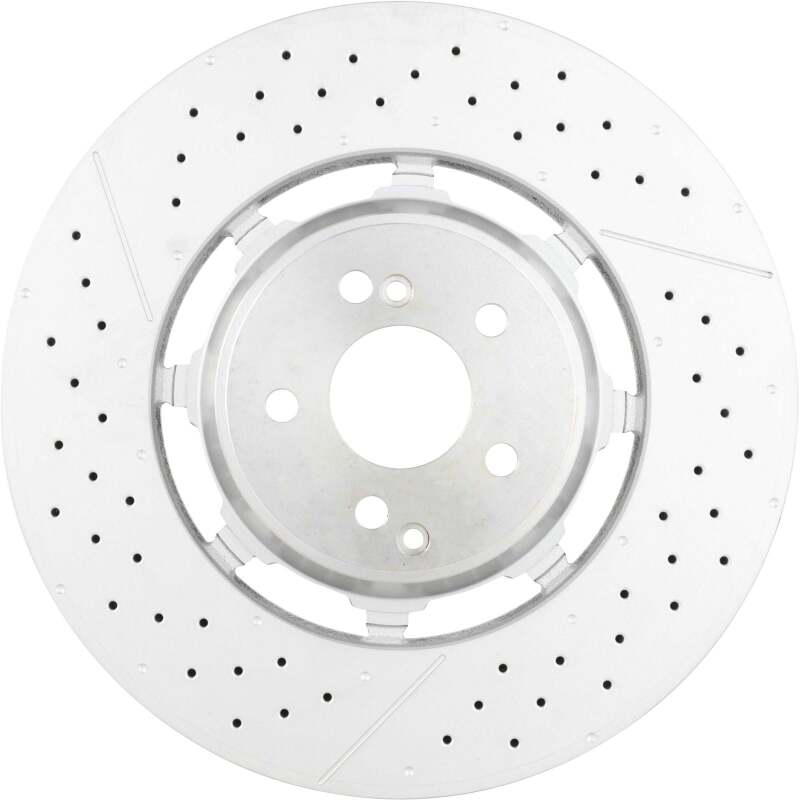

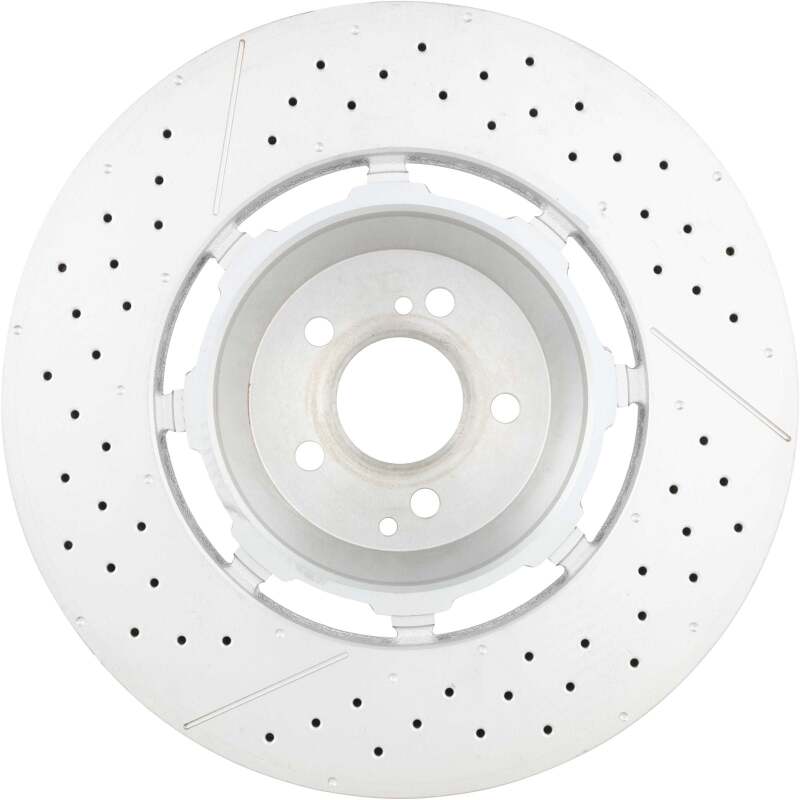

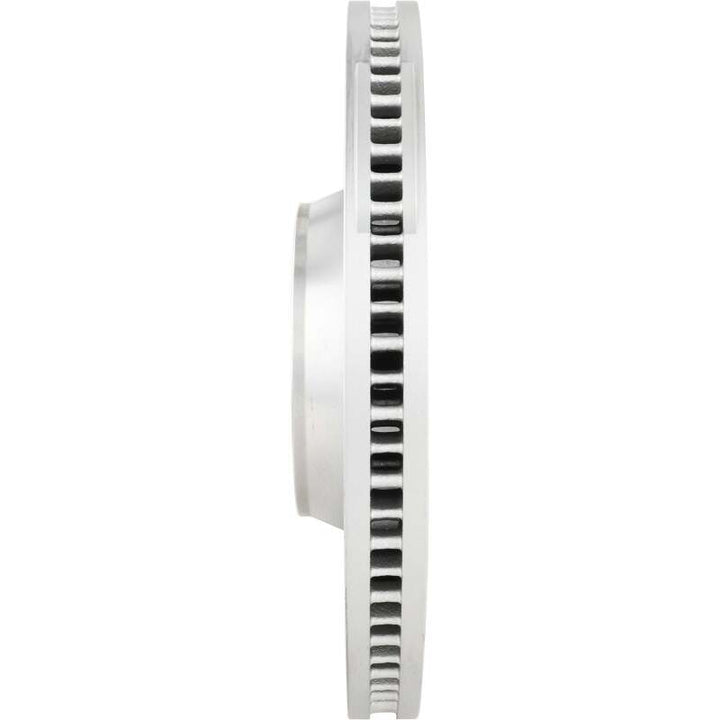

The 09.B848.33 is a 390 mm Dual Cast front disc from Brembo’s Prime line, built for the big-brake Mercedes-AMG cars. Dual Cast is a bi-material construction: the high-carbon iron braking ring is cast directly around an aluminium hat, so the two metals are joined in the foundry rather than pinned or bolted together afterwards. Replacing the iron hat with aluminium takes a significant mass out of a rotor this size, mass that is both unsprung and rotating, while the friction surface stays iron and keeps behaving like iron when it is hot. Because the aluminium hat and the iron ring expand at different rates, the joint is designed to let the ring grow radially, which limits the coning that makes a heat-soaked one-piece disc feel long and soft at the pedal.

Note that Brembo builds a second Dual Cast disc, 09.C127.33, to exactly the same published dimensions, 390 mm diameter, 36 mm thick, 64.5 mm height, 67 mm centering bore, 5 holes, for the S-Class range. The two are different part numbers with different applications and are not interchangeable on dimensions alone; check the fitment list below rather than measuring the disc off the car. This is the front disc; the matching rear for the AMG GT and S-Class cars is 09.C128.33.

Specifications

Product Line Brembo Prime
Position Front
Construction Dual Cast — high-carbon iron ring with cast-in aluminium hat
Finish Bi-material, corrosion treated
Outside Diameter 390 mm
Thickness (New) 36 mm
Minimum Thickness 33 mm
Overall Height 64.5 mm
Centering Bore 67 mm
Bolt Holes 5
Disc Type Ventilated
Type Approval ECE R90
EAN 8020584315910
Part Number 09.B848.33

This part fits:

Year Make Model
2021-2023 Mercedes-Benz AMG GT 43
2019-2023 Mercedes-Benz AMG GT 53
2019-2021,2023-2024 Mercedes-Benz AMG GT 63
2019-2021,2023 Mercedes-Benz AMG GT 63 S
2016-2021 Mercedes-Benz C63 AMG
2015-2021,2023 Mercedes-Benz C63 AMG S
2018-2021 Mercedes-Benz E63 AMG S
2018-2021 Mercedes-Benz GLC63 AMG
2018-2021 Mercedes-Benz GLC63 AMG S
2013-2019 Mercedes-Benz SL63 AMG
2013-2018 Mercedes-Benz SL65 AMG
