Brembo Prime Dual Cast Front Brake Rotor - Mercedes-Benz S63 AMG / S65 AMG / Maybach S650 2014-2021

Brembo OE SKU: BRE09.C127.33
Price
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

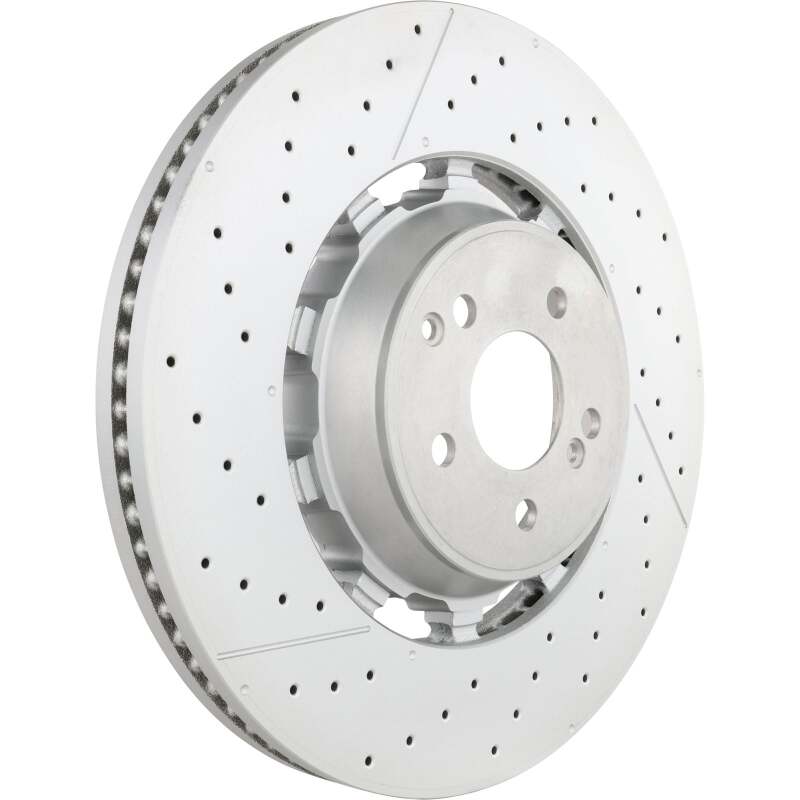

This Brembo Prime Line front brake disc uses Dual Cast construction: a ventilated cast iron braking ring with an aluminium hat, which lowers rotating and unsprung weight. It measures 390 mm across and 36 mm thick, wears to a 33 mm minimum, and stands 64.5 mm tall on a 67 mm centering bore with 5 holes. The disc carries ECE R90 type approval and replaces OE A2224212612 on the AMG S-Class.

Specifications

Type Brake rotor (disc)
Line Prime
Position Front
Construction Ventilated, dual cast (aluminium hat, cast iron braking surface)
Diameter 390 mm
Thickness / Min Thickness 36 mm / 33 mm
Height 64.5 mm
Centering Bore 67 mm
Bolt Holes 5
ECE R90 Certified
Fitment Notes For vehicles equipped with 390 mm front brake discs
Quantity 1 (sold individually)
Warranty 24 months from delivery against defects in materials and workmanship
Part Number 09.C127.33

This part fits:

Year Make Model Submodel
2018-2020 Mercedes-Benz Maybach S650 Base
2018-2021 Mercedes-Benz S63 AMG 4MATIC
2014-2017 Mercedes-Benz S63 AMG Base
2015-2020 Mercedes-Benz S65 AMG Base

Documents: Technical Specifications | Assembly Instructions

Is this sold as a pair?

  • No. Each box holds one rotor, so order two to replace both front discs.

Will it fit an S560 or S450?

  • No. It fits the AMG S63, S65 and Maybach S650 front brakes.

When should it be replaced?

  • A new disc is 36 mm thick; replace it at the 33 mm minimum thickness.

What warranty does it carry?

  • 24 months from delivery against defects in materials and workmanship.
