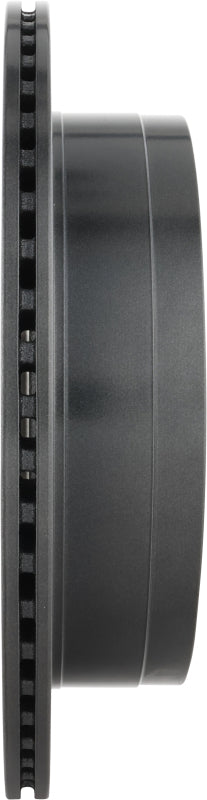

This Brembo Prime rear brake disc is a ventilated OE-equivalent replacement rotor measuring 345 mm across and 18 mm thick, with a 16 mm minimum thickness, a 76 mm height and a 112 mm centering bore on a 5-hole hub. It is UV painted on the outer edges and hub with a water-based, solvent-free coating for corrosion resistance and carries ECE R90 homologation. Each box holds one rotor. It replaces the earlier part number 09.A967.11; the drilled Xtra version is 09.D618.1X.
Specifications
| Line |
Prime |
| Position |
Rear |
| Construction |
Ventilated |
| Diameter |
345 mm |
| Thickness / Min Thickness |
18 mm / 16 mm |
| Height |
76 mm |
| Centering Bore |
112 mm |
| Bolt Holes |
5 |
| Material |
Cast iron |
| Coating |
UV painted outer edges and hub |
| ECE R90 |
Certified |
| Replaces |
09.A967.11 |
| Quantity |
1 (sold individually) |
| Warranty |
24 months from delivery against defects in materials and workmanship |
| Part Number |
09.D618.11 |
This part fits:
| Year |
Make |
Model |
Submodel |
| 2008-2011, 2013-2021 |
Lexus |
LX570 |
Base |
| 2008-2011, 2013-2021 |
Toyota |
Land Cruiser |
Base |
| 2020-2021 |
Toyota |
Land Cruiser |
Heritage Edition |
| 2008-2022 |
Toyota |
Sequoia |
Limited |
| 2021-2022 |
Toyota |
Sequoia |
Nightshade |
| 2008-2022 |
Toyota |
Sequoia |
Platinum |
| 2008-2022 |
Toyota |
Sequoia |
SR5 |
| 2020-2022 |
Toyota |
Sequoia |
TRD Pro |
| 2018-2022 |
Toyota |
Sequoia |
TRD Sport |
| 2014-2021 |
Toyota |
Tundra |
1794 Edition |
| 2007-2013 |
Toyota |
Tundra |
Base |
| 2007-2021 |
Toyota |
Tundra |
Limited |
| 2021 |
Toyota |
Tundra |
Nightshade |
| 2010-2021 |
Toyota |
Tundra |
Platinum |
| 2014-2021 |
Toyota |
Tundra |
SR |
| 2007-2011, 2014-2021 |
Toyota |
Tundra |
SR5 |
| 2021 |
Toyota |
Tundra |
Trail |
| 2015-2017, 2019-2021 |
Toyota |
Tundra |
TRD Pro |
Documents: Technical Specifications | Assembly Instructions
