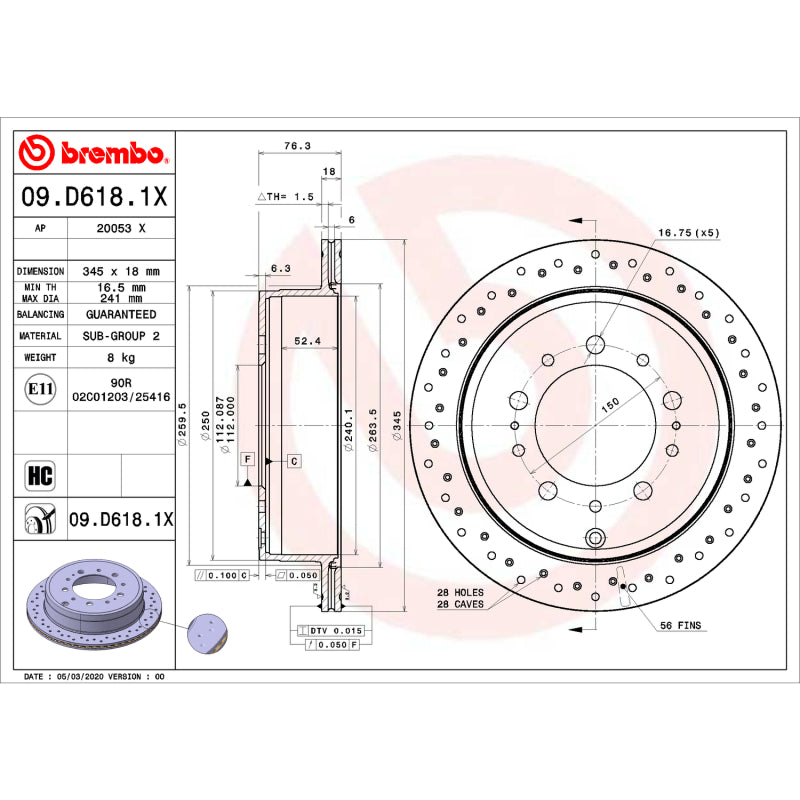

This Brembo Xtra rear brake disc is a drilled, ventilated rotor cast in high-carbon iron, measuring 345 mm across and 18 mm thick with a 16.5 mm minimum thickness, a 76 mm height and a 112 mm centering bore on a 5-hole hub. The drilled faces help clear gas and pad dust from the friction surface, and the disc is UV painted for corrosion resistance. It carries ECE R90 homologation and replaces the earlier part number 09.A967.1X. Each box holds one rotor.
Specifications
| Line |
Xtra |
| Position |
Rear |
| Construction |
Ventilated |
| Pattern |
Drilled |
| Diameter |
345 mm |
| Thickness / Min Thickness |
18 mm / 16.5 mm |
| Height |
76 mm |
| Centering Bore |
112 mm |
| Bolt Holes |
5 |
| Material |
High-carbon cast iron |
| Coating |
UV painted |
| ECE R90 |
Certified |
| Replaces |
09.A967.1X |
| Quantity |
1 (sold individually) |
| Warranty |
24 months from delivery against defects in materials and workmanship |
| Part Number |
09.D618.1X |
This part fits:
| Year |
Make |
Model |
Submodel |
| 2008-2011, 2013-2021 |
Lexus |
LX570 |
Base |
| 2008-2011, 2013-2021 |
Toyota |
Land Cruiser |
Base |
| 2020-2021 |
Toyota |
Land Cruiser |
Heritage Edition |
| 2008-2022 |
Toyota |
Sequoia |
Limited |
| 2021-2022 |
Toyota |
Sequoia |
Nightshade |
| 2008-2022 |
Toyota |
Sequoia |
Platinum |
| 2008-2022 |
Toyota |
Sequoia |
SR5 |
| 2020-2022 |
Toyota |
Sequoia |
TRD Pro |
| 2018-2022 |
Toyota |
Sequoia |
TRD Sport |
| 2014-2021 |
Toyota |
Tundra |
1794 Edition |
| 2007-2013 |
Toyota |
Tundra |
Base |
| 2007-2021 |
Toyota |
Tundra |
Limited |
| 2021 |
Toyota |
Tundra |
Nightshade |
| 2010-2021 |
Toyota |
Tundra |
Platinum |
| 2014-2021 |
Toyota |
Tundra |
SR |
| 2007-2011, 2014-2021 |
Toyota |
Tundra |
SR5 |
| 2021 |
Toyota |
Tundra |
Trail |
| 2015-2017, 2019-2021 |
Toyota |
Tundra |
TRD Pro |
Documents: Technical Specifications | Assembly Instructions
