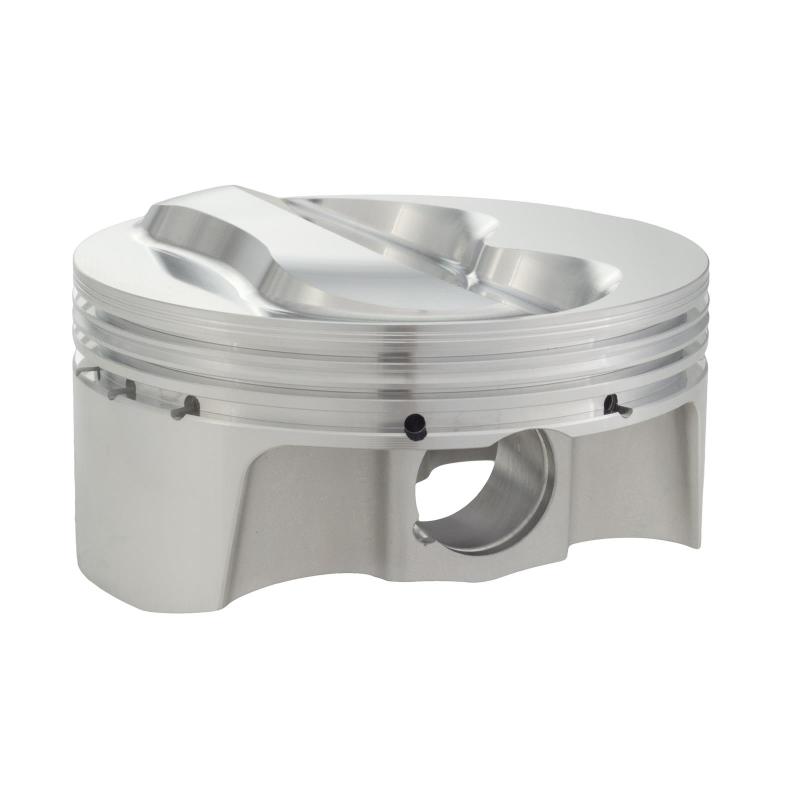

Photo - Primary

CP Pistons Bullet Race Series Forged Piston Set - SBC 4.035 Bore, 3.480 Stroke, 5.700 Rod, Set of 8

CP Pistons SKU: CPPBCRS1021-035
Price
Regular price $1,149.58
Regular price Sale price $1,149.58
OFF
/
Low Stock – Almost Gone
Shipping calculated at checkout.

The CP-Carrillo Bullet Race Series is a forged 2618 aluminum piston set built in the USA for naturally aspirated circle track small block Chevy race engines running 2bbl and 4bbl combinations. This SBC 356 configuration measures 4.035 bore, 3.480 stroke, and 5.700 rod with a 1.560 compression height and a lightweight flat top design carrying a -4.95cc dish, 4.9cc valve pockets, and pressure relief strut holes. The set ships complete with rings, including a 1.2mm gas nitride steel top ring, 1.2mm Napier second ring, and 3.0mm oil ring, plus .927 x 2.250 pins with a .150 wall.

Specifications

Type Forged 2618 aluminum piston set (Bullet Race Series)
Engine Small Block Chevy (356 ci)
Bore 4.035 in
Stroke 3.480 in
Rod Length 5.700 in
Compression Height 1.560 in
Dish -4.95cc
Pin .927 x 2.250, .150 in wall
Rings Included (1.2mm gas nitride top, 1.2mm Napier second, 3.0mm oil)
Quantity Set of 8 (with rings)
Order Type Made to order (non-cancelable)
Part Number BCRS1021-035
