CSF High-Performance All-Aluminum Radiator - Cadillac CTS-V 2009-2015

CSF SKU: CSF8028
Price
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

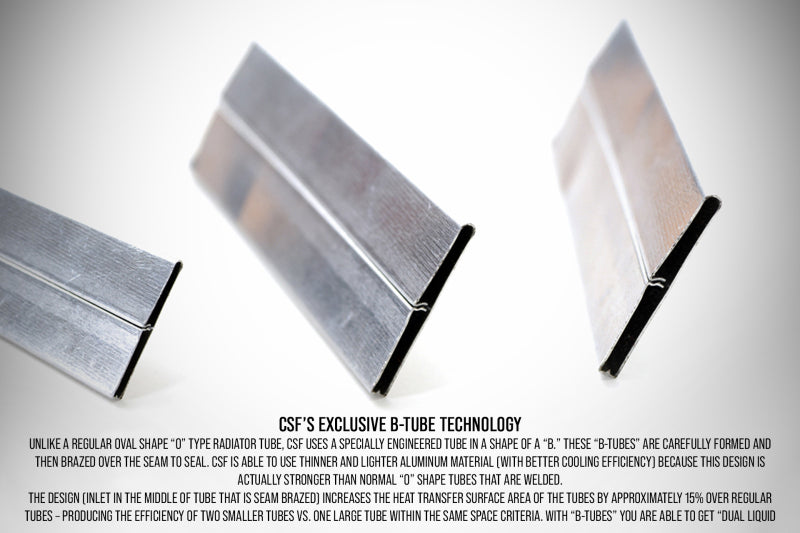

This CSF High-Performance All-Aluminum Radiator uses a 2-row, 42mm core built with CSF's exclusive B-Tube technology. The B-shaped tubes are seam brazed, making them stronger than welded oval tubes while allowing thinner aluminum, and they increase heat transfer surface area by approximately 15% for dual liquid laminar flow. 6.5mm tall multi-louvered fins are tuned for this application and tested for heat rejection in CSF's wind tunnel. It works with both manual and automatic transmissions, with an automatic transmission cooler built into the left side end tank, and accepts all OEM quick connect hoses, A/C condenser, brackets and fan shroud with no modifications. CNC machined quick connect fittings, an all-aluminum race style drain plug and a smooth satin finish complete it.

Specifications

Type High-Performance Radiator
Material 100% All-Aluminum, TIG-Welded
Finish Smooth Satin
Core 2-Row, 42mm with B-Tube cooling tubes
Fin Height 6.5mm multi-louvered fins
Transmission Cooler Built into left side end tank (automatic)
Transmission Manual and Automatic
Connections CNC Machined Quick-Connect Inlet/Outlet
Drain Plug All-Aluminum Race Style
Quantity 1
Part Number 8028
Warranty 2-Year Limited

This part fits:

Year Make Model Submodel
2009-2015 Cadillac CTS V
