CSF High-Performance All-Aluminum Radiator - Nissan Skyline GT-R R32 - Black 1989-1994

CSF High-Performance All-Aluminum Radiator - Nissan Skyline GT-R R32 - Black 1989-1994

CSF SKU: CSF7229B
Price
Regular price $569.00
Regular price Sale price $569.00
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

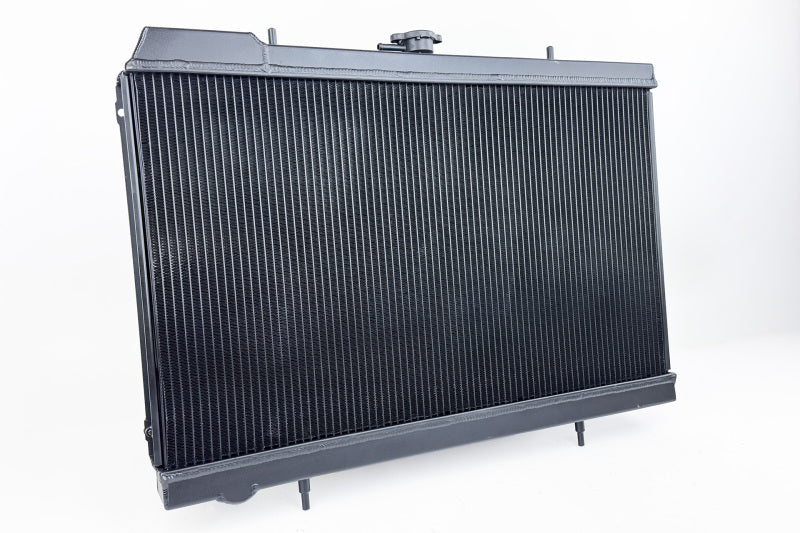

All-aluminum, TIG-welded high-performance radiator for the R32 Nissan Skyline, finished in satin black. The 2-row, 42mm core increases coolant capacity and dissipation, using CSF's exclusive B-Tube technology with 75 cooling tubes to raise heat transfer roughly 15% over conventional oval welded tubes, paired with 6.5mm ultra-efficient multi-louvered fins for maximum surface area and airflow. It ships with a 1.4-bar high-pressure radiator cap, an M16 x 1.5 sensor port with pre-installed plug, a 1/8" NPT sensor port on the top tank, CNC-machined mounting pins, OEM-style inlet/outlet, and OE-location fan shroud mounting points.

Specifications

Type High-performance all-aluminum radiator, TIG-welded
Core 2-row, 42mm; 75 cooling tubes; CSF B-Tube technology (~15% more heat transfer)
Fins 6.5mm tall ultra-efficient multi-louvered
Radiator Cap 1.4-bar high-pressure cap with CSF logo
Finish Satin black
Included M16 x 1.5 sensor port with plug, 1/8" NPT sensor port (top tank), CNC-machined mounting pins, OEM-style inlet/outlet, OE-location fan shroud mounts
Part Number 7229B
Warranty 2-year limited warranty

This part fits:

Year Make Model Submodel
1989-1994 Nissan Skyline GT-R R32 - Black All
