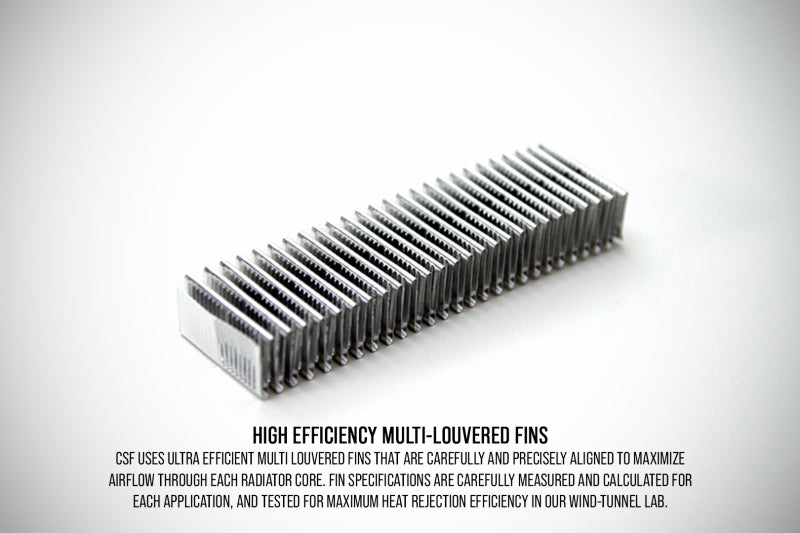

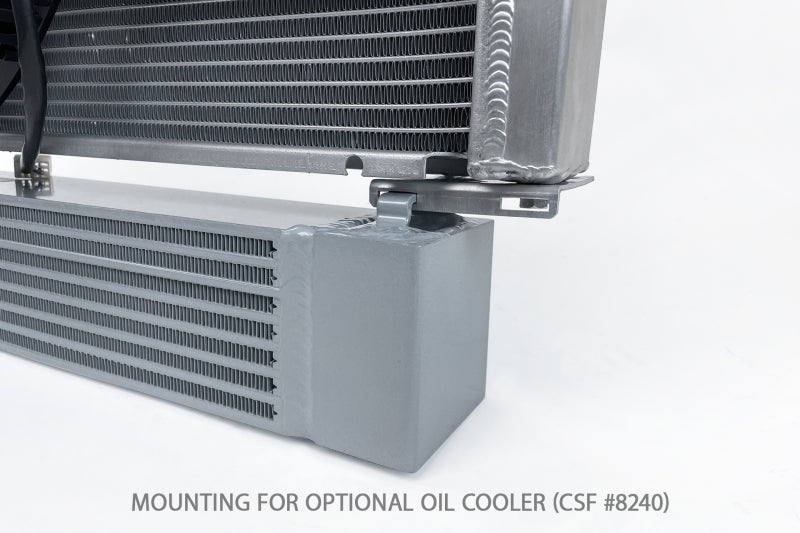

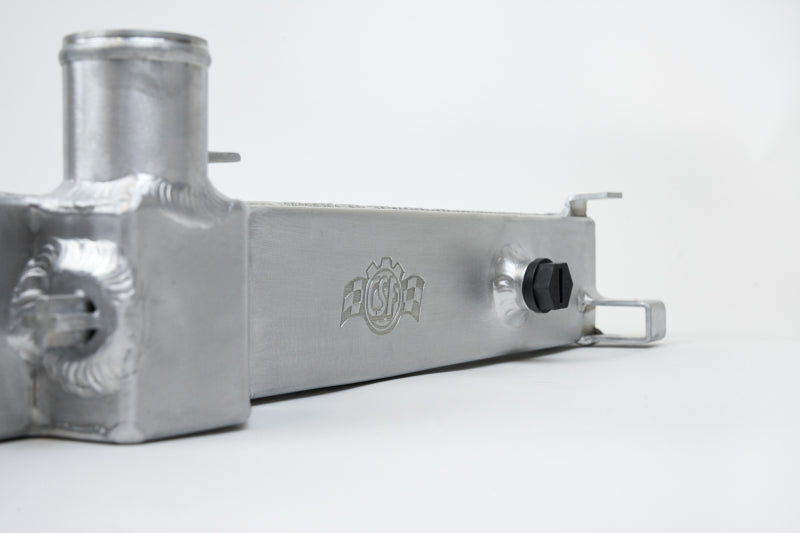

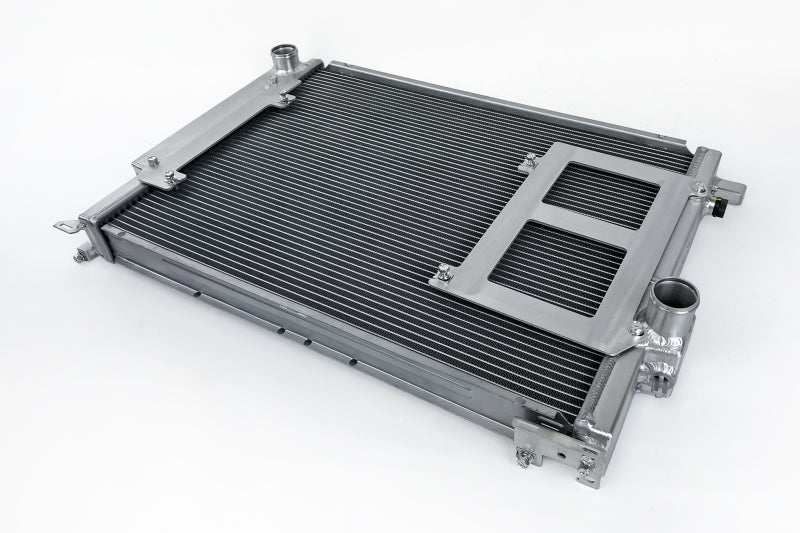

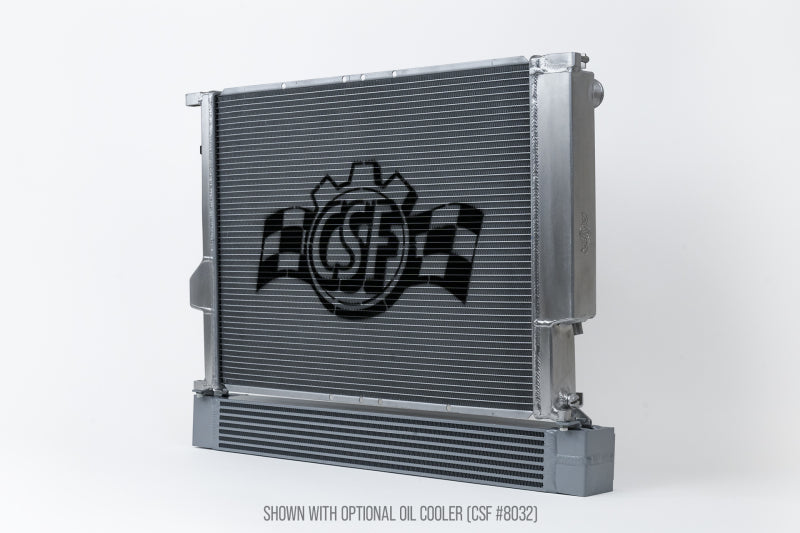

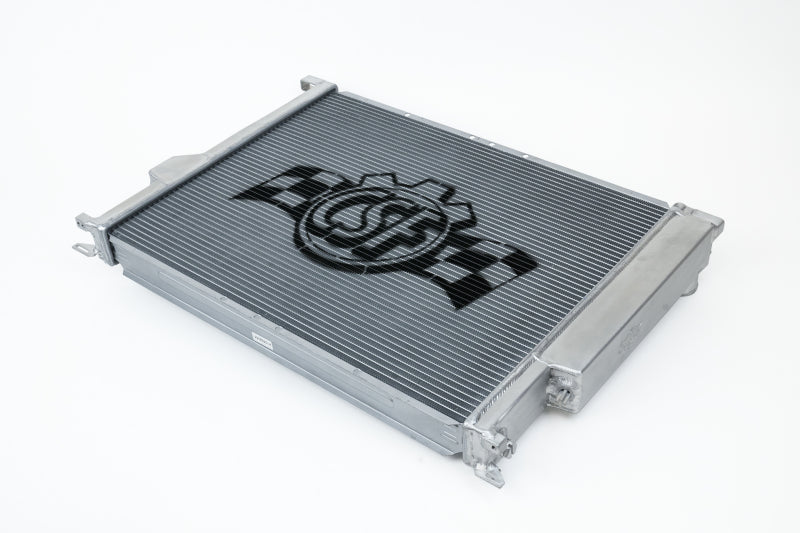

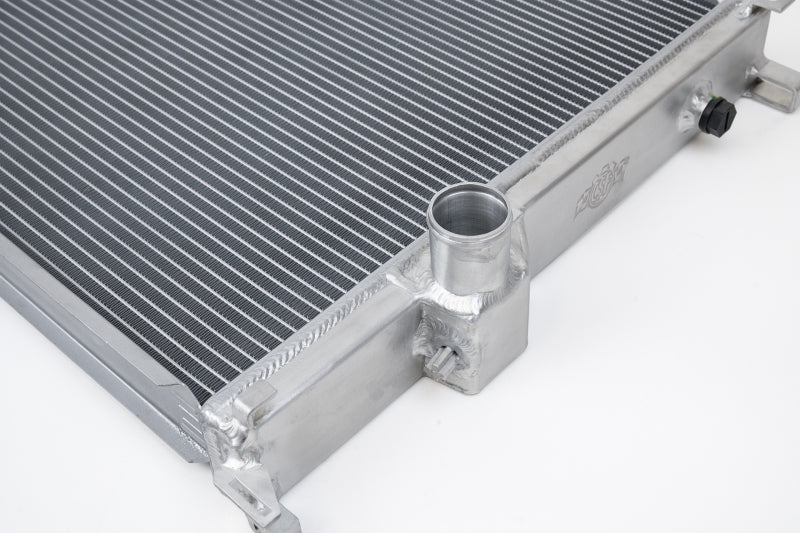

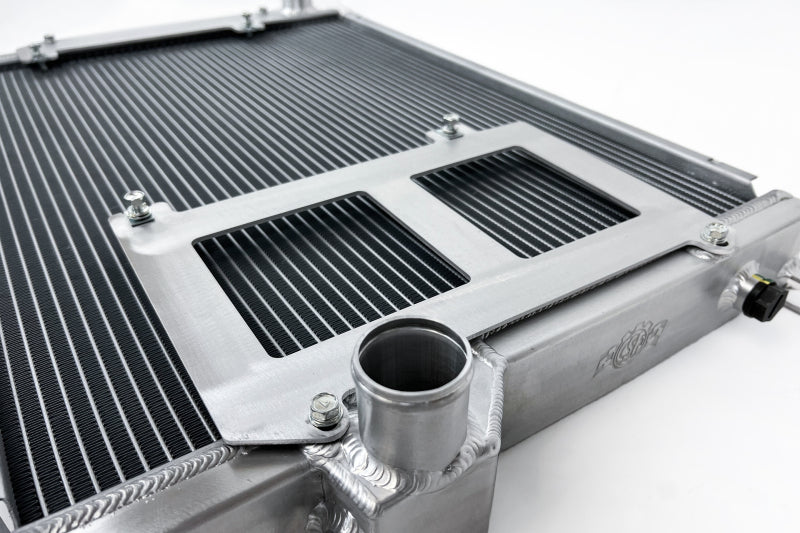

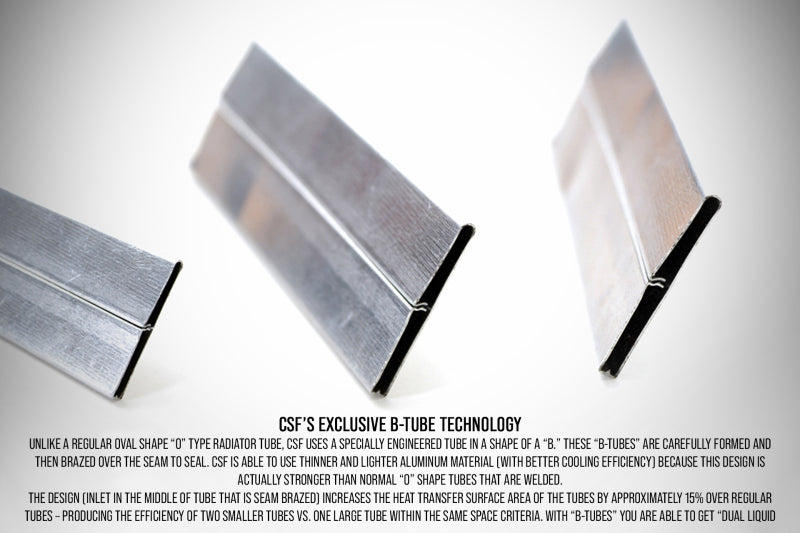

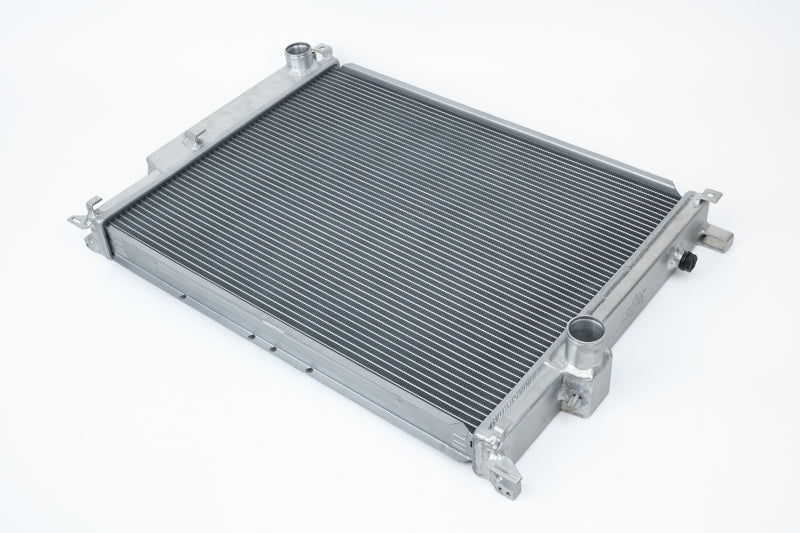

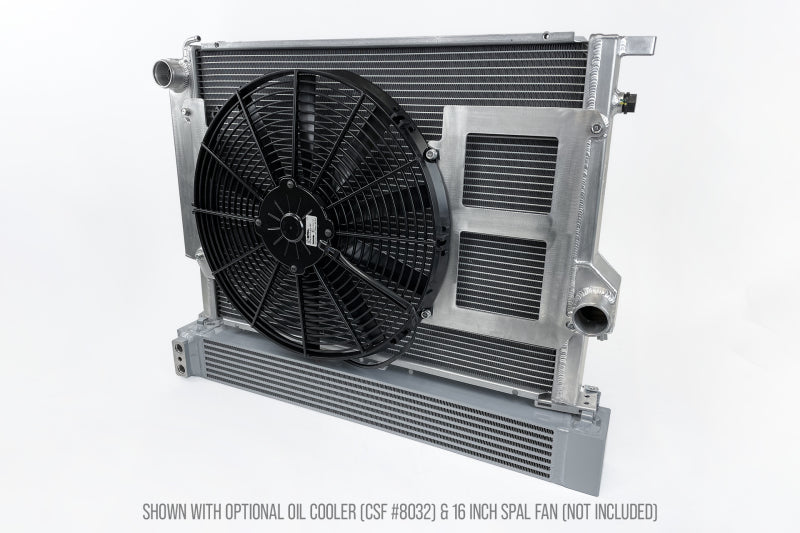

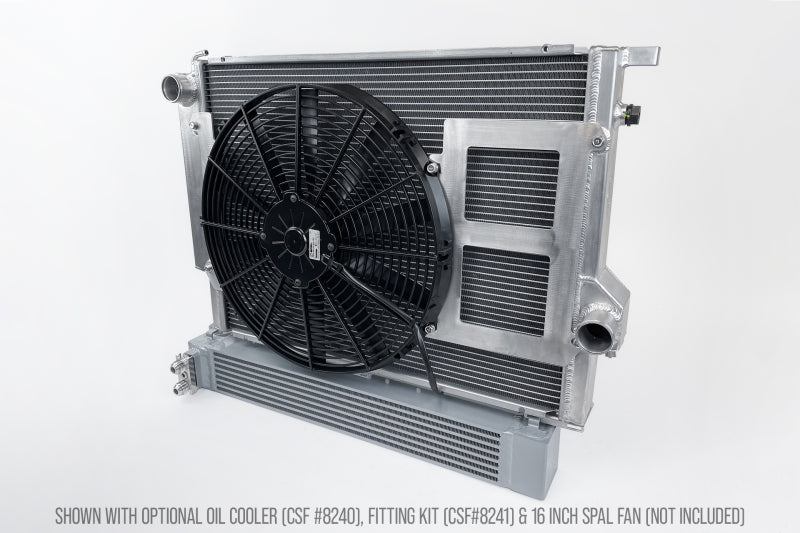

Purpose-built aluminum radiator for an S54 engine swap into the E36 or E46 chassis. The core height is reduced so two race-spec oil coolers (CSF #8240 and #8032) can mount underneath in a factory-style location, and the included brackets adjust to fit both, with a separate set of brackets for an electric-fan conversion to a single 16-inch SPAL fan. The 2-row 42mm core runs CSF's B-Tube technology and 6.5mm multi-louvered fins, built from fully TIG-welded aluminum with an all-aluminum race-style drain plug and CNC-machined fittings. Two top covers (black and satin) are included for a clean OEM+ finish.
| Type | All-aluminum high-performance radiator (S54 swap) |
| Core | 2-row, 42mm |
| Fins | 6.5mm multi-louvered, B-Tube technology |
| Material | 100% aluminum, TIG-welded |
| Finish | Smooth satin |
| Fit | S54 swap into E36/E46; reduced height for under-radiator oil coolers |
| Included | Oil-cooler brackets (CSF #8240 & #8032), 16-inch SPAL fan brackets, black & satin top covers, race-style drain plug |
| Warranty | 2-year limited warranty |
This part fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1992-1998 | BMW | 318i | Base |
| 1992-1997 | BMW | 318is | Base |
| 1995-1999 | BMW | 318ti | Base |
| 2000 | BMW | 323Ci | Base |
| 1998-2000 | BMW | 323i | Base |
| 1998-1999 | BMW | 323is | Base |
| 2001-2006 | BMW | 325Ci | Base |
| 1992-1995,2001-2005 | BMW | 325i | Base |
| 1992-1995 | BMW | 325is | Base |
| 2001-2005 | BMW | 325xi | Base |
| 2000 | BMW | 328Ci | Base |
| 1996-2000 | BMW | 328i | Base |
| 1996-1999 | BMW | 328is | Base |
| 2001-2006 | BMW | 330Ci | Base |
| 2001-2005 | BMW | 330i | Base |
| 2001-2005 | BMW | 330xi | Base |
| 1995-1999 | BMW | M3 | Base |
| 1995 | BMW | M3 | Lightweight |
