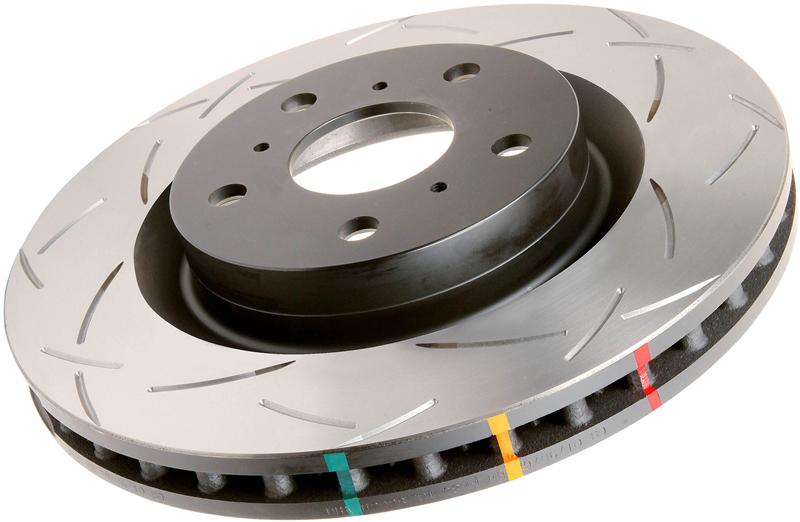

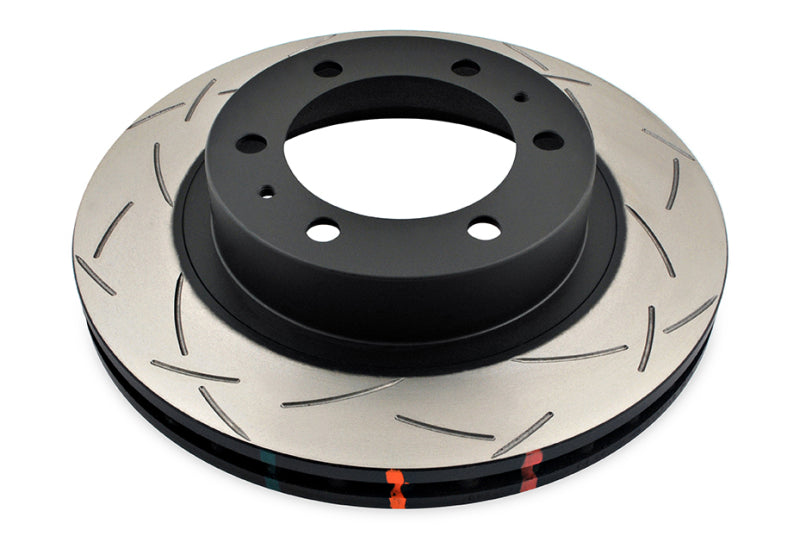

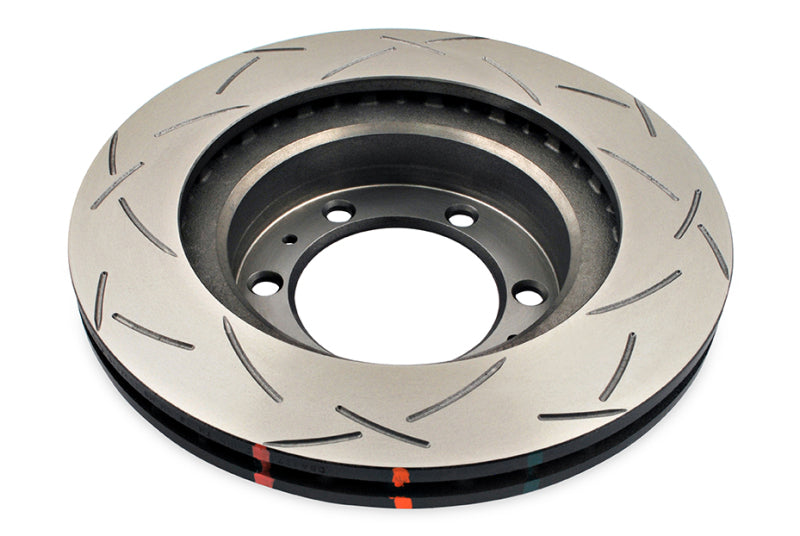

DBA 4000 Series T3 Slotted Brake Rotor Toyota FJ Cruiser Tacoma 4Runner 2003-2018 - Front

DBA42716S is DBA's 4000 Series rotor on the same 2716 casting as the Street Series DBA2716S, but it is a materially different rotor. The iron is high carbon alloyed and goes through DBA's Thermal Stability Profiling - heat treatment cycles that realign the microstructure of the iron so the rotor holds its shape under repeated heavy heat instead of coning or cracking. It also carries thermographic heat paint: markings that change colour at set temperature thresholds, so you can read off the rotor how hard the brakes have actually been worked.

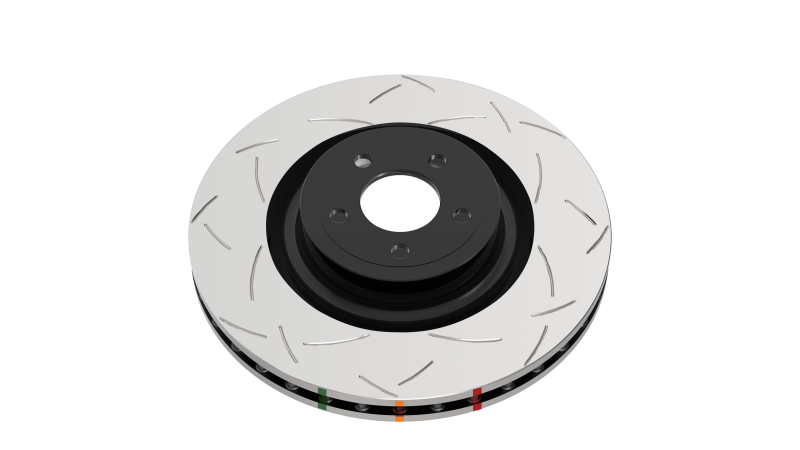

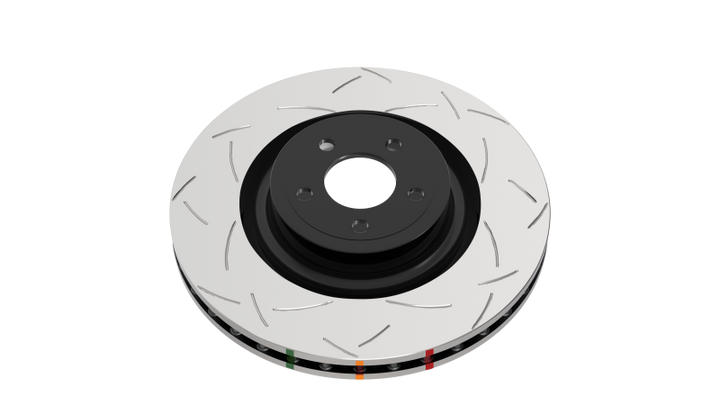

The slot is DBA's T3: the T2 bi-symmetrical pattern plus a third, tri-symmetrical set of slots, for more exit points and a quieter, smoother pedal than T2. DBA recommends the T3 slot for high performance and heavy off-road use. Same 319mm diameter, 28mm thickness and 6 x 139.7mm bolt pattern as DBA2716S - what you are paying the difference for is the metallurgy, the heat treatment, the temperature paint and the extra slots.

• Series: DBA 4000 Series - upgraded performance above OE level.
• Slot design: T3, tri-symmetrical and bi-directional, built on top of the T2 pattern.
• High carbon alloyed iron with Thermal Stability Profiling heat treatment.
• Thermographic heat paint - markings change colour at set temperature thresholds so brake temperature and rotor fatigue can be monitored.
• Painted non-friction areas to resist rust.
• Sold individually - this is one rotor. Two are required to do the front axle.
• Kangaroo Paw ventilation: 144 diamond and teardrop pillars in place of straight vanes, for up to 30% more internal surface area and up to 20% better cooling.
• Bi-directional slotting - one part number serves both the left and right side, so there is no handed pair to get wrong.
• CBN (cubic boron nitride) turned friction faces to minimise disc thickness variation and pad knock.
• Centre-split core casting for heat transfer.
• DBA warranty: 12 months / 12,000 miles.

Specifications

Documents: DBA Rotor Install Guide (PDF)

This part fits:
