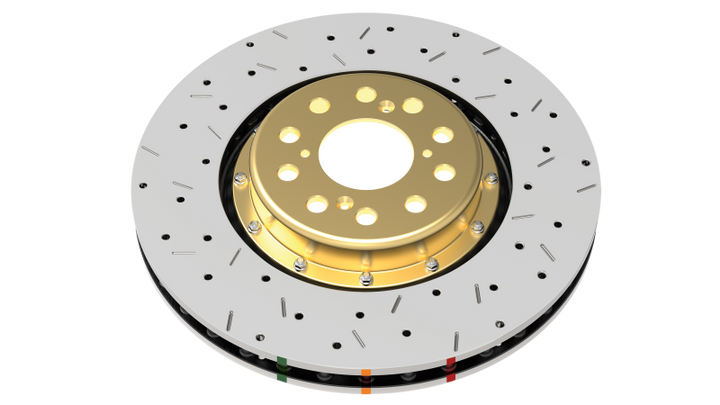

DBA 5000 Series XS Black Hat Front Drilled & Slotted Rotor - Chevrolet Corvette / Cadillac XLR 2004-2013, technical drawing
DBA 5000 Series XS Black Hat Front Drilled & Slotted Rotor - Chevrolet Corvette / Cadillac XLR 2004-2013, view 7

DBA 5000 Series XS Black Hat Front Drilled & Slotted Rotor - Chevrolet Corvette / Cadillac XLR 2004-2013

DBA SKU: DBADBA52992BLKXS
Price
33% OFF
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

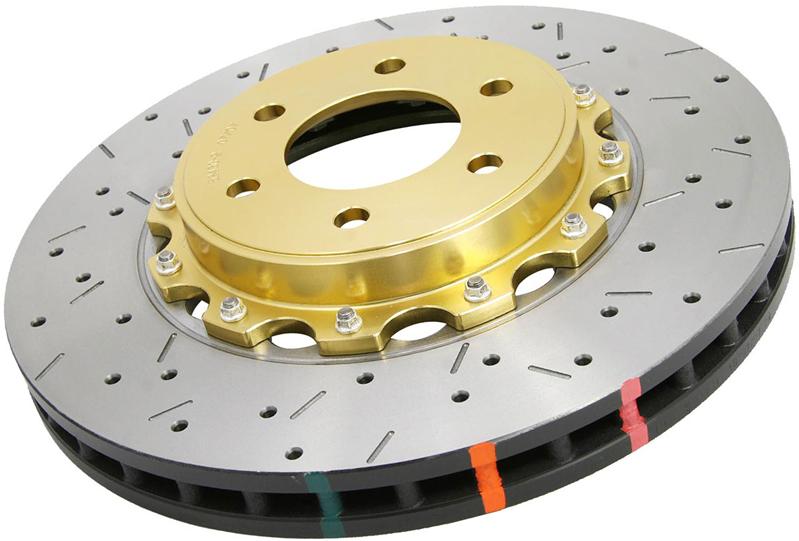

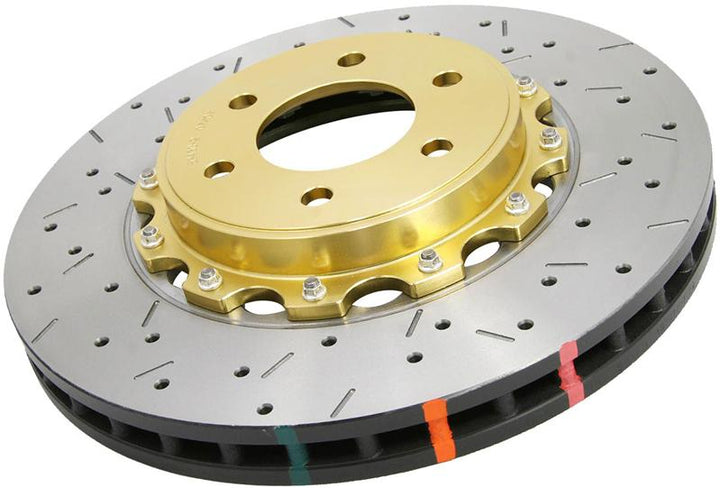

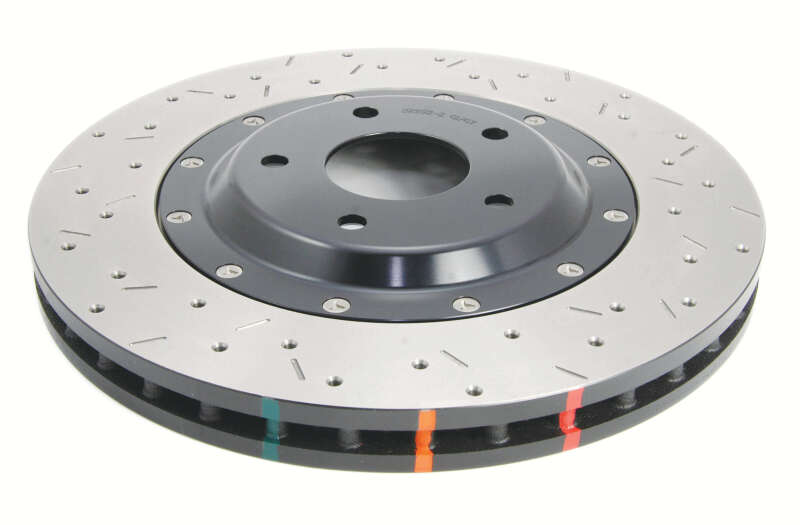

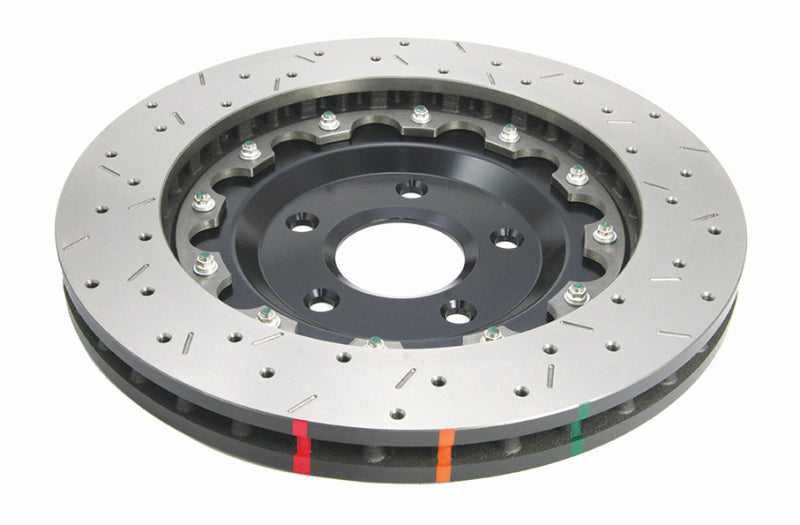

A two-piece front brake rotor pairing a high carbon cast iron ring with an aerospace grade T6061-T6 aluminium hat, joined by NAS bolts and crimp nuts to cut unsprung and rotating weight. The ring measures 355mm across and 32mm thick new, with a 30mm minimum, and carries DBA's XS cross drilled and slotted surface in a non-directional pattern that runs on either side of the car. Kangaroo Paw ventilation vanes raise heat dissipation by up to 20 percent over a conventional straight vane, and Thermal Stability Profiling relieves casting stress to resist warping under repeated heat cycles. Friction faces are CBN machine turned and the non-friction areas are painted for corrosion resistance.

Specifications

Type Two-piece cross drilled and slotted brake rotor (DBA 5000 Series XS)
Position Front (non-directional, fits either side)
Diameter 355mm
Thickness 32mm new, 30mm minimum
Height 45.5mm
Centering Diameter 70.7mm
Bolt Holes 5
PCD 120.65mm
Material High carbon cast iron ring, T6061-T6 aluminium hat, NAS bolts and crimp nuts
Finish Black hat; CBN machine turned friction faces; painted non-friction areas
Vane Design Kangaroo Paw (KP) vents
Heat Treatment Thermal Stability Profiling (TSP)
Minimum Thickness 30 mm
Centre Bore 70.7 mm
Bolt Pattern (PCD) 120.65 mm
Ventilation KP Vents
Face Cross Drilled/ Slotted
Part Number DBA52992BLKXS
Quantity 1 (2 required per axle)
Warranty 12 months or 20,000 km / 12,000 miles

Documents: Installation Instructions (PDF)

This part fits:

Year Make Model Submodel
2004-2006 Cadillac XLR Base
2008 Chevrolet Corvette 427 Limited Edition Z06
2006-2008,2010-2011 Chevrolet Corvette Base
2010-2013 Chevrolet Corvette Grand Sport
2006-2012 Chevrolet Corvette Z06
2011 Chevrolet Corvette Z06 Carbon
2010-2011 Chevrolet Corvette ZR1
