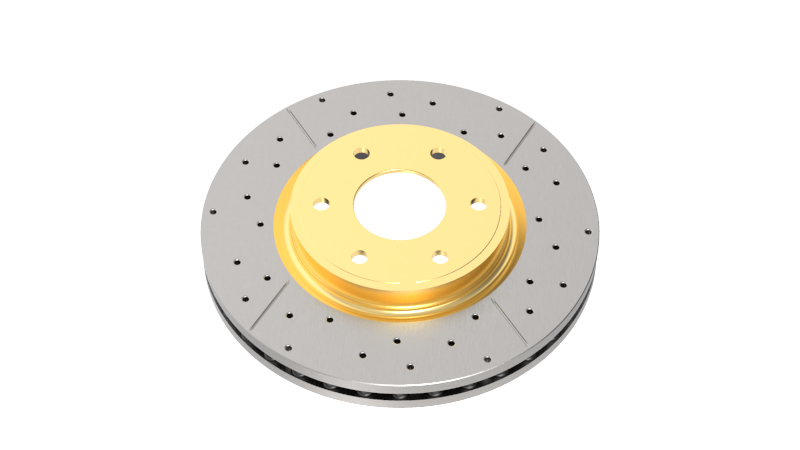

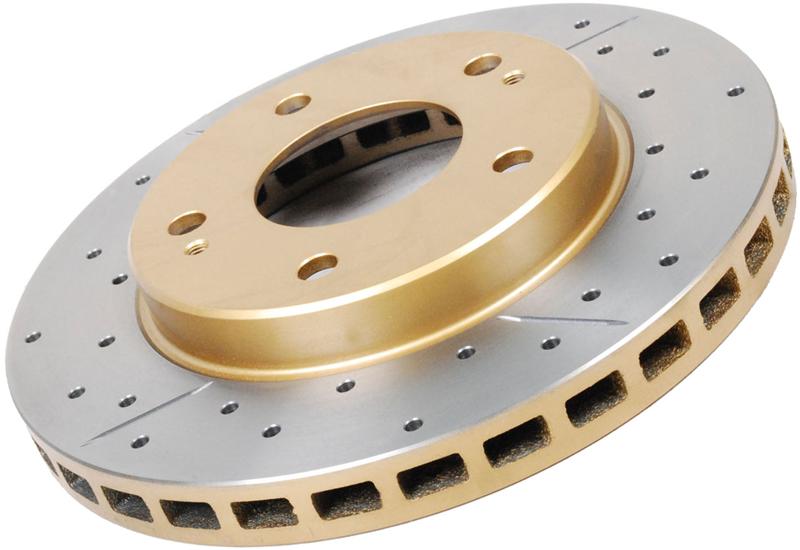

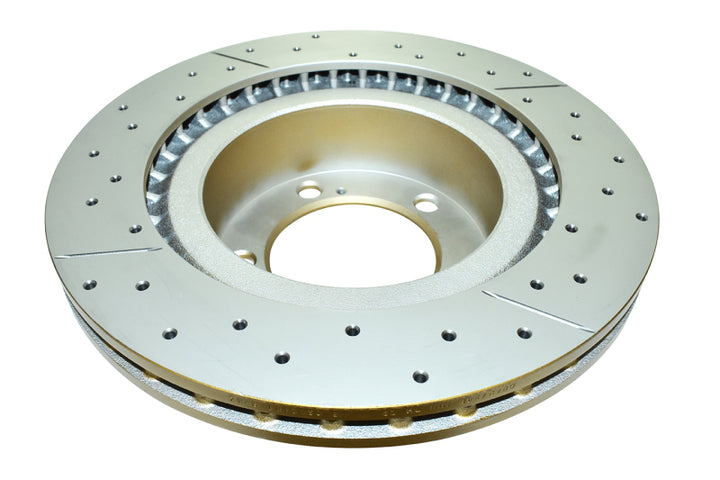

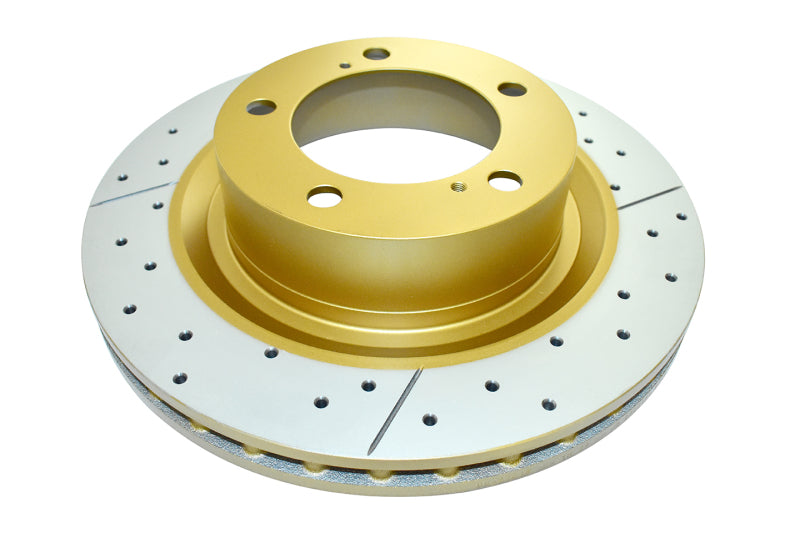

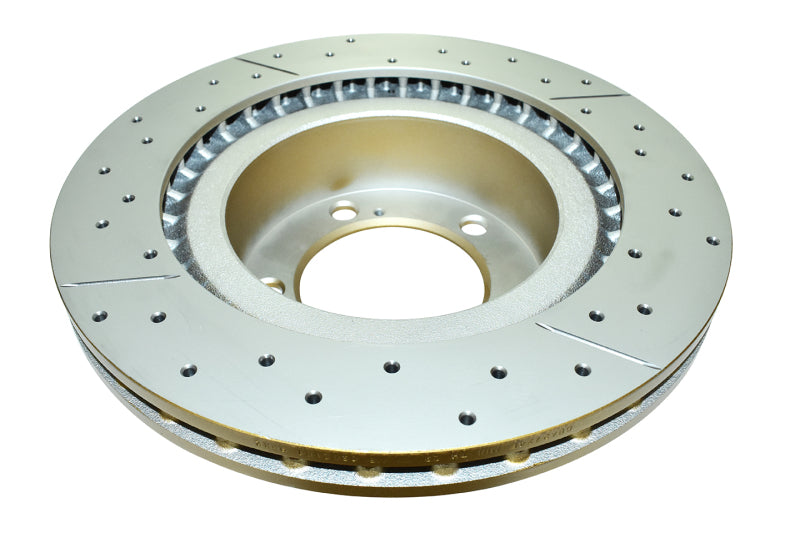

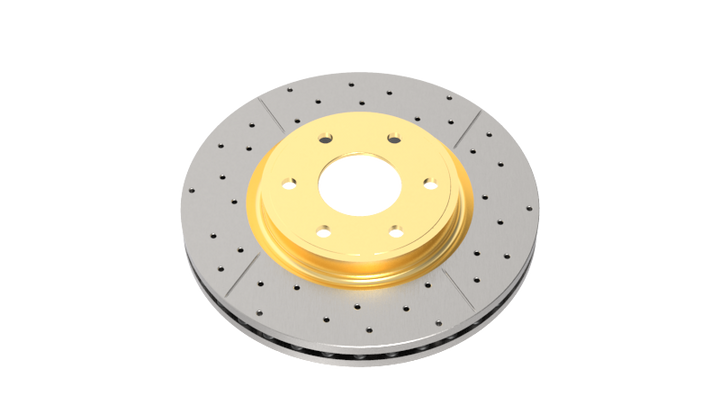

DBA2724X is the front rotor from the Street Series XGold range, which pairs a cross-drilled and slotted braking surface with a gold finished hub. The drill holes and slots give brake dust and gas a route off the pad face, and DBA's Kangaroo Paw vane design routes more air through the casting for faster heat dissipation. The rotor measures 354 mm outer diameter and 32 mm thick new with a 29 mm minimum discard thickness, stands 83.5 mm tall and weighs 11.43 kg. It mounts to a 5 x 150 mm bolt pattern with a 112 mm centre bore.
| Type | Street Series XGold cross-drilled and slotted brake rotor |
| Position | Front |
| Material | Cast iron, Kangaroo Paw ventilated vane design |
| Finish | Gold coated hub |
| Diameter | 354 mm |
| Thickness | 32 mm new, 29 mm minimum |
| Height | 83.5 mm |
| Bolt Pattern | 5 x 150 mm |
| Centre Bore | 112 mm |
| Weight | 11.43 kg |
| Quantity | 1 (sold individually, 2 required per axle) |
| Part Number | DBA2724X |
Documents: Installation Instructions (PDF)
This part fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2017,2019 | Lexus | LX570 | Base |
| 2009-2010 | Pontiac | Vibe | AWD |
| 2009-2010 | Pontiac | Vibe | Base |
| 2009-2010 | Pontiac | Vibe | GT |
| 2008-2011,2013-2014 | Scion | xD | Base |
| 2017 | Toyota | Corolla | 50th Anniversary Special Edition |
| 2010-2011 | Toyota | Corolla | Base |
| 2014-2015,2017 | Toyota | Corolla | L |
| 2010-2011,2014-2015,2017 | Toyota | Corolla | LE |
| 2014-2015,2017 | Toyota | Corolla | LE Eco |
| 2014 | Toyota | Corolla | Le Eco Plus |
| 2010-2011,2014-2015 | Toyota | Corolla | S |
| 2017 | Toyota | Corolla | SE |
| 2010,2017 | Toyota | Corolla | XLE |
| 2010 | Toyota | Corolla | XRS |
| 2017 | Toyota | Corolla | XSE |
| 2016-2017 | Toyota | Land Cruiser | Base |
| 2011-2013 | Toyota | Matrix | Base |
| 2011-2013 | Toyota | Matrix | S |
| 2008-2011,2013,2015,2022 | Toyota | Sequoia | Limited |
| 2022 | Toyota | Sequoia | Nightshade |
| 2008-2011,2013,2015,2022 | Toyota | Sequoia | Platinum |
| 2008-2011,2013,2015,2022 | Toyota | Sequoia | SR5 |
| 2022 | Toyota | Sequoia | TRD Pro |
| 2022 | Toyota | Sequoia | TRD Sport |
| 2014-2016,2019 | Toyota | Tundra | 1794 Edition |
| 2007-2011,2013 | Toyota | Tundra | Base |
| 2007-2011,2013-2016,2019 | Toyota | Tundra | Limited |
| 2010-2011,2013-2016,2019 | Toyota | Tundra | Platinum |
| 2014-2016,2019 | Toyota | Tundra | SR |
| 2007-2011,2014-2016,2019 | Toyota | Tundra | SR5 |
| 2015-2016,2019 | Toyota | Tundra | TRD Pro |
