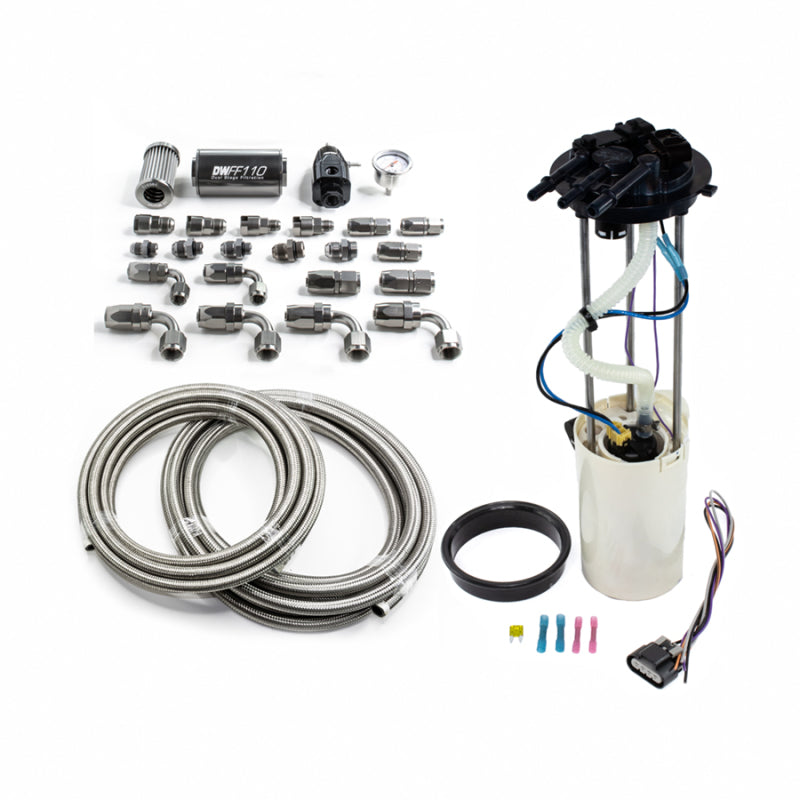

DeatschWerks DW400 415 LPH Fuel Pump Module with braided lines, laid out

DeatschWerks DW400 415 LPH Fuel Pump Module with CPE Return Plumbing Kit - Chevrolet Silverado / GMC Sierra 1999-2004

DeatschWerks SKU: DWK9-401-603-7010
Price
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandDeatschWerks
SKUDWK9-401-603-7010
GTIN / UPC0887753534644
Manufacturer Part Number9-401-603-7010

Product Information

This DeatschWerks kit pairs the DW400 pump module for 1999-2004 Silverado and Sierra trucks with a complete return plumbing kit. The module is a plug-and-play replacement for the OE unit that more than doubles factory flow, retains the OE fuel level sender and uses a return-fed bucket for low-level pickup. The kit adds stainless braided CPE lines with an 8AN feed and 6AN return, a DWR1000 regulator, a fuel pressure gauge and a DW110 10-micron stainless filter. It supports 800+ hp on pump gas.

Specifications

Type In-tank fuel pump module
Series DW400 Pump Modules
Rated Flow 415 lph
Pump Type In-tank module
Supports 800+ hp (pump gas)
Rated Working Pressure 3-7 bar (43-100 psi)
Fuel Compatibility Gasoline and ethanol
Feed / Return Lines 8AN feed, 6AN return, stainless braided CPE
Regulator DWR1000 (black)
Filtration 100 micron in-module pre-filter; DW110 10 micron stainless in-line filter
Wire Harness 14 ga replacement pigtail included
Fuel Level Sender OE-compatible, 250-40 ohm (empty-full)
Fitment Chevy Silverado 1500/2500/3500 and GMC Sierra 1500/2500/3500 1999-2004, V8 4.8L/5.3L/6.0L, excluding Flex Fuel
Fitment Notes V8 gasoline engines only; does not fit Flex Fuel models; may not fit Crew Cab Long Bed
What's in the Box
  • DW400 pump module
  • Return plumbing kit with CPE lines
  • DWR1000 regulator
  • Fuel pressure gauge
  • DW110 fuel filter
  • Replacement pigtail
Install On some installations the clocking tab must be removed to fit the module in the tank
Hardwire Kit FPHWK-10-HD 10-gauge hardwire kit strongly recommended, sold separately
Quantity 1
Warranty Limited lifetime
Part Number 9-401-603-7010

This part fits:

Year Make Model Submodel
1999-2004 Chevrolet Silverado 1500 Base
2004 Chevrolet Silverado 1500 Hybrid
1999-2004 Chevrolet Silverado 1500 LS
1999-2004 Chevrolet Silverado 1500 LT
2003-2004 Chevrolet Silverado 1500 SS
2002-2004 Chevrolet Silverado 1500 WT
2004 Chevrolet Silverado 1500 Z71 Off-Road
1999-2004 Chevrolet Silverado 2500 Base
1999-2004 Chevrolet Silverado 2500 LS
1999-2004 Chevrolet Silverado 2500 LT
2004 Chevrolet Silverado 2500 WT
2001-2004 Chevrolet Silverado 3500 Base
2001-2004 Chevrolet Silverado 3500 LS
2001-2004 Chevrolet Silverado 3500 LT
2004 Chevrolet Silverado 3500 WT
2002-2004 GMC Sierra 1500 Base
2001 GMC Sierra 1500 C3
2002-2004 GMC Sierra 1500 Denali
2002 GMC Sierra 1500 HT
1999-2003 GMC Sierra 1500 SL
1999-2004 GMC Sierra 1500 SLE
1999-2004 GMC Sierra 1500 SLT
2002-2004 GMC Sierra 1500 WT
2002-2004 GMC Sierra 2500 Base
1999-2002 GMC Sierra 2500 SL
1999-2004 GMC Sierra 2500 SLE
1999-2004 GMC Sierra 2500 SLT
2003-2004 GMC Sierra 2500 WT
2002-2004 GMC Sierra 3500 Base
2001-2002 GMC Sierra 3500 SL
2001-2004 GMC Sierra 3500 SLE
2001-2004 GMC Sierra 3500 SLT
2004 GMC Sierra 3500 WT

Documents: Tech Data Sheet (PDF) | Plumbing Diagram (PDF) | DW400 Pump Tech Sheet (PDF)

Which trucks does this kit fit?

  • 1999-2004 Chevrolet Silverado and GMC Sierra 1500, 2500 and 3500 with the 4.8L, 5.3L or 6.0L V8. Flex Fuel models are excluded and Crew Cab Long Bed trucks may not fit.

What is in the kit?

  • The DW400 pump module, a CPE return plumbing kit with 8AN feed and 6AN return lines, a DWR1000 regulator, a fuel pressure gauge and a DW110 10-micron filter.

How much power does it support?

  • 800+ hp on pump gas.

Do I need a hardwire kit?

  • The FPHWK-10-HD 10-gauge hardwire kit is strongly recommended and sold separately.

What warranty does it carry?

  • A limited lifetime warranty.
