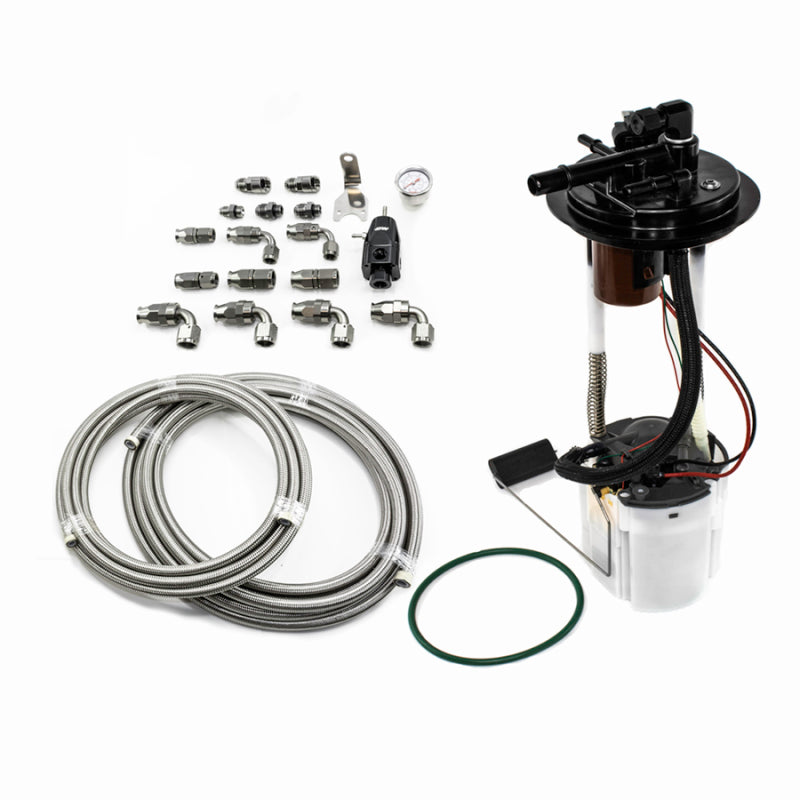

DeatschWerks DW400 415 LPH Fuel Pump Module, with fittings and braided line laid out

DeatschWerks DW400 415 LPH Fuel Pump Module with PTFE Return Plumbing Kit - Chevrolet Silverado / GMC Sierra 2005-2013

DeatschWerks SKU: DWK9-401-603-7013
Price
In Stock – Ready to Ship
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

Details

BrandDeatschWerks
SKUDWK9-401-603-7013
GTIN / UPC0887753534675
Manufacturer Part Number9-401-603-7013

Product Information

This DeatschWerks kit pairs the DW400 pump module for 2005-2013 Silverado and Sierra trucks with a complete return plumbing kit. The module is a plug-and-play replacement for the OE unit that nearly doubles factory flow, retains the OE fuel level sender and uses a venturi-fed surge bucket for consistent fueling at low tank levels and under high G loads. The kit adds stainless braided PTFE lines with an 8AN feed and 6AN return, a DWR1000 regulator and a fuel pressure gauge. It supports 750+ hp on pump gas.

Specifications

Type In-tank fuel pump module
Series DW400 Pump Modules
Rated Flow 415 lph
Pump Type In-tank module
Supports 750+ hp (pump gas)
Rated Working Pressure 3-6 bar (43-85 psi)
Fuel Compatibility Gasoline and ethanol
Feed / Return Lines 8AN feed, 6AN return, stainless braided PTFE
Regulator DWR1000 (black)
Filtration Integrated 100 micron pre-pump / 10 micron post-pump
Wire Harness 12 ga replacement pigtail included
Fuel Level Sender OE-compatible, 250-40 ohm (empty-full)
Fitment Chevy Silverado 1500/2500/3500 and GMC Sierra 1500/2500/3500 2005-2013, V8 4.8L/5.3L/6.0L, excluding Flex Fuel
Fitment Notes V8 gasoline engines only; does not fit Flex Fuel models; may not fit Crew Cab Long Bed
What's in the Box
  • DW400 pump module
  • PTFE return plumbing kit
  • DWR1000 regulator
  • Fuel pressure gauge
  • Replacement pigtail
Install On some installations the clocking tab must be removed to fit the module in the tank
Hardwire Kit FPHWK-10-HD 10-gauge hardwire kit strongly recommended, sold separately
Quantity 1
Warranty Limited lifetime
Part Number 9-401-603-7013

This part fits:

Year Make Model Submodel
2005 Chevrolet Silverado 1500 Base
2005-2006, 2009-2013 Chevrolet Silverado 1500 Hybrid
2005-2013 Chevrolet Silverado 1500 LS
2005-2013 Chevrolet Silverado 1500 LT
2007-2013 Chevrolet Silverado 1500 LTZ
2005-2006 Chevrolet Silverado 1500 SS
2005-2013 Chevrolet Silverado 1500 WT
2010-2013 Chevrolet Silverado 1500 XFE
2005 Chevrolet Silverado 1500 Z71 Off-Road
2005 Chevrolet Silverado 3500 Base
2005-2006 Chevrolet Silverado 3500 LS
2005-2006 Chevrolet Silverado 3500 LT
2006 Chevrolet Silverado 3500 WT
2005 GMC Sierra 1500 Base
2005-2013 GMC Sierra 1500 Denali
2005-2006, 2009-2013 GMC Sierra 1500 Hybrid
2006-2013 GMC Sierra 1500 SL
2005-2013 GMC Sierra 1500 SLE
2005-2013 GMC Sierra 1500 SLT
2005-2013 GMC Sierra 1500 WT
2005 GMC Sierra 2500 HD Base
2006 GMC Sierra 2500 HD SL
2005-2007 GMC Sierra 2500 HD SLE
2005-2007 GMC Sierra 2500 HD SLT
2005-2007 GMC Sierra 2500 HD WT
2005 GMC Sierra 3500 Base
2006 GMC Sierra 3500 SL
2005 GMC Sierra 3500 SLE
2005-2006 GMC Sierra 3500 SLT
2005-2006 GMC Sierra 3500 WT

Documents: Tech Data Sheet (PDF) | Plumbing Diagram (PDF) | DW400 Pump Tech Sheet (PDF)

Which trucks does this kit fit?

  • 2005-2013 Chevrolet Silverado and GMC Sierra with the 4.8L, 5.3L or 6.0L V8. Flex Fuel models are excluded and Crew Cab Long Bed trucks may not fit.

What is in the kit?

  • The DW400 pump module, a PTFE return plumbing kit with 8AN feed and 6AN return lines, a DWR1000 regulator and a fuel pressure gauge.

How much power does it support?

  • 750+ hp on pump gas.

What warranty does it carry?

  • A limited lifetime warranty.
