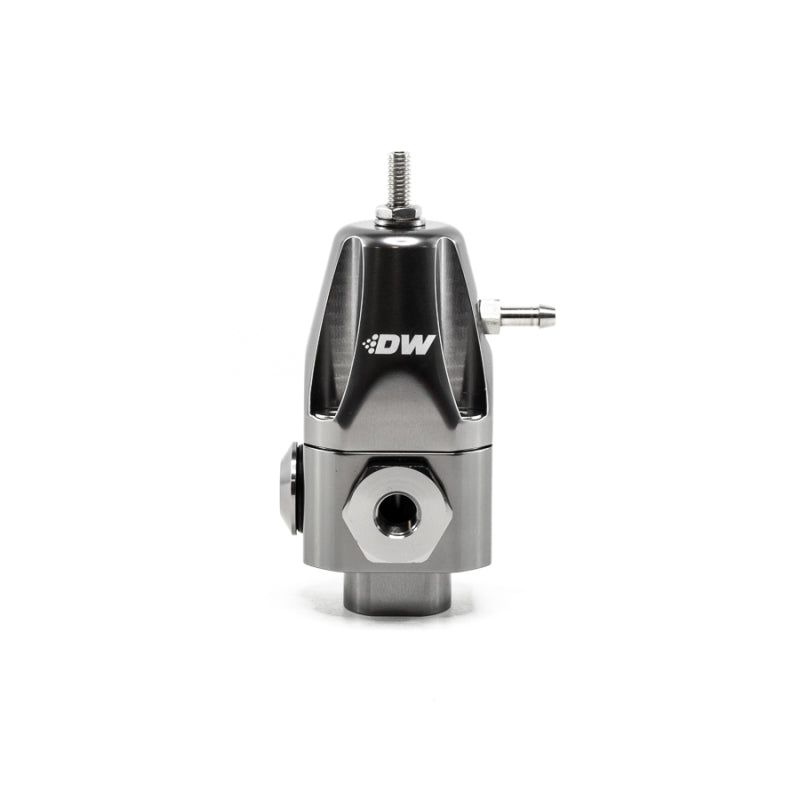

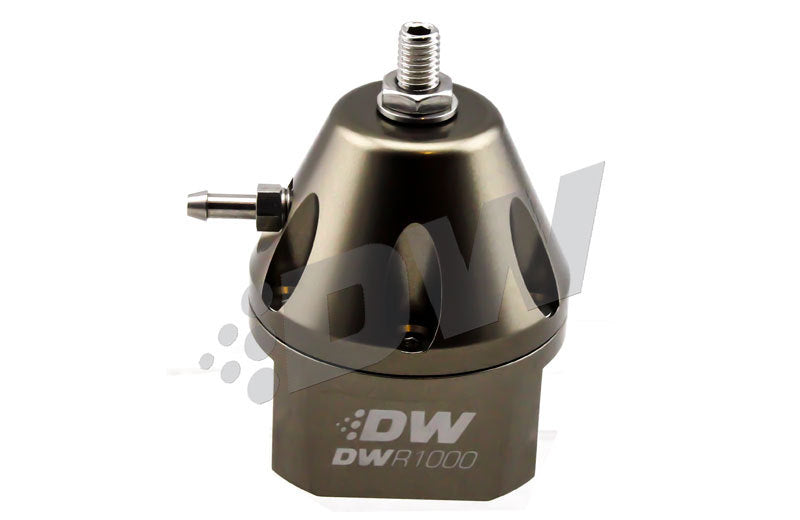

The DeatschWerks DWR1000 is an adjustable fuel pressure regulator engineered for 300-1000hp fuel systems, finished in titanium anodizing.
It features -6 ORB inlets and outlets, a 45mm Viton diaphragm with ball-bearing base-pressure adjustment, and a compact 60mm footprint with integrated 1/8 NPT gauge port and multi-position bracket. Stainless steel and anodized construction is ethanol- and methanol-compatible.
Specifications
| Brand | DeatschWerks |
| Series | DWR1000 |
| Type | Adjustable fuel pressure regulator |
| Power Rating | 300-1000 hp |
| Ports | -6 ORB inlet/outlet |
| Gauge Port | Integrated 1/8 NPT |
| Diaphragm | 45mm fiber-reinforced Viton |
| Body | Stainless steel + anodized aluminum, 60mm footprint, titanium finish |
| Fuel Compatibility | Gasoline, ethanol, methanol |
