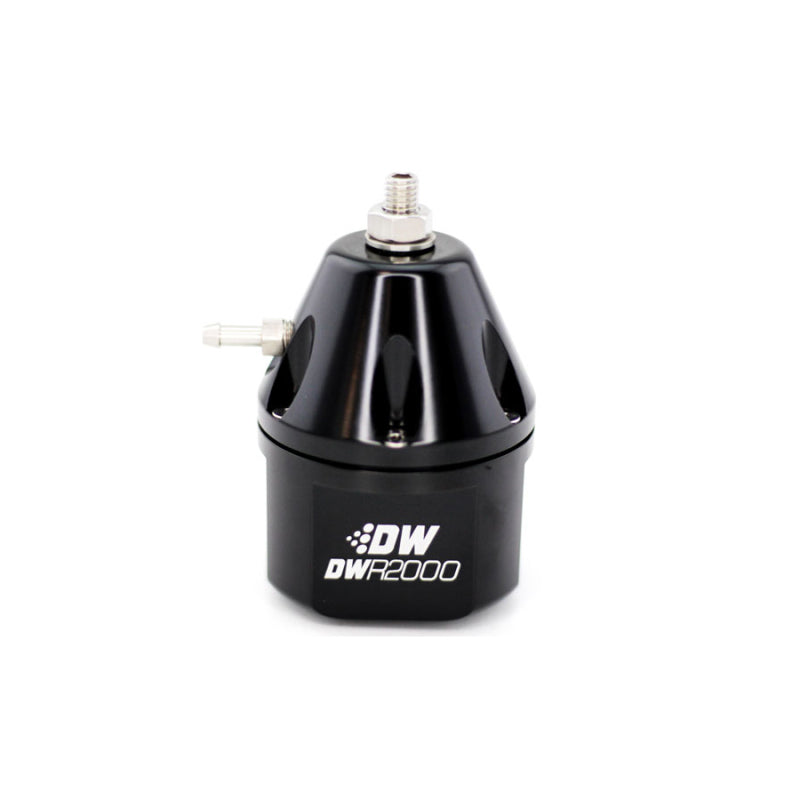

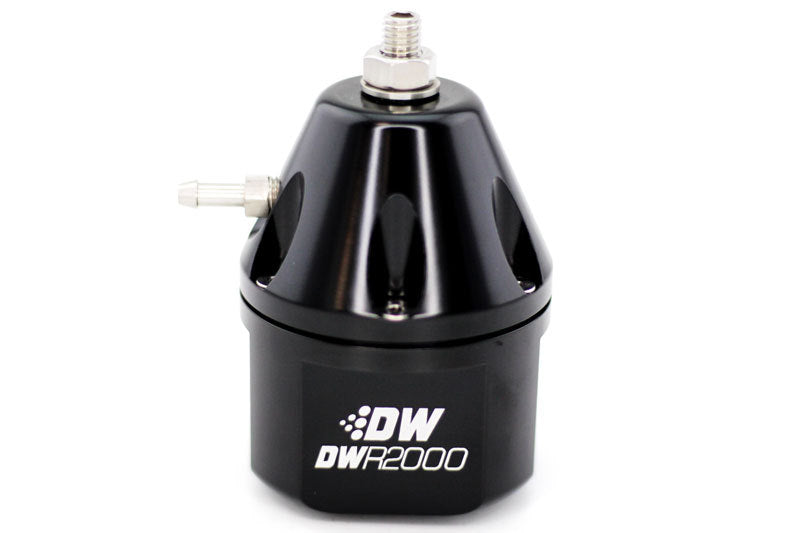

The DeatschWerks DWR2000 is a high-capacity adjustable fuel pressure regulator engineered for 750-2000hp fuel systems, finished in black anodizing.
With -10 ORB inlets and a -8 ORB outlet it handles up to 1000 lph of flow. Stainless steel and anodized construction is ethanol- and methanol-compatible, and a 45mm Viton diaphragm with ball-bearing adjustment provides smooth, accurate base-pressure tuning. Integrated 1/8 NPT gauge port and multi-position bracket included.
Specifications
| Brand |
DeatschWerks |
| Series |
DWR2000 |
| Type |
Adjustable fuel pressure regulator |
| Power Rating |
750-2000 hp |
| Flow |
Up to 1000 lph |
| Ports |
-10 ORB inlets, -8 ORB outlet |
| Gauge Port |
Integrated 1/8 NPT |
| Diaphragm |
45mm fiber-reinforced Viton |
| Body |
Stainless steel + anodized aluminum, black |
| Fuel Compatibility |
Gasoline, ethanol, methanol |
