DeatschWerks X3 Triple-Pump Fuel Module w/ Dual DW400 - Chevrolet Silverado / GMC Sierra 1500 2005-2018

DeatschWerks X3 Fuel Pump Module with Three DW400 Pumps - Chevrolet Silverado 1500 / GMC Sierra 1500 2005-2018

DeatschWerks SKU: DWK9-401-7016
Price
18% OFF
Only 3 Left – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

The DeatschWerks X3 Series module for 2005-2018 GM 1500 trucks holds three DW400 pumps in an anodized aluminum top hat, center section and bucket that drop into the OEM tank. It adds a return line while keeping the OE sensor, capacity and surge features, flows 1080 lph at 58 psi and supports over 2000 hp on pump gas with forced induction. The feed is -10AN ORB and the return -8AN ORB.

Specifications

Type In-tank fuel pump module
Series X3 Pump Module
Pumps 3 x DW400 (415 lph each)
Rated Flow 1080 lph (4.8 gpm) at 58 psi
Pump Type In-tank module, three pumps
Supports Over 2000 hp on pump gas (forced induction)
Current Draw 59 amps at 58 psi
Material Anodized aluminum
Feed / Return Fittings -10AN ORB feed, -8AN ORB return
Fuel Compatibility Ethanol compatible
Fitment 2004.5-2018 GM 1500 series trucks
Fitment Notes 1500 trucks only; may not fit Extended Cab Long Bed or extended range tank models; does not fit trucks built on the Suburban platform, including most 2500 and 3500 models; reuses the OEM fuel tank pressure sensor

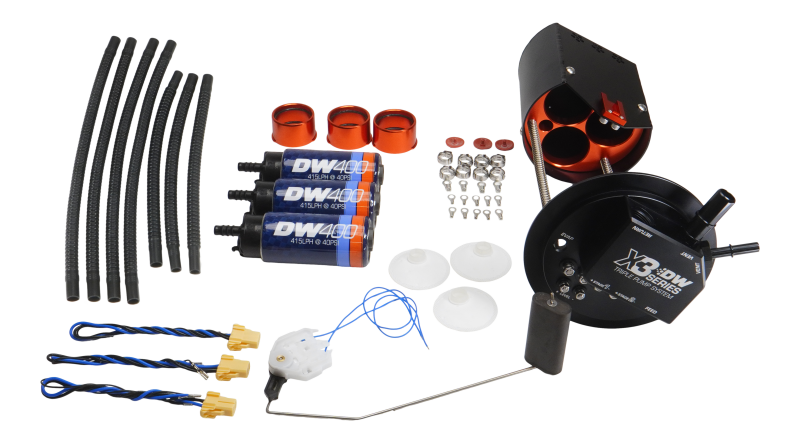

What's in the Box
  • Billet aluminum X3 module (hanger, bucket and top hat)
  • Three DW400 pumps with pre-filters and connectors
  • Check valves
  • Convoluted tubing and clamps
  • Ring terminals
  • Fuel level sensor
  • 39mm pump adapter sleeves
Hardwire Kit 10-gauge hardwire kit strongly recommended (FPHWK-10-HD; dual-pump FPHWK-10-DP), sold separately
Quantity 1
Warranty Limited lifetime
Part Number 9-401-7016

This part fits:

Year Make Model Submodel
2005 Chevrolet Silverado 1500 Base
2016-2018 Chevrolet Silverado 1500 Custom
2014-2018 Chevrolet Silverado 1500 High Country
2005-2006, 2009-2013 Chevrolet Silverado 1500 Hybrid
2005-2013, 2015-2018 Chevrolet Silverado 1500 LS
2005-2018 Chevrolet Silverado 1500 LT
2007-2018 Chevrolet Silverado 1500 LTZ
2005-2006 Chevrolet Silverado 1500 SS
2015-2018 Chevrolet Silverado 1500 SSV
2005-2018 Chevrolet Silverado 1500 WT
2010-2013 Chevrolet Silverado 1500 XFE
2005 Chevrolet Silverado 1500 Z71 Off-Road
2005, 2014-2018 GMC Sierra 1500 Base
2005-2018 GMC Sierra 1500 Denali
2005-2006, 2009-2013 GMC Sierra 1500 Hybrid
2006-2013 GMC Sierra 1500 SL
2005-2018 GMC Sierra 1500 SLE
2005-2018 GMC Sierra 1500 SLT
2005-2013 GMC Sierra 1500 WT
2010-2013 GMC Sierra 1500 XFE

Documents: Installation Instructions (PDF) | Tech Data Sheet (PDF)

Which trucks does the X3 module fit?

  • 2005-2018 Chevrolet Silverado 1500 and GMC Sierra 1500. Extended Cab Long Bed and extended range tank trucks may not fit, and Suburban-platform trucks, including most 2500 and 3500 models, do not fit.

How many pumps are included?

  • Three DW400 pumps.

How much power does it support?

  • Over 2000 hp on pump gas with forced induction.

Do I need a hardwire kit?

  • A 10-gauge hardwire kit is strongly recommended and sold separately.

What warranty does it carry?

  • A limited lifetime warranty.
