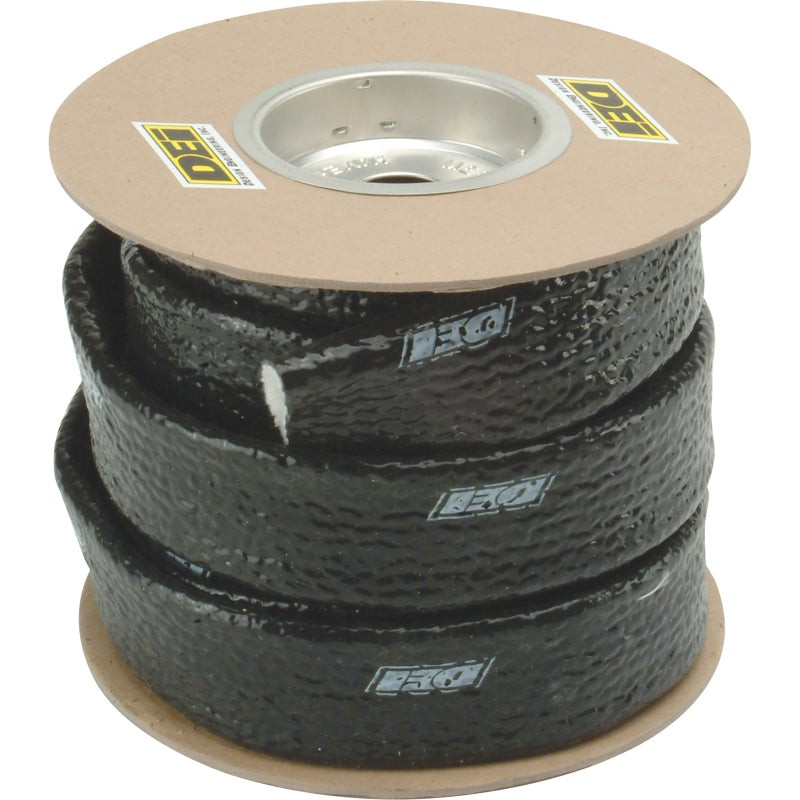

High-Temperature Resistant DEI Fire Sleeve - 3/4" I.D. x 25ft Spool

High-Temperature Resistant DEI Fire Sleeve - 3/4" I.D. x 25ft Spool

The DEI Fire Sleeve is your ultimate solution to protect fuel, transmission, and brake lines from heat and abrasions. Constructed from high-temperature resistant braided glass material and heavily coated with 100% iron oxide silicone rubber, this fireproof sleeve ensures maximum heat insulation and protection.

Key Features:

• High Heat Resistance: Withstands direct heat up to 500°F and intermittent heat up to 2000°F.
• Versatile Application: Ideal for insulating wiring, hoses, oil, brake, and transmission lines.
• Durable Construction: Made from a robust braided glass material that ensures long-lasting performance.
• Flexible Design: Can be used for bundling and protecting hoses and electrical wiring, providing a neat and organized appearance.
• Size: Measures 0.75 inches (3/4 inch) in diameter and comes in a convenient 25 feet spool.

Fitment Data:

This product is compatible with various sizes. Please refer to the following fitment chart:

• AN Size | Metal Tube O.D. | Thread Size
• 2 | 1/8 in. | 5/16-24 SAE
• 3 | 3/16 in. | 3/8-24 SAE
• 4 | 1/4 in. | 7/16-20 SAE
• 5 | 5/16 in. | 3/8-18 SAE
• 6 | 3/8 in. | 9/16-18 SAE
• 8 | 1/2 in. | 3/4-16 SAE
• 10 | 5/8 in. | 7/8-14 SAE
• 12 | 3/4 in. | 1-1/16-12 SAE
• 16 | 1 in. | 1-5/16-12 SAE
• 20 | 1-1/4 in. | 1-5/8-12 SAE
• 24 | 1-1/2 in. | 1-7/8-12 SAE
• 28 | 1-3/4 in. | 2-1/4-12 SAE
• 32 | 2 in. | 2-1/2-12 SAE

Application Chart:

• Part# | Name | Line Size*
• 10470 | 3/8 in. Fire Sleeve | 3AN, 4AN, 6AN**
• 10472 | 5/8 in. Fire Sleeve | 6AN, 8AN
• 10474 | 1 in. Fire Sleeve | 10AN, 12AN, 16AN**
• 5/8 in. Heater Hose | |
• 3/4 in. Heater Hose | |

*Braided Kevlar line was used in testing. A slight difference in size may occur with Braided Stainless Steel lines.

**Tight fit: If you have fittings on your line, consider ordering one size up. You can achieve between 1/16 in. and 1/8 in. stretch from our material, helping with installations involving existing fittings.
