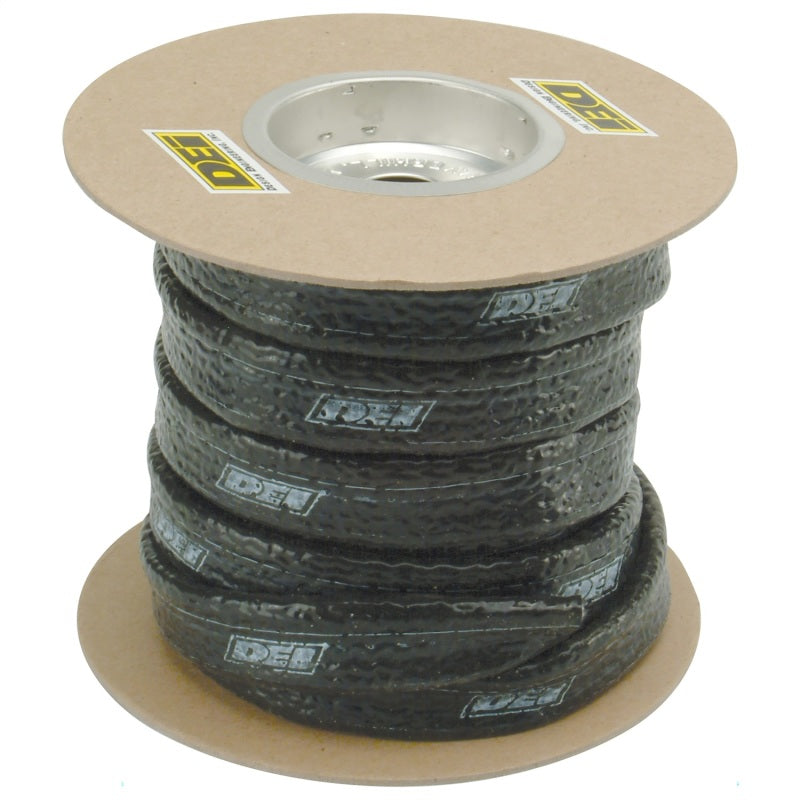

High-Temperature Resistant Fire Sleeve - 5/8" I.D. x 25ft Spool
DEI
SKU: DEI92472
High-Temperature Resistant Fire Sleeve - 5/8" I.D. x 25ft Spool
The High-Temperature Resistant Fire Sleeve is the ultimate solution for protecting your fuel, transmission, and brake lines from heat and abrasions. Designed specifically for durability and resilience, this fireproof sleeve is constructed from a high-temperature resistant braided glass material.
Key Features:
- Superior Heat Resistance: Withstands direct heat up to 500°F and intermittent heat up to 2000°F.
- Heavy-Duty Construction: Woven with a sleeve heavily coated with 100% iron oxide silicone rubber for enhanced protection.
- Versatile Application: Ideal for insulating wiring, hoses, oil, brakes, and transmission lines, as well as bundling electrical wiring.
- Generous Length: Comes in a 25-foot spool, allowing for multiple uses and custom applications.
- Size Specifications: Measures 0.625 inches (5/8 inch) in inner diameter.
Benefits:
- Protects critical lines from fire hazards, improving safety.
- Reduces the risk of heat-related damage, ensuring longevity and reliability.
- Easy to install and versatile for various applications, making it a practical choice for any project.
Fitment Data:
For your convenience, here is the fitment information:
AN Conversion Chart:
| AN Size | Metal Tube O.D. | Thread Size |
|---|---|---|
| 2 | 1/8 in. | 5/16 24 SAE |
| 3 | 3/16 in. | 3/8 24 SAE |
| 4 | 1/4 in. | 7/16 20 SAE |
| 5 | 5/16 in. | 3/8 18 SAE |
| 6 | 3/8 in. | 9/16 18 SAE |
| 8 | 1/2 in. | 3/4 16 SAE |
| 10 | 5/8 in. | 7/8 14 SAE |
| 12 | 3/4 in. | 1-1/16 12 SAE |
| 16 | 1 in. | 1-5/16 12 SAE |
| 20 | 1-1/4 in. | 1-5/8 12 SAE |
| 24 | 1-1/2 in. | 1-7/8 12 SAE |
| 28 | 1-3/4 in. | 2-1/4 12 SAE |
| 32 | 2 in. | 2-1/2 12 SAE |
Fire Sleeve Application Chart:
| Part# | Name | Line Size |
|---|---|---|
| 10470 | 3/8 in. Fire Sleeve | 3AN, 4AN, 6AN |
| 10472 | 5/8 in. Fire Sleeve | 6AN, 8AN |
| 10474 | 1 in. Fire Sleeve | 10AN, 12AN, 16AN |
*Note: Braided Kevlar line was used in testing. A slight size difference may occur with Braided Stainless Steel lines. For tight fits with fittings on your line, consider ordering one size up, as our material can stretch between 1/16 in. and 1/8 in.
