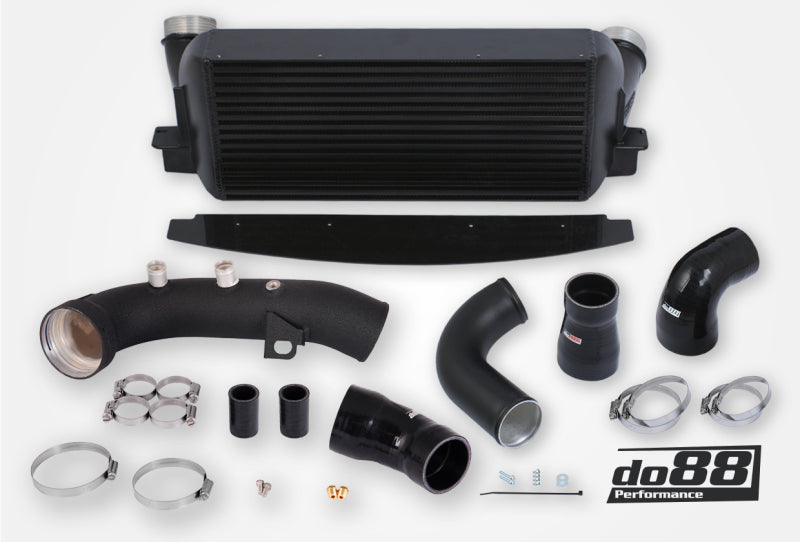

This do88 BigPack replaces the whole charge air path from the turbocharger outlet to the throttle body on the N55 with an all aluminum performance intercooler, an upgraded turbo outlet hose and a 3 inch (76 mm) charge pipe kit. Core volume reaches 15517 cm3 against 6933 cm3 stock, 124 percent more, with 1151 cm2 of frontal cooling area against 658 cm2. do88 recorded 498 CFM at 0.15 bar (2.18 psi) pressure drop against 354 CFM for the OE parts, a 15°C lower post intercooler air temperature and a 13 hp peak gain on a Stage 1 tuned 335xi. The turbo outlet hose uses a CNC machined adapter with silicone reinforced by four layers of high temperature aramid fabric, and the charge pipe carries two 1/8-27 NPT water/methanol injection connections with blanking plugs fitted.
| Type | All aluminum charge air intercooler, turbo outlet hose and charge pipe kit (do88 BigPack) |
| Material | Aluminum core with CAD designed, flow optimized cast end tanks |
| Core Volume | 15517 cm³ (OE 6933 cm³), 124% larger |
| Frontal Cooling Area | 1151 cm² (OE 658 cm²), 75% larger |
| Air Flow | 498 CFM at 0.15 bar / 2.18 psi pressure drop (OE 354 CFM), 41% higher |
| Intake Air Temperature | 43°C vs 58°C OE under matched conditions, 15°C lower |
| Power Gain | 13 hp peak, measured on a 335xi N55 with a Stage 1 tune |
| Charge Pipes | 3 in (76 mm) mandrel bent seamless aluminum with CNC machined throttle body flange |
| Water/Methanol Injection | Two 1/8-27 NPT connections on the charge pipe, blanking plugs supplied |
| Hose Material | Silicone with 4 layers of polyester/aramid reinforcement |
| Included | Intercooler, turbo outlet hose with CNC machined adapter, charge pipe kit, silicone hoses, clamps and hardware |
| Quantity | 1 (complete kit) |
| OEM Replacement | 17517540035, 13717590304, 754003504, 70376685, 70362303, 13717599294, 13717615026, 13717599293 |
| Part Number | BIG-290-S |
This part fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2010 | BMW | 1 Series | 135i, 135is (E82/E88) |
| 2011 | BMW | 1 Series | 135i, 135is (E82/E88) |
| 2012 | BMW | 1 Series | 135i, 135is (E82/E88) |
| 2013 | BMW | 1 Series | 135i, 135is (E82/E88) |
| 2010 | BMW | 3 Series | 335i, 335xi (E90/E91/E92/E93) |
| 2011 | BMW | 3 Series | 335i, 335xi (E90/E91/E92/E93) |
| 2012 | BMW | 3 Series | 335i, 335xi (E90/E91/E92/E93) |
| 2013 | BMW | 3 Series | 335i, 335xi (E90/E91/E92/E93) |
| 2012 | BMW | X1 | 35i (E84) |
| 2013 | BMW | X1 | 35i (E84) |
| 2014 | BMW | X1 | 35i (E84) |
| 2015 | BMW | X1 | 35i (E84) |
