do88 BigPack Intercooler Kit - Toyota GR Yaris (G16E) 2020-2026 - Black Hoses

do88 BigPack Intercooler Kit - Toyota GR Yaris (G16E) 2020-2026 - Black Hoses

do88 SKU: DOBBIG-350-S
Price
Only 1 Left – Order Soon
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

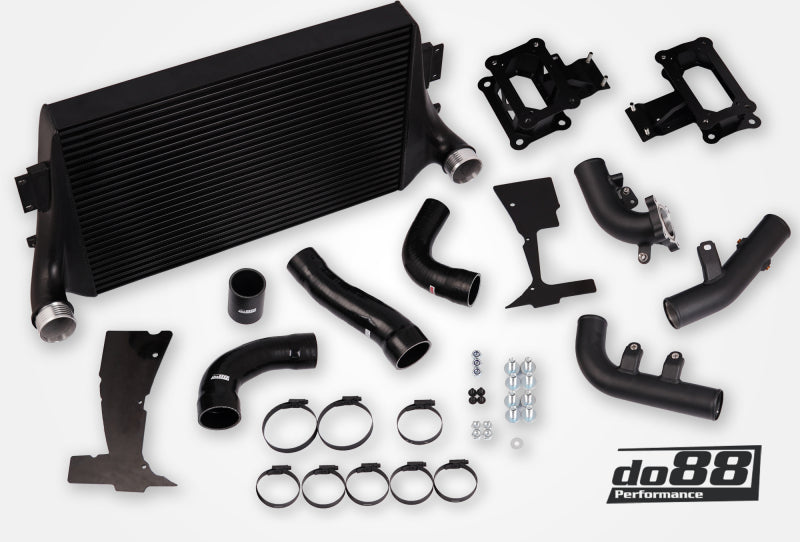

The do88 BigPack pairs the do88 Performance Intercooler with a complete charge pipe kit, replacing every charge air component between the turbo outlet and the throttle body. The all-aluminium intercooler carries a 13,971 cm³ core against 7,320 cm³ stock, 91% more volume, with 2,451 cm² of active cooling area versus 913 cm², and CAD designed cast end tanks feeding 63mm (2.5") connections in place of the 45mm originals. Mandrel bent seamless aluminium pipes in 2" and 2.125" diameters join through custom silicone hoses built from four layers of polyester and aramid reinforcement. do88 measured 284 CFM across the full system against 203 CFM stock at a 0.175 bar (2.54 psi) pressure drop, 40% more flow, and post intercooler air temperature fell from 50°C to 25°C under the same conditions. On a car running a TTE400 turbo and a Syvecs ECU, do88 recorded a 26 whp peak gain with the BigPack and the do88 turbo inlet fitted together.

Specifications

Type Intercooler and charge pipe kit (do88 BigPack)
Core Volume 13,971 cm³ (91% larger than OE 7,320 cm³)
Active Cooling Area 2,451 cm² (168% larger than OE 913 cm²)
Connections 63mm (2.5") inlet and outlet, versus 45mm OE
Pipe Size 2" and 2.125" mandrel bent seamless aluminium
Hoses Black silicone, four layers of polyester and aramid reinforcement
Airflow 284 CFM at 0.175 bar pressure drop, versus 203 CFM OE
Charge Air Temperature 25°C versus 50°C OE under the same test conditions
Material Aluminium
Coverage Turbo outlet to throttle body
Finish Black
Quantity 1
Part Number BIG-350-S

Documents: Installation Instructions (PDF)

This part fits:

Year Make Model Submodel
2020 Toyota GR Yaris All
2021 Toyota GR Yaris All
2022 Toyota GR Yaris All
2023 Toyota GR Yaris All
2024 Toyota GR Yaris All
2025 Toyota GR Yaris All
2026 Toyota GR Yaris All
