do88 BigPack Intercooler Kit with Inlet Hoses - Porsche 911 Turbo / Turbo S (991.2) 2015-2020

do88 BigPack Intercooler Kit with Inlet Hoses - Porsche 911 Turbo / Turbo S (991.2) 2015-2020

do88 SKU: DOBBIG-200SV-GEN2-179
Price
On Backorder – Order Now or Contact Us for Availability
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

This do88 BigPack fits the MERA motorsport grade intercoolers, the do88 high flow Y-pipe and the do88 inlet hoses to the 991.2 charge air system in one package. The cores are high density Garrett bar and plate units behind 3D freeform cast end tanks, with custom carbon fiber ambient air guides sealed to the body so the cooling air is forced through the core. do88 measured 835 CFM at 0.175 bar (2.54 psi) pressure drop against 607 CFM for the OE system, 37 percent higher, and a 17°C peak drop in inlet air temperature over five consecutive full throttle runs on a Stage 1 car. The Y-pipe is 2.5 inch (63 mm) mandrel bent aluminum on a cast collector and carries two 1/8-27 NPT connections for water/methanol injection, supplied with blanking plugs. Each intercooler weighs 8.5 kg against 3.10 kg for the OE unit, and the 70 mm intercooler connections and CFD tested hoses remove the OE restrictions.

Specifications

Type Charge air intercooler pair, cast Y-pipe and inlet hose kit (do88 BigPack MERA)
Material Garrett bar and plate core, 3D freeform cast aluminum end tanks, carbon fiber ambient air guides
Air Flow 835 CFM at 0.175 bar / 2.54 psi pressure drop (OE 607 CFM), 37% higher
Intake Air Temperature Peak 17°C lower than OE over five consecutive full throttle runs
Inlet/Outlet 70 mm (2.75 in) intercooler connections
Y-Pipe 2.5 in (63 mm) mandrel bent aluminum with cast collector
Water/Methanol Injection Two 1/8-27 NPT connections on the Y-pipe, blanking plugs supplied
Weight 8.5 kg (18.74 lb) per intercooler, OE 3.10 kg (6.83 lb)
Hose Material Silicone, turbo outlet hoses rated to 240°C (464°F) continuous

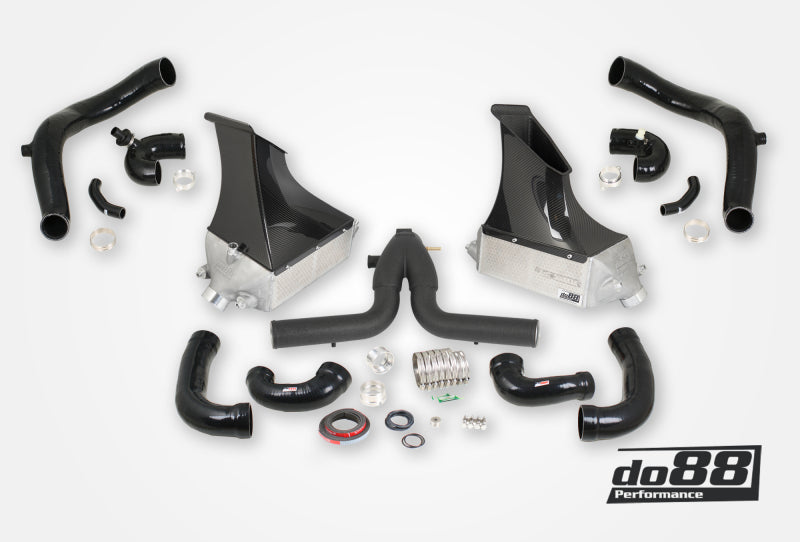

Included 2 MERA intercoolers, Y-pipe, inlet hoses, carbon fiber air guides, silicone hoses, clamps and fitting hardware
Configuration With inlet hoses
Quantity 1 (complete kit)
OEM Replacement 99111063972, 99111063973, 99111064072, 99111064073, 99111005070, 99111064672, 99711064773
Part Number BIG-200SV-Gen2-179

Documents: Installation Instructions (PDF)

This part fits:

Year Make Model Submodel
2015 Porsche 911 Turbo, Turbo S (991.2)
2016 Porsche 911 Turbo, Turbo S (991.2)
2017 Porsche 911 Turbo, Turbo S (991.2)
2018 Porsche 911 Turbo, Turbo S (991.2)
2019 Porsche 911 Turbo, Turbo S (991.2)
2020 Porsche 911 Turbo, Turbo S (991.2)
