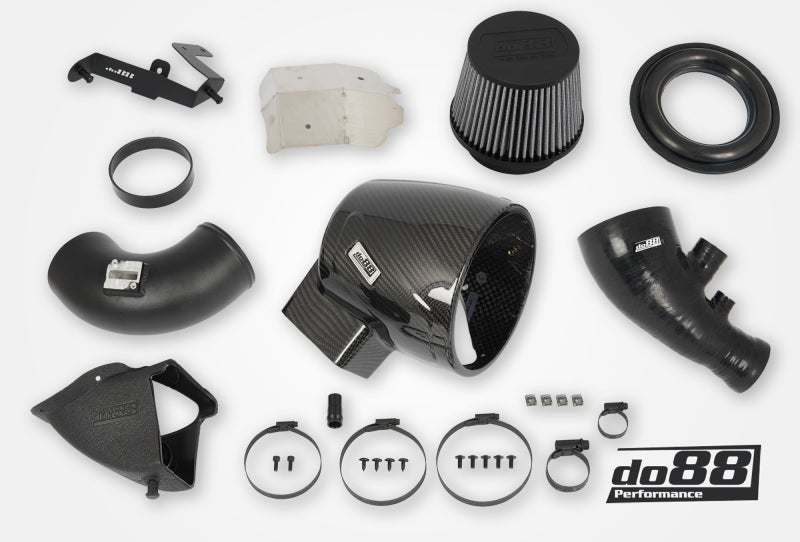

This is do88's fully sealed intake system for the B46 and B48 four cylinder in the G20 and G21. The factory airbox is replaced by a fully enclosed 7 inch airbox with a heat shield and a secondary air feed, which matters because the intake sits directly alongside the exhaust manifold and heat soaks quickly. In place of the stock intake hose do88 fit a 102mm (4 in) mandrel bent aluminium pipe joined by a custom silicone hose, and a large 105mm cotton gauze filter that is washable and reusable. do88 measure a 23% airflow increase over the factory intake. The filter ships without oil, so cotton filter oil is recommended for dusty conditions.
Specifications
| Type |
Sealed cold air intake system |
| Filter Media |
Densely knitted cotton gauze, 105mm, washable and reusable, supplied unoiled |
| Intake Pipe |
102mm (4 in) mandrel bent aluminium with custom silicone hose |
| Airbox |
Fully enclosed 7 in airbox with heat shield and secondary air feed |
| Airflow Increase |
23% over OE |
| Quantity |
1 |
| OEM Replacement |
13718580424, 13718580428, 13718656981 |
| Part Number |
LF-250 |
Documents: Installation Instructions (PDF)
This part fits:
| Year |
Make |
Model |
Submodel |
| 2018 |
BMW |
3 Series |
320i / 320i xDrive / 330e / 330i / 330i xDrive (G20/G21) |
| 2019 |
BMW |
3 Series |
320i / 320i xDrive / 330e / 330i / 330i xDrive (G20/G21) |
| 2020 |
BMW |
3 Series |
320i / 320i xDrive / 330e / 330i / 330i xDrive (G20/G21) |
| 2021 |
BMW |
3 Series |
320i / 320i xDrive / 330e / 330i / 330i xDrive (G20/G21) |
| 2022 |
BMW |
3 Series |
320i / 320i xDrive / 330e / 330i / 330i xDrive (G20/G21) |
| 2023 |
BMW |
3 Series |
320i / 320i xDrive / 330e / 330i / 330i xDrive (G20/G21) |
| 2024 |
BMW |
3 Series |
320i / 320i xDrive / 330e / 330i / 330i xDrive (G20/G21) |
| 2025 |
BMW |
3 Series |
320i / 320i xDrive / 330e / 330i / 330i xDrive (G20/G21) |
| 2026 |
BMW |
3 Series |
320i / 320i xDrive / 330e / 330i / 330i xDrive (G20/G21) |
