Details
Branddo88
SKUDOBICM-270-DO88
Manufacturer Part NumberICM-270-DO88
Product Information

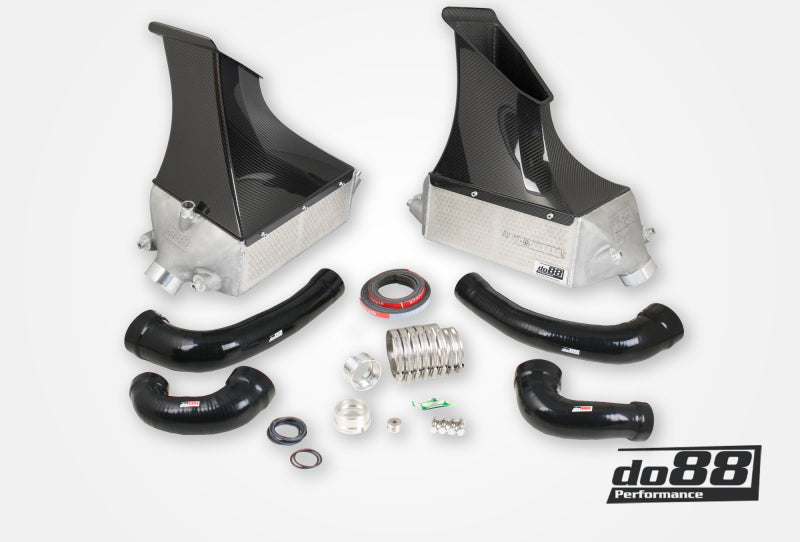

Upgrade side-mount intercoolers for the 991 Turbo, built around freeform cast aluminum end tanks that spread charge air across the full core. Machined 70 mm (2 3/4 in) connections and CFD-developed silicone hoses remove the OE restrictions, with the turbo-outlet hoses in a high-temp compound rated to 240°C (464°F) continuous. Custom carbon fiber ambient air guides seal to the body so cooling air cannot bypass the core. do88 measured 726 CFM at 0.175 bar (2.54 psi) pressure drop against 607 CFM for the OE setup, a 19 percent gain, and a 17°C (30.6°F) lower inlet air temperature over five consecutive full-throttle runs in a Stage 1 tuned 991. Each intercooler weighs 8.5 kg (18.74 lb). This version ships with the hose set for the do88 63 mm Y-pipe.
Specifications
| Type |
Upgrade intercooler kit (do88 MERA) |
| Material |
Aluminum core and cast aluminum end tanks |
| Inlet/Outlet |
70 mm (2 3/4 in) machined connections |
| Piping Compatibility |
do88 63 mm Y-pipe |
| Airflow |
726 CFM at 0.175 bar (2.54 psi) pressure drop, 19% over OE |
| Charge Air Temperature |
40°C (104°F) vs 57°C (134.6°F) OE, 17°C lower |
| Weight |
8.5 kg (18.74 lb) per intercooler |
| Hose Material |
Silicone, turbo-outlet hoses rated to 240°C (464°F) continuous |
| Included |
Two intercoolers, carbon fiber ambient air guides, silicone hoses, clamps and installation hardware |
| Quantity |
1 kit (2 intercoolers) |
| Part Number |
ICM-270-DO88 |
| OEM Replacement |
99111063972, 99111063973, 99111064072, 99111064073 |
Documents: Installation Instructions (PDF)
This part fits:
| Year |
Make |
Model |
Submodel |
| 2013-2019 |
Porsche |
911 (991) |
Turbo |
| 2013-2019 |
Porsche |
911 (991) |
Turbo S |
