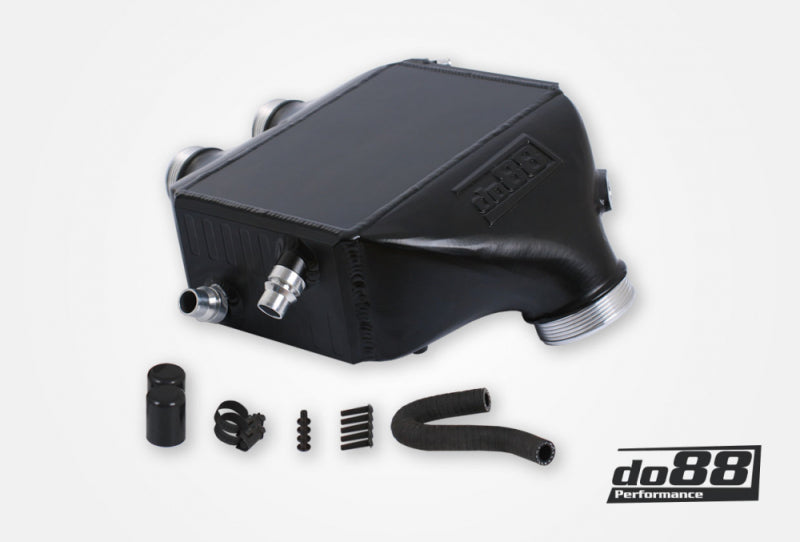

This do88 performance intercooler upgrades the water-to-air chargecooler on the S55-powered BMW M2 Competition, M3 and M4. It uses a bar-and-plate aluminum core with TIG-welded cast aluminum end tanks and a dual-pass water circuit, replacing the OEM single-pass design. Core volume grows to 5,657 cm3, roughly 85 percent more than stock, with high-density offset fins on both the air and water sides. On a BootMod3 Stage 1 tune do88 measured up to 25 hp more mid-range, 13 hp more peak and 52 Nm more torque, with post-intercooler air roughly 9 degrees C cooler and 16 percent lower pressure drop. It is a drop-in fit requiring no modifications.
Specifications
| Type | Water-to-air performance intercooler / chargecooler (do88 ICM-320) |
| Core | Bar-and-plate aluminum, TIG-welded cast end tanks, dual-pass |
| Core Volume | 5,657 cm3 (approx. 85% larger than OEM) |
| Airflow | 298 CFM at 0.025 bar pressure drop |
| Engine | S55 |
| OEM Replacement | 17517846235 |
| Part Number | ICM-320 |
This part fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2019-2020 | BMW | M2 | Competition (F87) |
| 2015-2018 | BMW | M3 | F80 |
| 2015-2020 | BMW | M4 | F82/F83 |
