Details
Branddo88
SKUDOBDO88-KIT85S
Manufacturer Part NumberDO88-KIT85S
Product Information

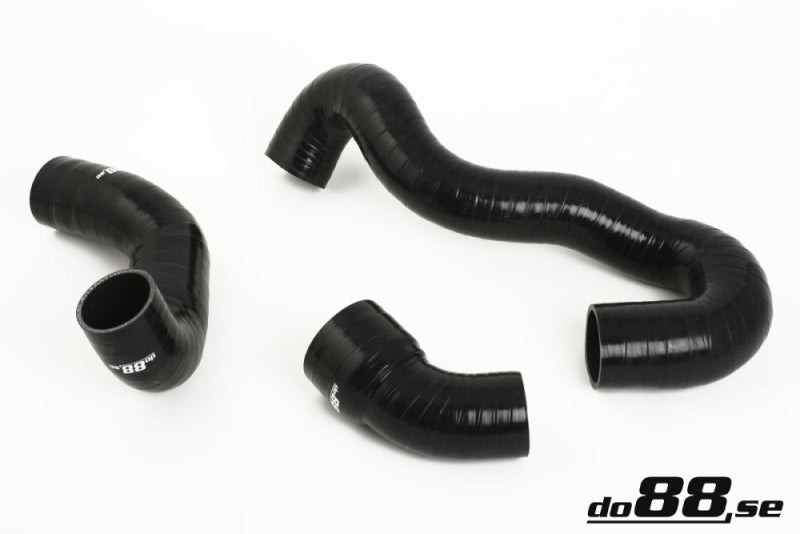

This kit replaces the complete charge air hose run on the Saab 9-5 1.9 TiD in one go, covering the turbo outlet hose, the intercooler outlet hose and the intake manifold hose, in the routing used with the large 85Ah battery. Each hose is built entirely from silicone with three to five reinforcement layers depending on inner diameter, so it holds boost pressure and heat far longer than the original rubber part, which typically hardens and cracks with age. This kit adds an inner layer of fluorosilicone rubber for extra chemical resistance and service life. It replaces Saab part numbers 12755947 and 12762043. Matching do88 hose clamp kits are sold separately.
Specifications
| Type |
Complete silicone charge-air (pressure) hose kit |
| Included |
Turbo outlet hose, intercooler outlet hose, intake manifold hose |
| Hose Count |
3 |
| Material |
Multi-layer silicone with fluorosilicone inner liner |
| Construction |
Three to five reinforcement layers depending on inner diameter |
| Colour |
Black |
| Engine Code |
Z19DTH |
| Fitment Note |
Cars with the large 85Ah battery |
| Quantity |
1 kit (3 hoses) |
| Part Number |
do88-KIT85S |
| OEM Replacement |
12755947, 12762043 |
This part fits:
| Year |
Make |
Model |
Submodel |
| 2006 |
Saab |
9-5 |
1.9 TiD |
| 2007 |
Saab |
9-5 |
1.9 TiD |
| 2008 |
Saab |
9-5 |
1.9 TiD |
| 2009 |
Saab |
9-5 |
1.9 TiD |
| 2010 |
Saab |
9-5 |
1.9 TiD |
