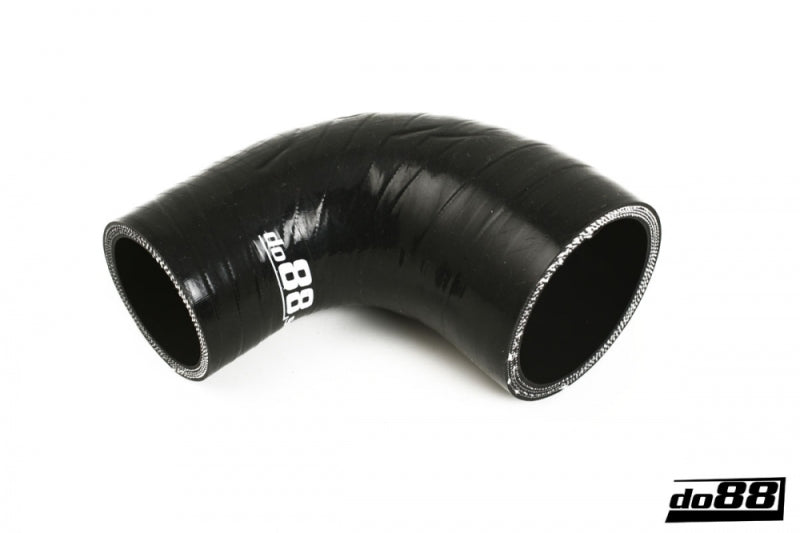

The charge-air hose between the turbo compressor outlet and the intercooler pipework on the 1.9 TiD 9-3, made in high quality silicone with three to five armoured layers depending on inner diameter and an inner layer of top quality fluorosilicone rubber for extended chemical resistance against oil mist and diesel soot. The original rubber hose softens and cracks with age and heat. It replaces OEM 55354826, 13289474, 55352734 and 3150269, and fits both the 118hp Z19DT and the 148hp Z19DTH.
Specifications
| Type |
Silicone turbo outlet (charge-air) hose |
| Material |
Silicone with fluorosilicone rubber inner layer, three to five reinforcement layers |
| Position |
Turbo compressor outlet |
| Finish |
Black |
| Quantity |
1 |
| Pairs With |
do88-kit5 hose clamp kit (sold separately) |
| OEM Replacement |
55354826, 13289474, 55352734, 3150269 |
| Part Number |
do88-kit83-1S |
This part fits:
| Year |
Make |
Model |
Submodel |
| 2004-2011 |
SAAB |
9-3 |
1.9 TiD 118hp (Z19DT) |
| 2004-2011 |
SAAB |
9-3 |
1.9 TiD 148hp (Z19DTH) |
