do88 Standard Bumper Intercooler Kit - Porsche 911 Carrera (992.1) 2019-2024

do88 Standard Bumper Intercooler Kit - Porsche 911 Carrera (992.1) 2019-2024

do88 SKU: DOBICM-360-C
Price
On Backorder – Order Now or Contact Us for Availability
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check
Shipping calculated at checkout.

The 992 combines its intercooler and Y pipe into one assembly under the rear wing, and this kit replaces it with two Garrett Motorsport bar and plate cores joined by a central outlet tank feeding the inlet manifold. The cores measure 105 mm (4 in) thick, the most the bay allows, and thin cast aluminium end tanks developed from a 3D scan and CFD analysis carry machined 70 mm (2.75 in) connections plus two 1/8 NPT bungs on the outlet tank for water/methanol injection. Vacuum infused prepreg carbon fibre ambient air guides duct decklid air through the cores and seal against them with rubber strips so cooling air cannot escape past the core. do88 measures 919 CFM at a 0.175 bar (2.54 psi) pressure drop against 820 CFM for the OE assembly, 12% higher, with peak inlet air temperature of 30°C against 39°C across five back to back full throttle runs. This version carries the lower carbon ducts for the standard rear bumper.

Specifications

Type Air-to-air intercooler kit with carbon fibre ambient air guides
Core Bar and plate, Garrett Motorsport; two cores joined by a central outlet tank
Core Thickness 105 mm (4 in)
Material Cast aluminium end tanks; vacuum infused prepreg carbon fibre air guides
Connections Machined 70 mm (2.75 in); 2x 1/8 NPT bungs on the outlet tank for water/methanol injection
Airflow 919 CFM at 0.175 bar (2.54 psi) pressure drop vs 820 CFM OE, 12% higher
Charge Air Temperature 30°C (86°F) peak vs 39°C (102.2°F) OE
Bumper Standard rear bumper. Cars with the SportDesign, GTS Package or Dakar rear bumper (option codes 2D1, 2D4, 2D5, VM2, VM3) take ICM-360-SD instead.

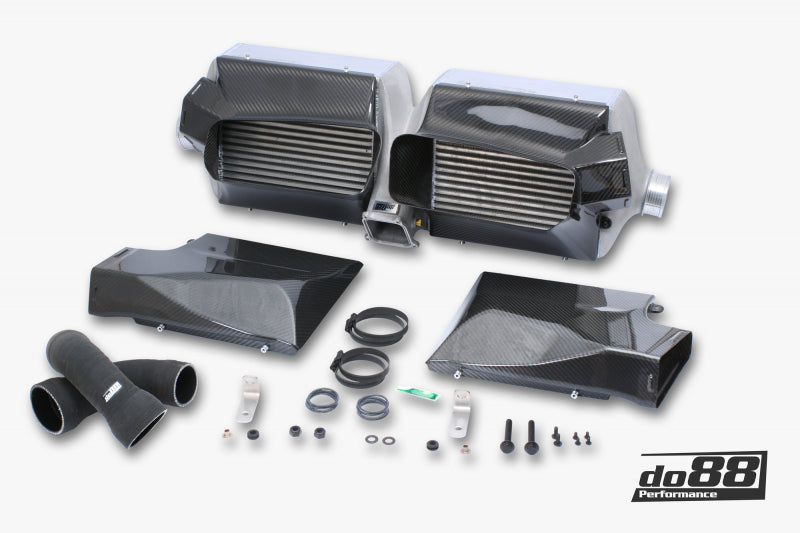

Kit Contents Intercooler assembly, 2 upper carbon fibre air guides, 2 lower carbon fibre air guides for the standard bumper, silicone inlet hoses for OE and do88 pipes, 2 hose clamps 60-80 mm, 2 hose clamps 50-70 mm, angled brackets, rubber grommets, metal sleeves, 8 O-rings 50 mm, screws and nuts, thread locker, 224 cm adhesive sealing strip
Fitment Notes Where the car has the noise generator plumbed to the intercooler outlet, that system is disconnected and no longer used.
OEM Replacement 992145805F, 992145816, 992145817, 992145928C, 992145928B, 992145927C, 992145927B, 992145737, 992145738
Warranty 12 months against material defects and manufacturing errors
Quantity 1 kit
Part Number ICM-360-C

Documents: Installation Instructions (PDF)

This part fits:

Year Make Model Submodel
2019-2024 Porsche 911 (992.1) Carrera
2019-2024 Porsche 911 (992.1) Carrera 4
2019-2024 Porsche 911 (992.1) Carrera S
2019-2024 Porsche 911 (992.1) Carrera 4S
2019-2024 Porsche 911 (992.1) Carrera GTS
2019-2024 Porsche 911 (992.1) Carrera 4 GTS
2019-2024 Porsche 911 (992.1) Dakar
