Driveshaft Shop Level 3 500HP Axle & Hub Kit - VW VR6 5-Speed 1993-1998
Driveshaft Shop Level 3 500HP Axle & Hub Kit - VW VR6 5-Speed 1993-1998, image 2
Driveshaft Shop Level 3 500HP Axle & Hub Kit - VW VR6 5-Speed 1993-1998
Driveshaft Shop Level 3 500HP Axle & Hub Kit - VW VR6 5-Speed 1993-1998, image 2

Driveshaft Shop Level 3 500HP Axle & Hub Kit - VW VR6 5-Speed 1993-1998

Driveshaft Shop SKU: DSS510484
Price
On Backorder – Order Now or Contact Us for Availability
Shipping calculated at checkout.
Make sure this fits your vehicle Select your vehicle to confirm fitment before you order. Check

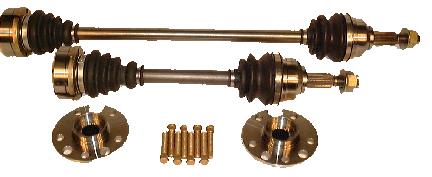

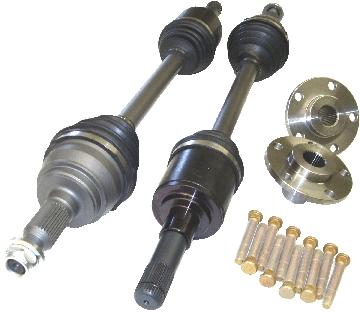

The Driveshaft Shop Level 3 axle and hub kit is rated to 500 horsepower and replaces both front axle assemblies along with their wheel hubs. Each bar is aircraft-quality chromoly, heat treated and double tempered, the inner CV cage is chromoly, and the outer CV joint runs roughly 40 percent larger than the factory Volkswagen joint. The custom hubs come with extended 12mm ARP wheel studs and accept the factory ABS ring, so the stock sensor setup carries over. Level 3 sits above the 400 horsepower Level 2.9 axles and below the 750 horsepower Level 5 kit in the Driveshaft Shop range.

Specifications

Type Front axle and hub kit (Driveshaft Shop Level 3)
Position Front, left and right
Power Rating 500 horsepower
Material Aircraft-quality chromoly axle bars, heat treated and double tempered; chromoly inner CV cage
CV Joints Outer CV joint approximately 40 percent larger than the factory Volkswagen joint
Included Left and right axle assemblies, custom hubs, extended 12mm ARP wheel studs; hubs accept the factory ABS ring
Transmission 02A 5-speed manual, VR6
Quantity 1 kit (pair of axles with hubs)
Part Number 510484 (Driveshaft Shop part code VW63)
Warranty 1 year

This part fits:

Year Make Model Submodel
1993-1994 Volkswagen Corrado SLC
1995-1998 Volkswagen Golf GTI VR6
1994-1998 Volkswagen Jetta GLX
